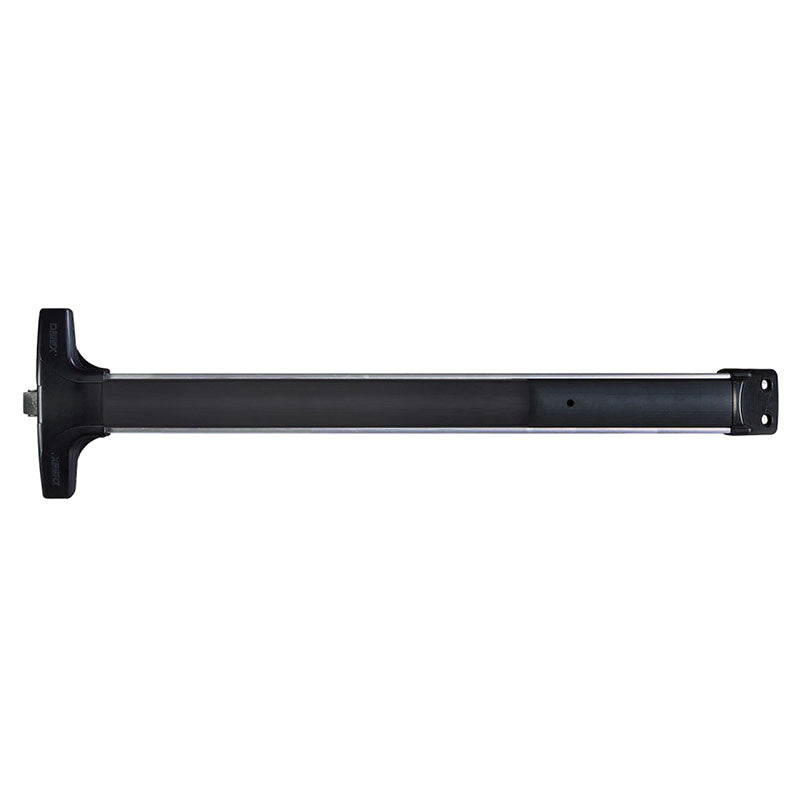

The Detex V40 HD 628 99 48 is a Wide Stile Rim Exit Device that is 48" long, includes a 99 Surface Strike, has Hex Dogging, is Non-Handed and comes in a Satin Aluminum Clear Anodized finish.

V40 Rim Exit Device
The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits

• Priced to be the best value for durable and attractive loss-prevention panic hardware
• Angled end cap deflects damage away from the device
• Minimal door prep saves time and money
• Patented mounting plate and strike locator replaces paper templates
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing the device from the door
• Fast and easy installation saves time and money

Features

• Covers a 161-door prep
• Stainless steel, 3/4" deadlocking Pullman-type latch bolt
• Non-handed
• Field sizeable
• 1/8 turn hex key dogging
• Ribbed aluminum rail extrusion
• High-impact ABS and anodized surfaces
• Withstands over 1400 pounds of static pull force for greater security
• The modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims are available
