Description

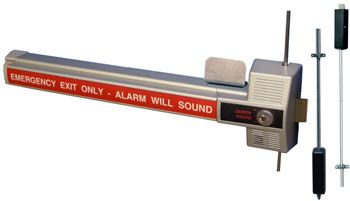

DETEX ECL-230X-TDB 3-Point Deadbolt Exit Control Lock (Top Bolt, Dead Bolt & Bottom Bolt)
The ECL-230X-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits.
Features
- Attack resistant design for maximum holding force
- Proven durability and reliability at a reasonable price
- Reduces employee and customer theft
- 3-point, 1" throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike
- Saw resistant dead bolts
- Corrosion resistant alloy lock body
- 100 decibel alarm, powered by 9-volt battery (included)
- Surface/flush reversible strike
- Easy to install
- Time tested construction resists attack from the inside
- Easy to see if the lights go out
- Straight forward operation that everyone understands
- Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
- Saw resistant dead bolt
- Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
- Durable steel plate with photo luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
- Locking and unlocking the dead bolt always arms and disarms the alarm
- Resetting the alarm can only be accomplished with a control key
- Gray Finish (Std.)
- English Push Plate Sign (Std.)
Specifications:
Door Types: | Wood, Hollow Metal or Aluminum |
Door Thickness: | Fits standard 1-3/4" - 2-1/4" |
Dimensions: | One size fits 36”-48” doors for code compliant acceptance |
Trim Function: | Exit Control Hardware |
Handing: | Non-Handed |
Power: | 9-volt battery (included) |
Push Bar: | 24” ECL-230X |
Sound Pressure: | 100 decibel alarm |
Compliances: | Meets ADA requirements |
Warrenty: | 10 Year Limited Manufacturers Warranty |
Certifications:
Fire Rated: |
UL Listed |
CA State Fire Marshal: |
4140-0127:102 |
ANSI/BHMA: |
Requirements for all Building Codes |
