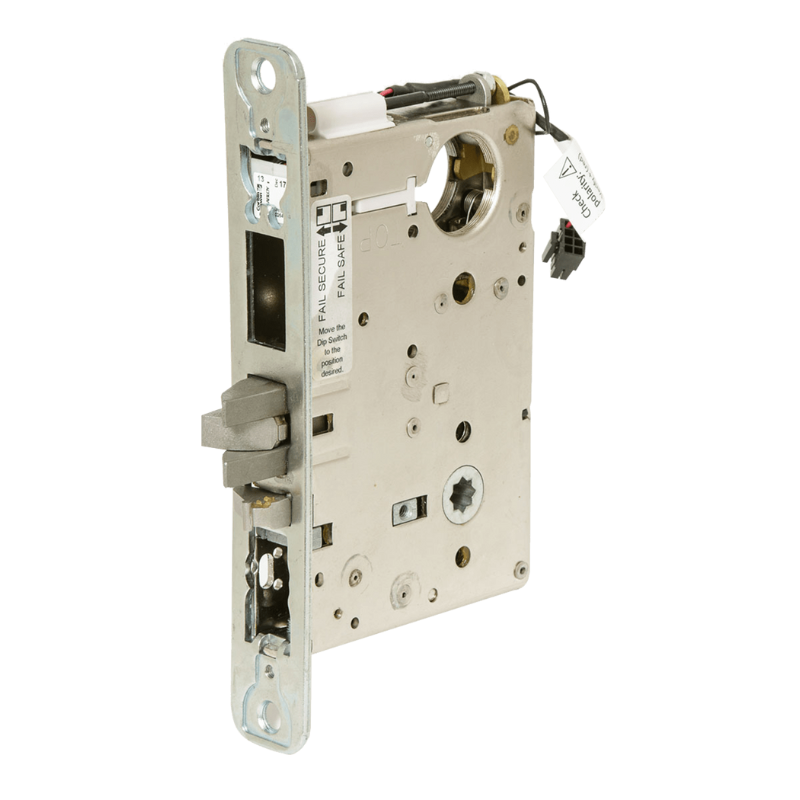

Corbin Russwin ML20932-LL-626-SEC Fail Secure Electrified Mortise Lock Body Only, Both Grip Locked when Not Energized, Double Cylinder Override, Satin Chrome Finish

  • SKU: ML20932LL626SEC
Corbin Russwin ML20932-LL-626-SEC Fail Secure Electrified Mortise Lock Body Only, Both Grip Locked when Not Energized, Double Cylinder Override, Satin Chrome Finish
Corbin Russwin ML20932-LL-626-SEC Fail Secure Electrified Mortise Lock Body Only, Both Grip Locked when Not Energized, Double Cylinder Override, Satin Chrome Finish
All CORBIN RUSSWIN Products

Corbin Russwin ML20932-LL-626-SEC Fail Secure Electrified Mortise Lock Body Only, Both Grip Locked when Not Energized, Double Cylinder Override, Satin Chrome Finish

  • SKU: ML20932LL626SEC
Dhs. 1,850.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing Guide:
handing chart image

Corbin Russwin ML20932-LL-626 SEC, Fail Safe Electrified Mortise Lock, Both Grip Locked when Not Energized, Double Cylinder Override, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Corbin Russwin ML20932-LL-626-SEC is a Grade 1 fail-secure electrified mortise lock featuring both grips locked when de-energized and equipped with a double cylinder override. This lever x lever model is field reversible and finished in US26D satin chrome, offering high-security performance for demanding environments.

ML20932 x SEC

  • Latchbolt by grip either side only when lock is energized.
  • Both grips locked when lock is not energized.
  • Latchbolt by key inside or outside when lock is not energized.
  • Auxiliary latch deadlocks latchbolt
  • Locked when power is off and unlocked when the power is on.
Manufacturer Corbin Russwin
SKU ML20932 LL 626 SEC
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 32xSEC-Fail Secure


Product Cut Sheet

Cylinder Mortise Handing Chart
