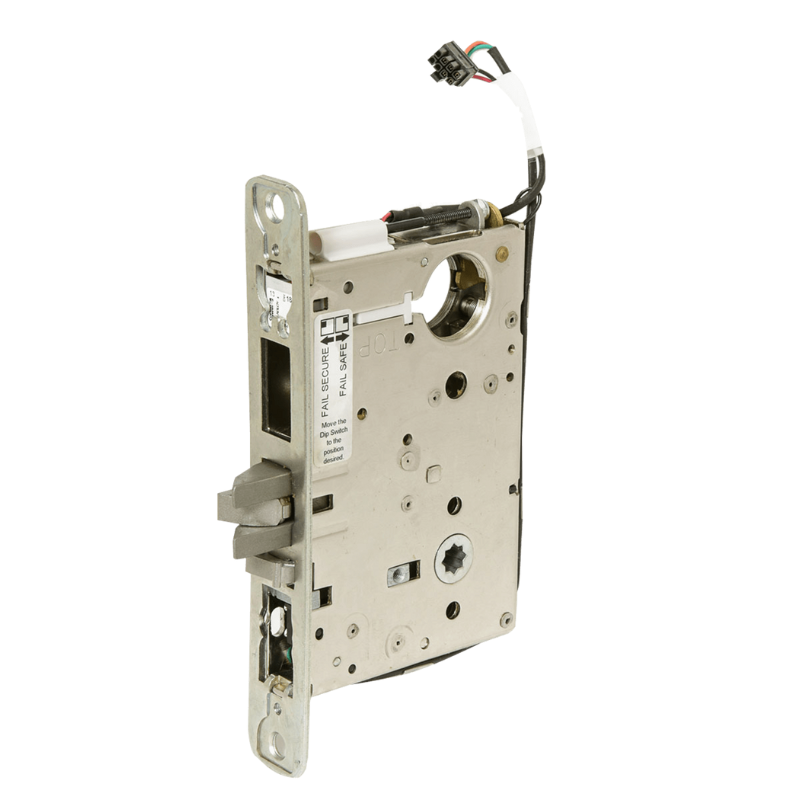

Corbin Russwin ML20906-LL-626-SEC-M105 Fail Secure Electrified Mortise Lock Body Only, Outside Grip Locked when Not Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20906LL626SECM105

Corbin Russwin ML20906-LL-626-SEC-M105 Fail Secure Electrified Mortise Lock Body Only, Outside Grip Locked when Not Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20906LL626SECM105
Sale priceDhs. 2,856.00/ea
Available (2 Weeks)
2 Weeks Lead Time

Corbin Russwin ML20906-LL-626-SEC-M105, Fail Secure Electrified Mortise Lock, Outside Grip Locked when Not Energized, Outside Cylinder Override, Security Monitor, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Corbin Russwin ML20906-LL-626-SEC-M105 is a fail-secure electrified mortise lock designed with an outside grip that locks when de-energized. It features an outside cylinder override and security monitoring, supplied without a cylinder. This lever-by-lever lock body is field reversible, meets Grade 1 standards, and comes in a US26D satin chrome finish.

ML20906 x SEC

  • Latchbolt by grip either side only when lock is energized.
  • Outside grip locked when lock is not energized.
  • Latchbolt by key outside when lock is not energized.
  • Inside grip always free.
  • Auxiliary latch deadlocks latchbolt
  • Locked when power is off and unlocked when the power is on.

M105 - Security Monitor
Security Monitor is two switches in series that monitors lock status (locked or unlocked) and Auxiliary Latch position.
Note: Monitoring options may only be ordered together as follows: M91xM92, M92xM105. Recommended for fail safe applications that require monitoring of the secure side when lock loses power.

Manufacturer Corbin Russwin
SKU ML20906 LL 626 SEC M105
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 06xSEC-Fail Secure


Cylinder Mortise Handing Chart
