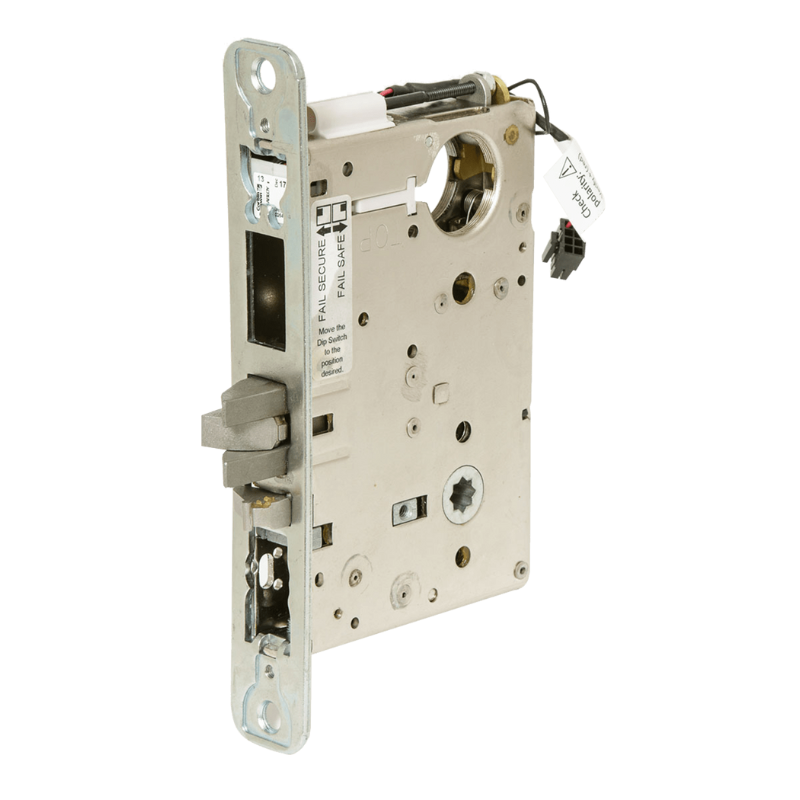

Corbin Russwin ML20906-LL-626-SEC Fail Secure Electrified Mortise Lock Body Only, Outside Grip Locked when Not Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20906LL626SEC
Corbin ML20906-LL-626-SEC
Corbin ML20906-LL-626-SEC
All CORBIN RUSSWIN Products

Corbin Russwin ML20906-LL-626-SEC Fail Secure Electrified Mortise Lock Body Only, Outside Grip Locked when Not Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20906LL626SEC
Dhs. 1,850.00/ea
In Stock (24‑48 hrs)
24-48 hrs Lead Time
Handing Guide:
handing chart image

Corbin ML20906-LL-626-SEC Fail Secure Electrified Mortise Lock, Outside Grip Locked when Not Energized, Outside Cylinder Override, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Corbin ML20906-LL-626-SEC is a Grade 1 fail-secure electrified mortise lock featuring a lever x lever design and a US26D satin chrome finish. This lock maintains the outside grip in a locked position when de-energized and includes an outside cylinder override. It comes without a cylinder, is field reversible, and is supplied as the lock body only.

ML20906 x SEC

  • Latchbolt by grip either side only when lock is energized.
  • Outside grip locked when lock is not energized.
  • Latchbolt by key outside when lock is not energized.
  • Inside grip always free.
  • Auxiliary latch deadlocks latchbolt.
  • Locked when power is off and unlocked when the power is on.
Manufacturer Corbin Russwin
SKU ML20906 LL 626 SEC
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 06xSEC-Fail Secure
