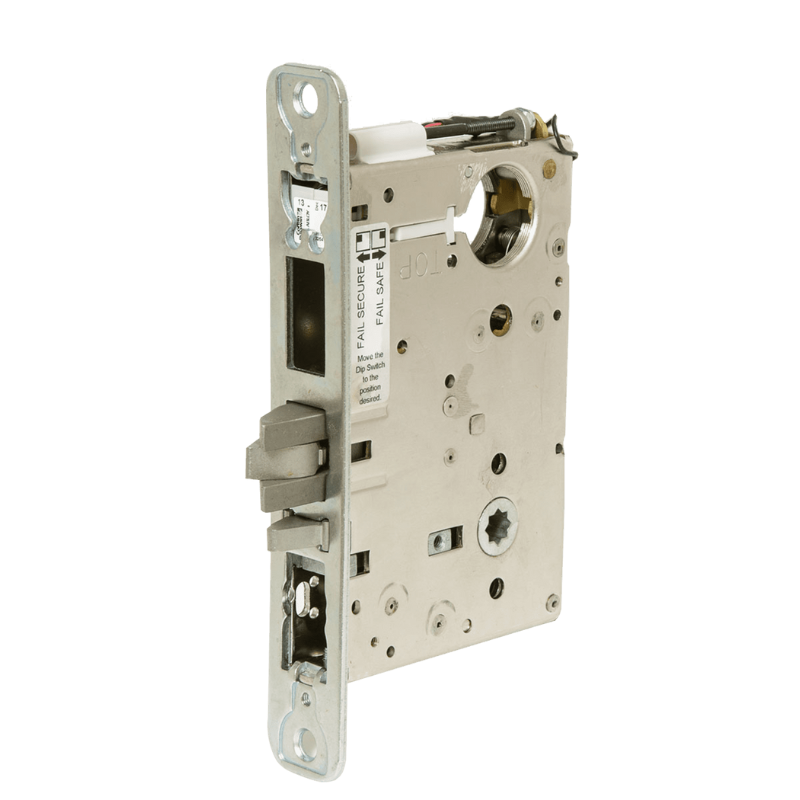

Corbin Russwin ML20906-LL-626-SAF Fail Safe Electrified Mortise Lock Body Only, Outside Grip Locked when Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20906LL626SAF
Corbin Russwin ML20906-LL-626-SAF
Corbin Russwin ML20906-LL-626-SAF
All CORBIN RUSSWIN Products

Corbin Russwin ML20906-LL-626-SAF Fail Safe Electrified Mortise Lock Body Only, Outside Grip Locked when Energized, Outside Cylinder Override, Satin Chrome Finish

  • SKU: ML20906LL626SAF
Dhs. 1,851.00/ea
In Stock (24‑48 hrs)
24-48 hrs Lead Time
Handing Guide:
handing chart image

Corbin Russwin ML20906- LL-626 SAF, Fail Safe Electrified Mortise Lock, Outside Grip Locked when Energized, Outside Cylinder Override, Less Cylinder, Lever x Lever Body Only, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Corbin Russwin ML20906-LL-626-SAF is a Grade 1 fail-safe electrified mortise lock featuring a lever x lever configuration and a US26D satin chrome finish. This lock secures the outside grip when energized and includes an outside cylinder override. It is supplied without a cylinder, is field reversible, and comes as the lock body only.

ML20906 x SAF

  • Latchbolt by grip either side, unless outside grip is locked by energizing lock.
  • Latchbolt by key outside when lock is energized.
  • Inside grip always free.
  • Auxiliary latch deadlocks latchbolt.
  • Unlocked when power is off and locked when the power is on.
Manufacturer Corbin Russwin
SKU ML20906 LL 626 SAF
Grade Grade 1
Origin USA
Unit of Measure Each
Application Lockbody Only
BAA Qualified Yes
ADA Compliance Yes
Limited Warranty 2 Years
Fire Rated 3 Hours {A}



Handing Field Reversible
Std. Strike Type ASA
Door Thickness 1 3/4"
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Power Hard Wired
Cylinder Type Conventional Cylinder
# Pins 6
# of Keys 2
Operating Voltage 12VDC/24VDC
Keying 0 Bitted
Key(s) Blank
Std. Keyway L4
Lock Face Size 8" X 1-1/4"
Amp Draw 500mA Peak, 15mA Holding
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Function 06xSAF-Fail Safe


Product Cut Sheet

Cylinder Mortise Handing Chart
