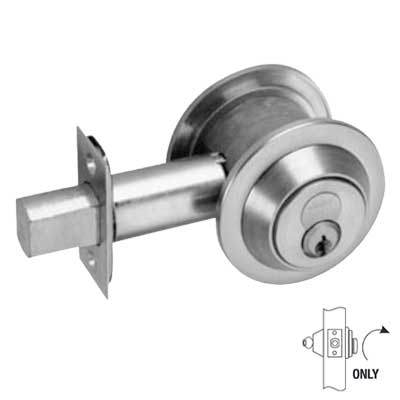

Corbin Russwin DL3017 Classroom Cylinder Deadlock with Steel Deadbolt
The DL3017 Classroom Cylinder Deadlock has a Corbin Russwin deadbolt of zinc diecast hardened steel.
The Corbin Russwin DL3017 has a conventional cylinder and an L4 keyway. It is keyed randomly. And it is non-handed.
DL3000 Series Cylindrical Deadlocks
The DL3000 Series features:
- Handing: Non-handed, except DL3017, which is handed and field reversible.
- Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
- Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
- Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
- Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
- Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes are available
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
- Keys: Two nickel silver standard.
- Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
- Warranty: One-year limited.
Image of Corbin Russwin Deadbolt in the DL3017
