Technical Specs
Type | Surface |
Technology | Hydraulic |
Mounting Location | Push Side |
Mounting Style | Parallel Arm |
Hold Open | No |
Hand | Non-Handed |
Degree Swing | 180 Deg. |
Back Check | Adjustable |
Cover | Full |
Cement Case | No |
Screw Type | Self-Tapping |
Through Bolts | No |
Voltage | Mechanical |
Spacer | Available |
Bracket | Available |
Drop Plate | Available |
Special Rust Inhibitor | No |
Sealed Closer | Yes |
Physically Handicapped | Yes |
Cold Weather Fluid | Yes |
Product Type | Surface Closers |
Product Specs
Manufacturer | Corbin Russwin |
SKU | DC3210 M45 |
Grade | Grade 1 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
Base Material | VARIES |
Limited Warranty | 15 Years |

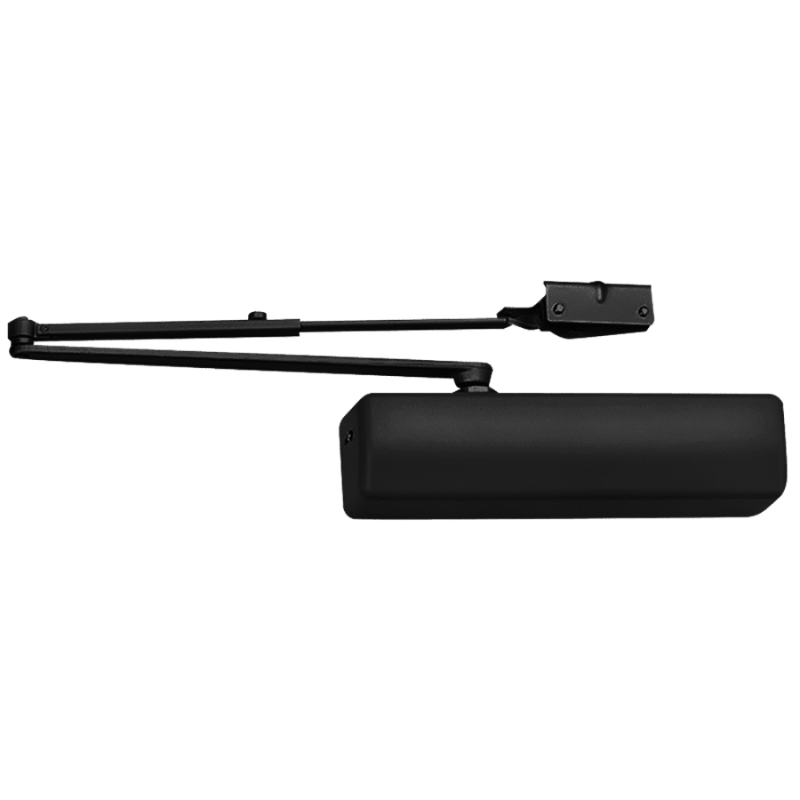

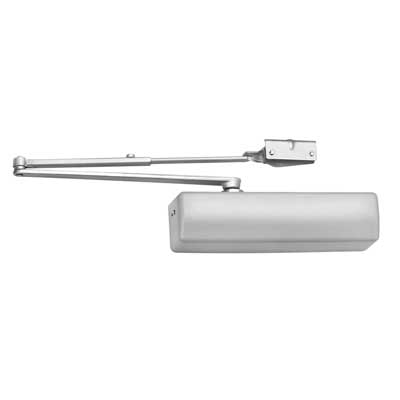

Corbin Russwin DC3210-M54 Door Closer, Double Lever Arm with PA Bracket, Push or Pull Side Mount, Size 1 to 6, Full Cover, Grade 1, Sex Bolts, Non Handed
Corbin Russwin DC3210-M54 Door Closer features a Double Lever Arm with PA Bracket, allowing for a Push or Pull Side Mount configuration. It is available in Size 1 to 6, with a Full Cover design and Grade 1 construction for maximum durability. Sex Bolts are also included for secure installation, and the closer is Non Handed for versatile use on any door.
- Allows inside application of closer on out-swinging
doors - Closer is mounted on the push side, with the arm
parallel to the face of the door - Arm does not project from the opening
Corbin Russwin DC3000 Series Door Closers
Ideal for high-traffic situations and has reliable latching for access control and fire code compliance.
THE DC3000 Series is a mid-priced, cost-effective choice. Ideal for virtually all door openings and draft conditions in both new construction and renovations, including schools and universities, health care, government, commercial/industrial, office/retail, transportation/utilities, hotels/conference centers, and religious.
- Meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements
- Compliance with building and barrier-free codes
- Up to full 180° door opening
- One-piece seamless steel spring tube seals in hydraulic fluid
- Tapered valves allow precise adjustment
- Cast iron body
- Quik-Install™ mounting bracket speeds installation, reducing cost and errors
- Five-year limited warranty
- UL10C, UBC
- Powder painted arms and retrofit plates
