Description

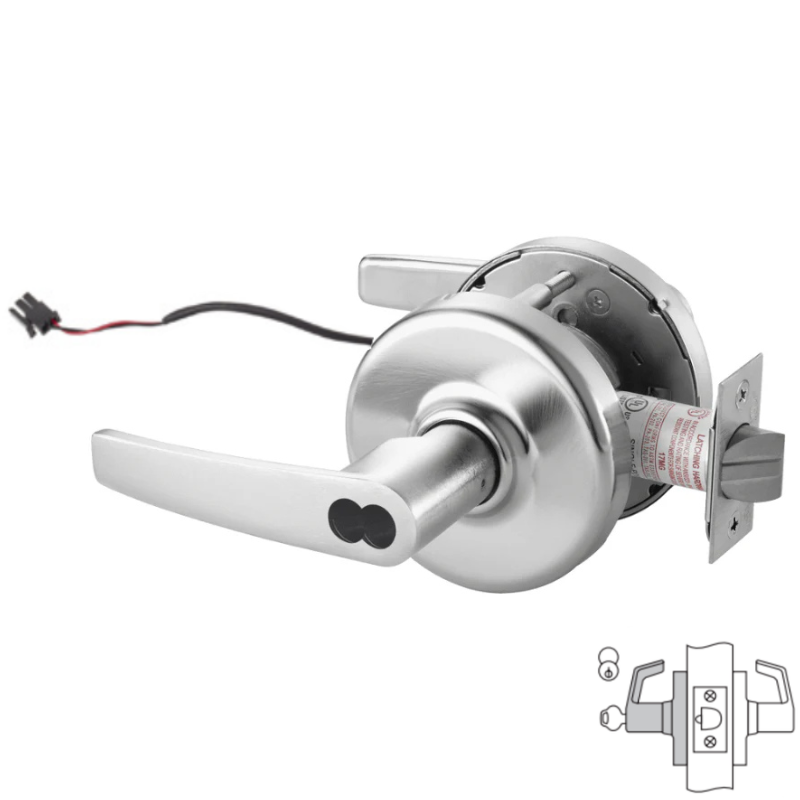

Corbin Russwin CLX33905-AZD-626-M08 Fail Secure Function Electrified Cylindrical Lever Lockset, Armstrong Lever, 2-3/4 Backset, 4-7/8 Strike, SFIC Prep, Less Core, Grade 1, Non-Handed, US26D Satin Plated Chrome Finish
The Corbin Russwin CLX33905-AZD-626-M08 is a premier Grade 1 electrified cylindrical lever lockset designed for high-security commercial applications requiring Fail Secure functionality. Featuring the elegant Armstrong (AZ) lever and a durable 626 Satin Chrome finish, this electromechanical lock ensures the outside lever remains locked without power while always allowing free egress from the inside. This specific model comes equipped with SFIC prep (less core) utilizing energy-efficient EcoFlex technology that operates on both 12VDC and 24VDC. Engineered for seamless integration, its ElectroLynx 8-pin connector allows for simple plug-and-play installation with compatible ASSA ABLOY door systems, making it an ideal choice for sophisticated access control environments.
Function: Fail Secure - The Fail Secure function ensures the outside lever remains locked when power is removed, maintaining building security during a power outage or system failure. When power is applied, the outside lever unlocks for entry, while the inside lever always allows for free egress at all times.
Features of ElectroLynx:
- Makes it easy to bring power to the locking hardware
- Wires have connectors that snap together, like plugging a telephone into a jack
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | CLX33905-AZD-626-M08 |
| Grade | Grade 1 |
| ANSI | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Electrical Options | Request to Exit switch for monitoring activation of the inside lever |
| Burglar Rated | No |
| Voltage | Accommodates 12VDC or 24VDC (Operating range 10.2VDC to 26.4VDC). Lock is polarity sensitive |
| ElectroLynx® | Provided with 8-pin molex connector |
Technical Specs
| Function |
905-Electromechanical (Fail Secure) |
| Current draw |
10mA @ 12VDC or 24VDC Continuous |
| Lever/Knob Design | AZ - Armstrong Lever |
| Rose/Escutcheon Design |
D Rose |
| Cylinder Type | SFIC Prep, Less core |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 867F21 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | SA114 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
