Description

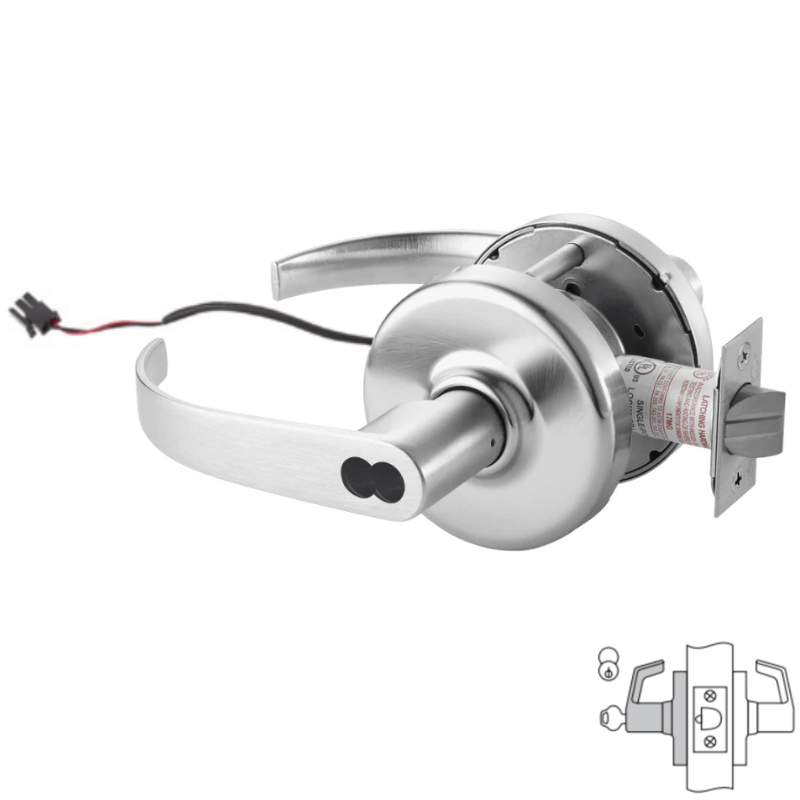

Corbin Russwin CLX33903-PZD-626-M08 Fail Safe Function Electrified Cylindrical Lever Lockset, Princeton Lever, 2-3/4 Backset, 4-7/8 Strike, SFIC Prep, Less Core, Grade 1, Non-Handed, US26D Satin Plated Chrome Finish
The Corbin Russwin CLX33903-PZD-626-M08 electrified cylindrical lever lockset delivers Grade 1 commercial security with a 903 fail safe electromechanical function ideal for healthcare, education, government, and commercial access control applications. Featuring the Princeton (PZD) lever with D rose in 626/US26D satin plated chrome, this non-handed lock is prepped for SFIC (M08) less core and fits standard 1-3/4" to 2" doors with a 2-3/4" backset and 4-7/8" ANSI curved lip strike. Designed for 12VDC or 24VDC operation, the lock includes an 8-pin ElectroLynx® connector for plug-and-play wiring integration, supports request-to-exit monitoring, and meets ANSI/BHMA A156.2 Series 4000 Grade 1 standards with a 3-hour UL fire rating, making it a durable and code-compliant solution for high-traffic controlled openings.
Function: Fail Safe - Outside lever locked when power is applied and unlocked upon power loss. Inside lever remains free at all times. Key retracts latchbolt regardless of electrical state.
Features of ElectroLynx:
- Makes it easy to bring power to the locking hardware
- Wires have connectors that snap together, like plugging a telephone into a jack
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | CLX33903-PZD-626-M08 |
| Grade | Grade 1 |
| ANSI | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Electrical Options | Request to Exit switch for monitoring activation of the inside lever |
| Burglar Rated | No |
| Voltage | Accommodates 12VDC or 24VDC (Operating range 10.2VDC to 26.4VDC). Lock is polarity sensitive |
| ElectroLynx® | Provided with 8-pin molex connector |
Technical Specs
| Function |
903-Electromechanical (Fail Safe) |
| Current draw |
10mA @ 12VDC or 24VDC Continuous |
| Lever/Knob Design | PZD - Princeton |
| Rose/Escutcheon Design |
D Rose |
| Cylinder Type |
SFIC Prep, Less Core |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 867F21 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | SA114 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
