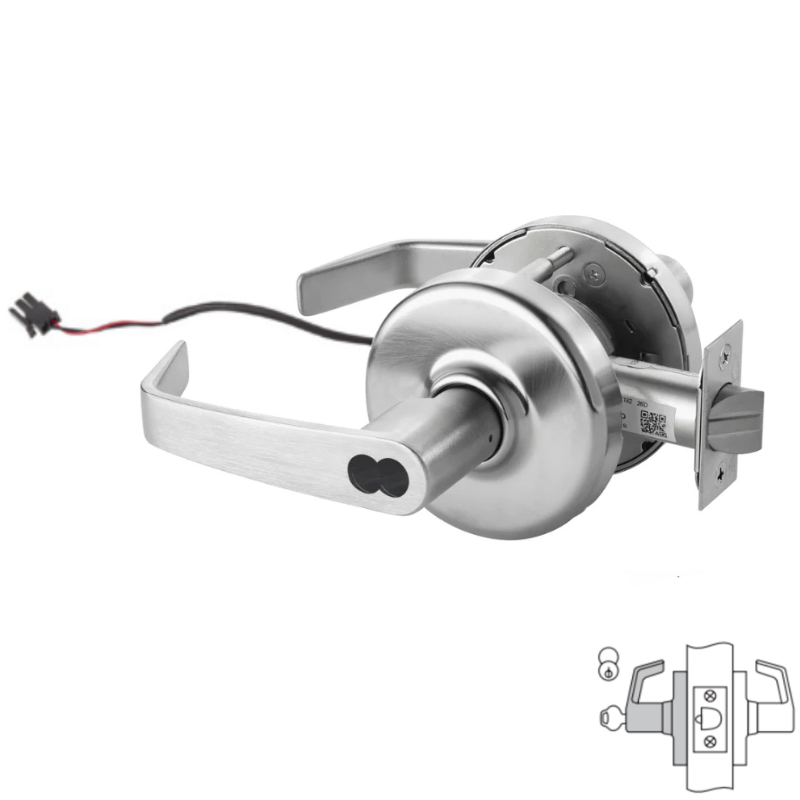

Corbin Russwin CLX33903-NZD-626-M08 Fail Safe Function Electrified Cylindrical Lever Lockset, Newport Lever, 2-3/4 Backset, 4-7/8 Strike, SFIC Prep, Less Core, Grade 1, Non-Handed, US26D Satin Plated Chrome Finish

The Corbin Russwin CLX33903-NZD-626-M08 Electrified Cylindrical Lever Lockset delivers Grade 1 commercial security with a 903 electromechanical fail safe function, keeping the outside lever locked when power is applied and automatically unlocking upon power loss for life-safety compliance. Featuring the Newport (NZD) lever with D rose in 626/US26D satin plated chrome, this non-handed lock is prepped for SFIC (less core) and fits 1-3/4" to 2" doors with a standard 2-3/4" backset and 4-7/8" ANSI curved lip strike. Designed for healthcare, education, and commercial facilities, it operates on 12VDC or 24VDC (polarity sensitive) and includes an 8-pin ElectroLynx® connector for fast plug-and-play access control integration. UL Listed, 3-hour fire rated, and compliant with ANSI/BHMA A156.2 Series 4000 Grade 1 standards, the CLX33903 ensures reliable performance in high-traffic, security-sensitive environments.

Function: Fail Safe - Outside lever locked when power is applied and unlocked upon power loss. Inside lever remains free at all times. Key retracts latchbolt regardless of electrical state.

Features of ElectroLynx:

• Makes it easy to bring power to the locking hardware
• Wires have connectors that snap together, like plugging a telephone into a jack
