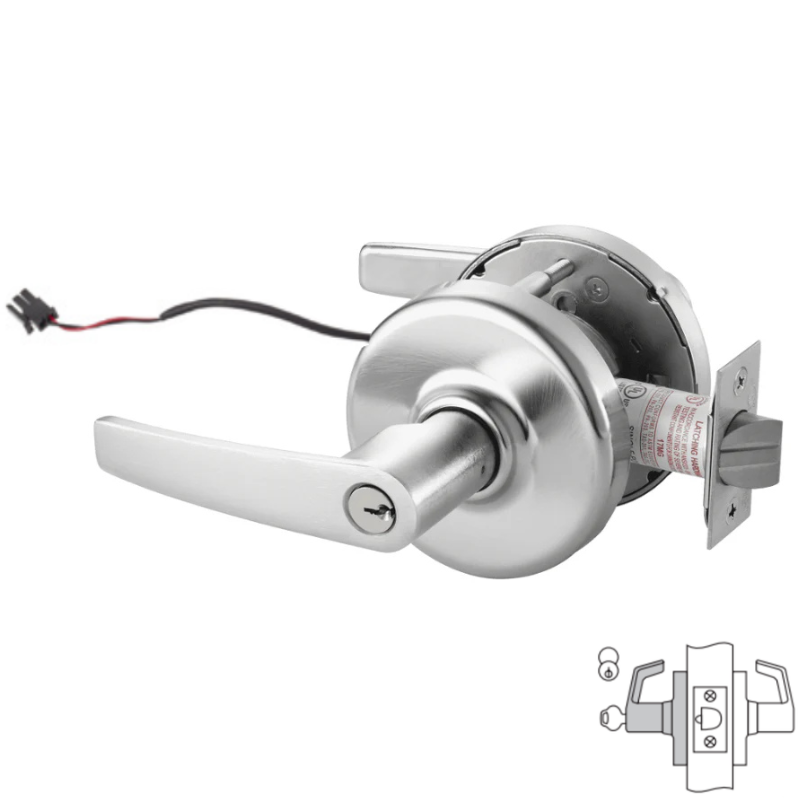

Corbin Russwin CLX33903-AZD Fail Safe Function Electrified Cylindrical Lever Lockset, Armstrong Lever, 2-3/4 Backset, 4-7/8 Strike, L4 Keyway, Keyed Random, [2] Keys, Grade 1, Non-Handed
The Corbin Russwin CLX33903-AZD is a premium Grade 1 electrified cylindrical lockset featuring an Armstrong lever design and a Fail Safe (903) electromechanical function, ensuring the outside lever unlocks automatically during power loss for maximum life safety. Engineered for high-traffic commercial applications, this UL-listed 3-hour fire-rated lock utilizes advanced ElectroLynx® technology with an 8-pin Molex connector for seamless, plug-and-play integration into electronic access control systems. With an industry-leading ultra-low current draw of only 10mA at 12/24VDC, the CLX33903 offers unparalleled energy efficiency and compatibility, while its high-security L4 keyway and ANSI/BHMA Grade 1 certification provide robust mechanical reliability and burglar resistance for any facility.
Function: Fail Safe - Outside lever locked when power is applied and unlocked upon power loss. Inside lever remains free at all times. Key retracts latchbolt regardless of electrical state.
Features of ElectroLynx:
- Makes it easy to bring power to the locking hardware
- Wires have connectors that snap together, like plugging a telephone into a jack
