Description

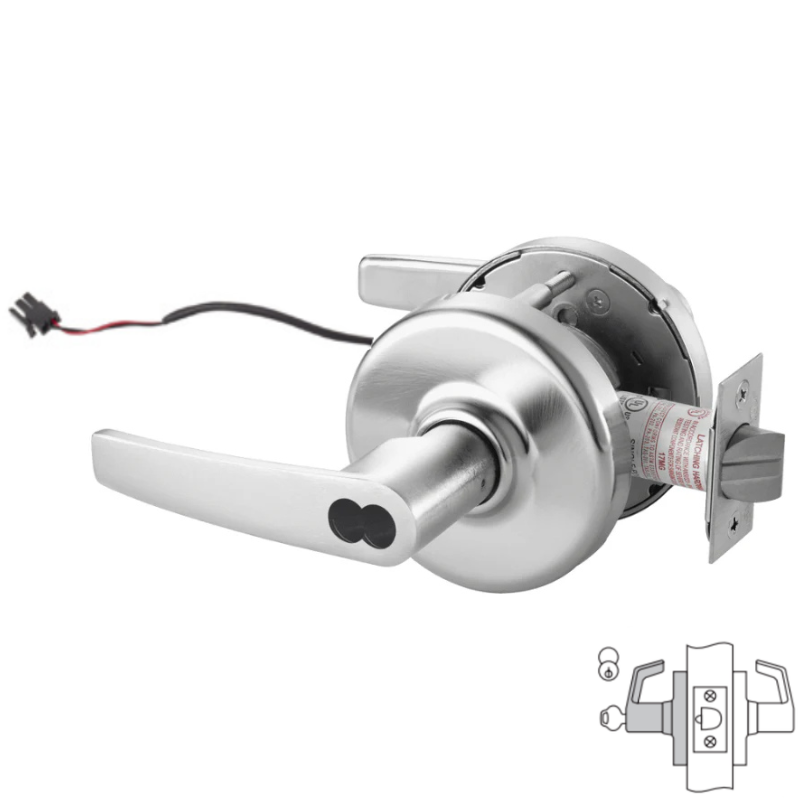

Corbin Russwin CLX33903-AZD-626-M08 Fail Safe Function Electrified Cylindrical Lever Lockset, Armstrong Lever, 2-3/4 Backset, 4-7/8 Strike, SFIC Prep, Less Core, Grade 1, Non-Handed, US26D Satin Plated Chrome Finish
The Corbin Russwin CLX33903-AZD-626-M08 Electrified Cylindrical Lever Lockset delivers Grade 1 commercial security with a 903 fail safe electromechanical function ideal for healthcare, education, government, and commercial access control applications. In fail safe mode, the outside lever remains locked when power is applied and automatically unlocks upon power loss, while the inside lever stays free for immediate egress and the key retracts the latchbolt regardless of electrical state. Featuring the AZD Armstrong lever with D rose in 626/US26D satin plated chrome, this lock is prepped for SFIC (Small Format Interchangeable Core) less core and is non-handed for simplified installation. Designed for 1-3/4" to 2" doors with a standard 2-3/4" backset and ANSI 4-7/8" curved lip strike, it operates on 12VDC or 24VDC (polarity sensitive) and includes an 8-pin ElectroLynx® connector for fast, plug-and-play integration with access control systems. UL listed, 3-hour fire rated, and compliant with ANSI/BHMA A156.2 Series 4000 Grade 1 standards, this electrified cylindrical lock provides dependable, heavy-duty performance in demanding commercial environments.
Function: Fail Safe - Outside lever locked when power is applied and unlocked upon power loss. Inside lever remains free at all times. Key retracts latchbolt regardless of electrical state.
Features of ElectroLynx:
- Makes it easy to bring power to the locking hardware
- Wires have connectors that snap together, like plugging a telephone into a jack
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | CLX33903-AZD-626-M08 |
| Grade | Grade 1 |
| ANSI | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Electrical Options | Request to Exit switch for monitoring activation of the inside lever |
| Burglar Rated | No |
| Voltage | Accommodates 12VDC or 24VDC (Operating range 10.2VDC to 26.4VDC). Lock is polarity sensitive |
| ElectroLynx® | Provided with 8-pin molex connector |
Technical Specs
| Function |
903-Electromechanical (Fail Safe) |
| Current draw |
10mA @ 12VDC or 24VDC Continuous |
| Lever/Knob Design | AZD - Armstrong |
| Rose/Escutcheon Design |
D Rose |
| Cylinder Type |
SFIC Prep, Less Core, |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 867F21 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | SA114 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
