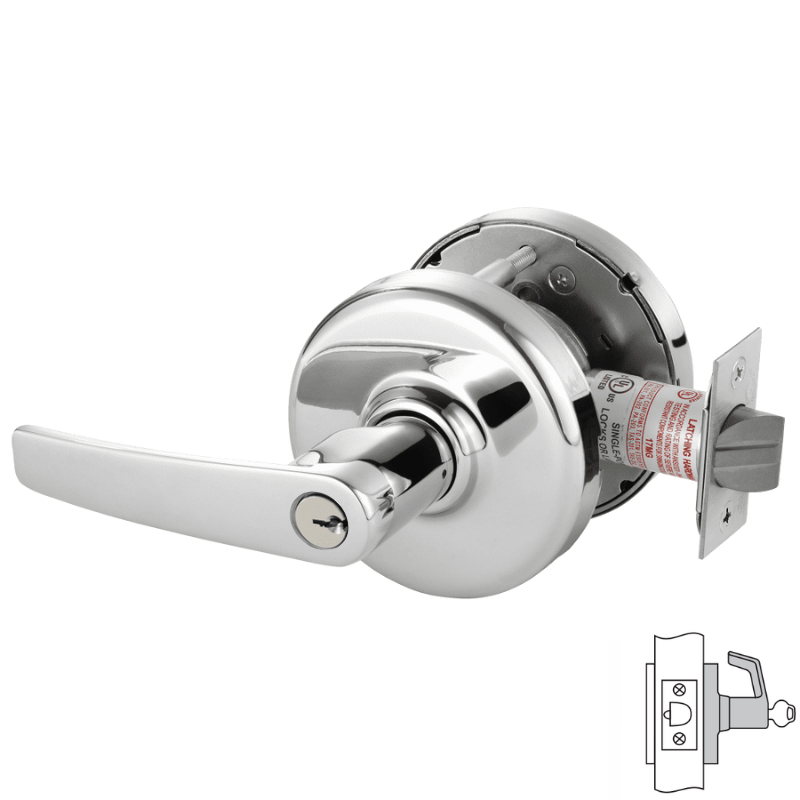

Corbin_Russwin_CLX3383-AZD-625
Corbin_Russwin_CLX3383-AZD-BSP
Corbin_Russwin_CLX3383-AZD-626
CLX3383Series
Corbin_Russwin_CLX3383-AZD-M08
Corbin_Russwin_CLX3383-AZD-CL6

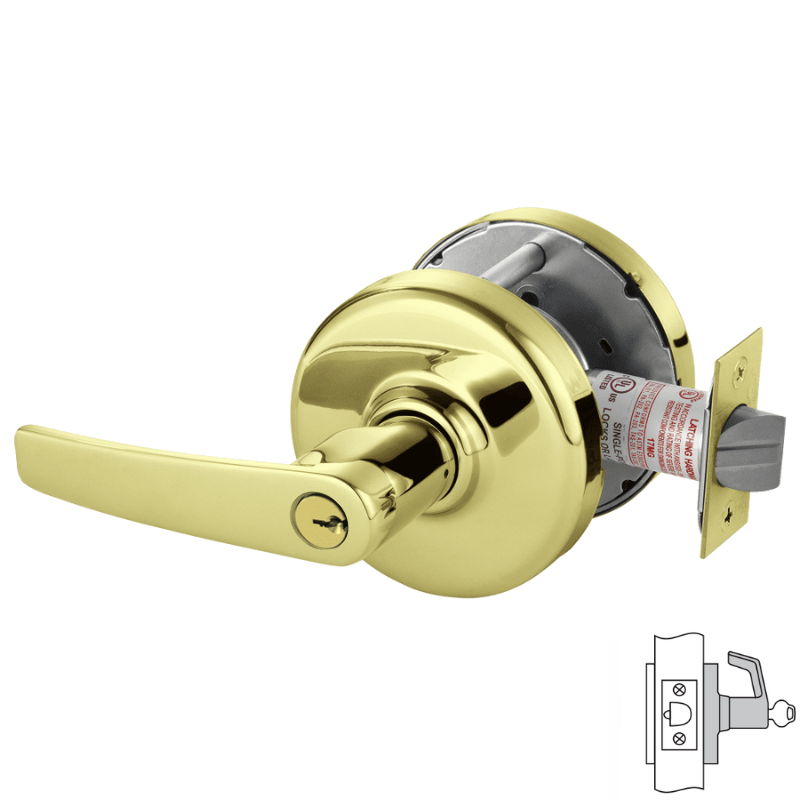

Corbin_Russwin_CLX3383-AZD-605

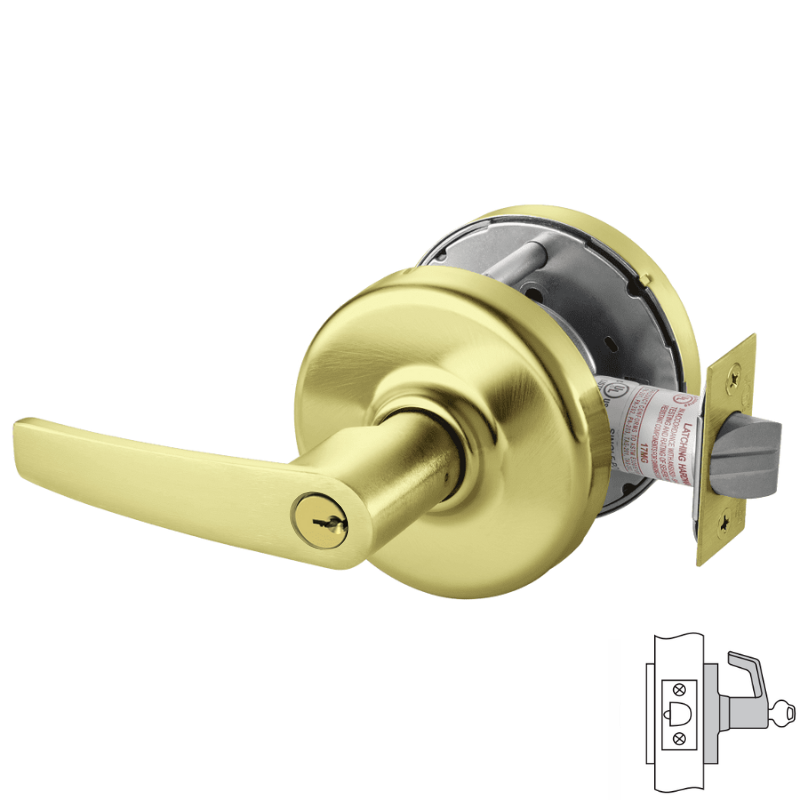

Corbin_Russwin_CLX3383-AZD-606

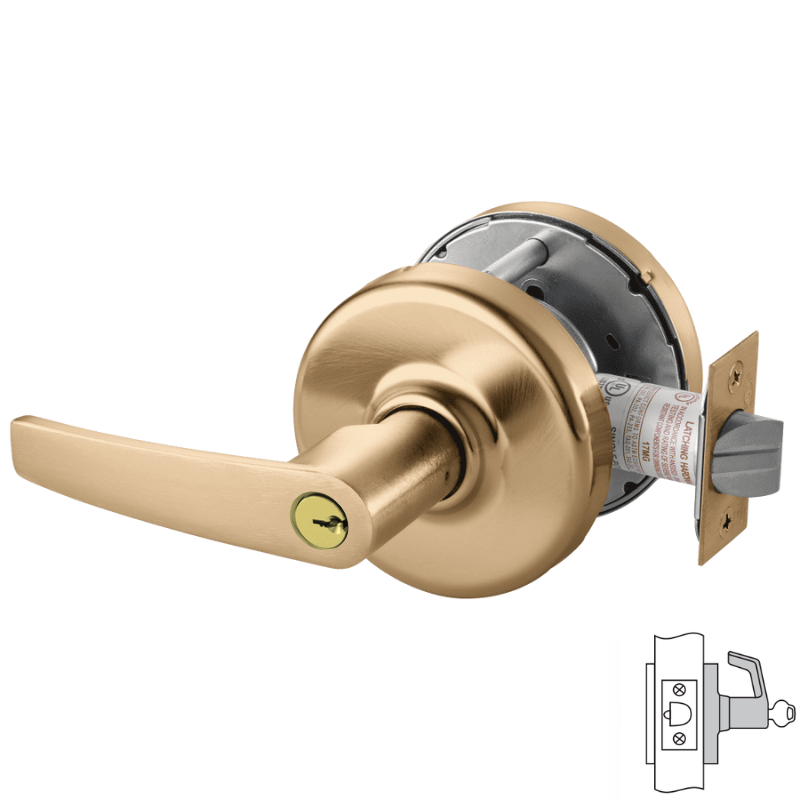

Corbin_Russwin_CLX3383-AZD-612

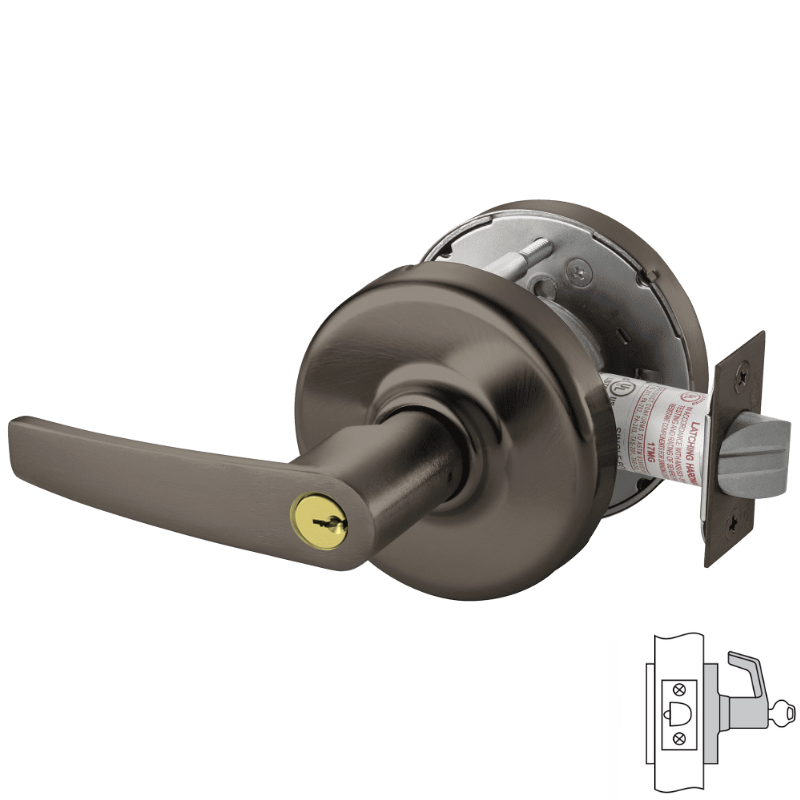

Corbin_Russwin_CLX3383-AZD-613
Corbin_Russwin_CLX3383-AZD-613E

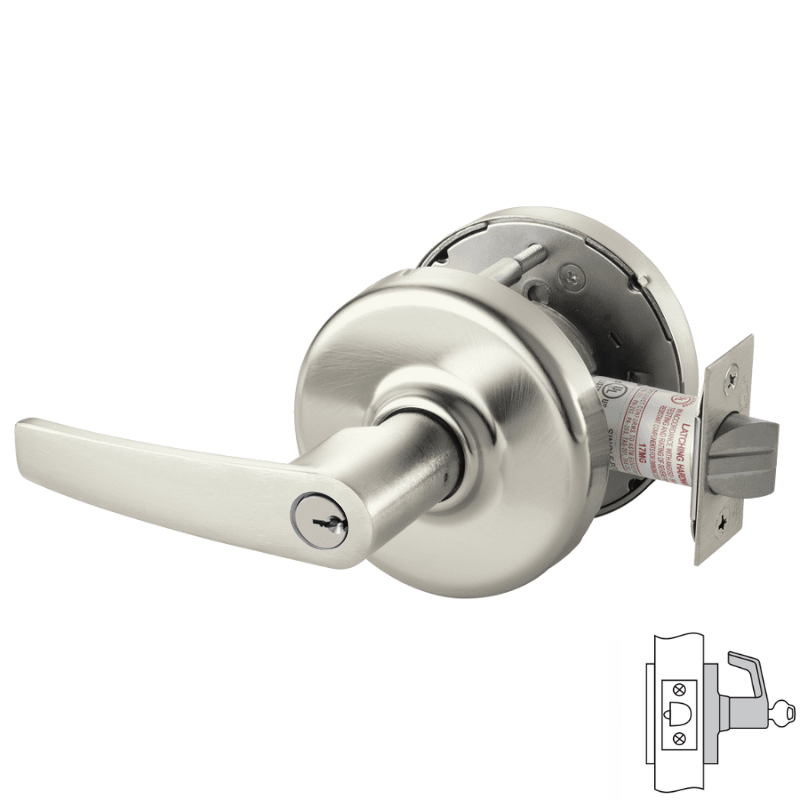

Corbin_Russwin_CLX3383-AZD-619
Corbin_Russwin_CLX3383-AZD-625

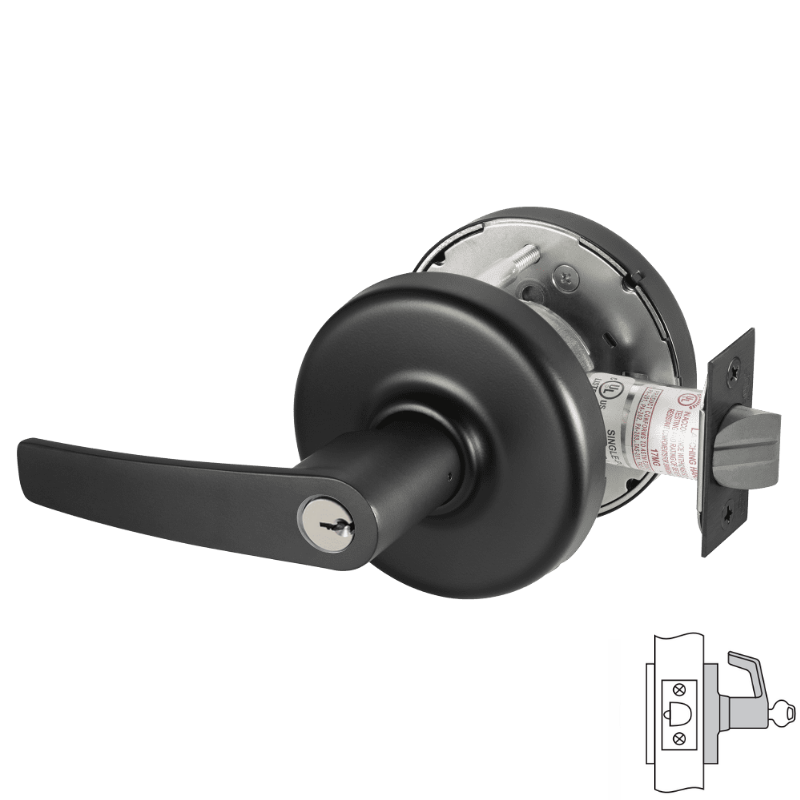

Corbin_Russwin_CLX3383-AZD-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3383-AZD Cylindrical Lock, Storeroom x Blank Plate Function, Multiple Core Options

  • SKU: CLX3383AZD626
Dhs. 1,803.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

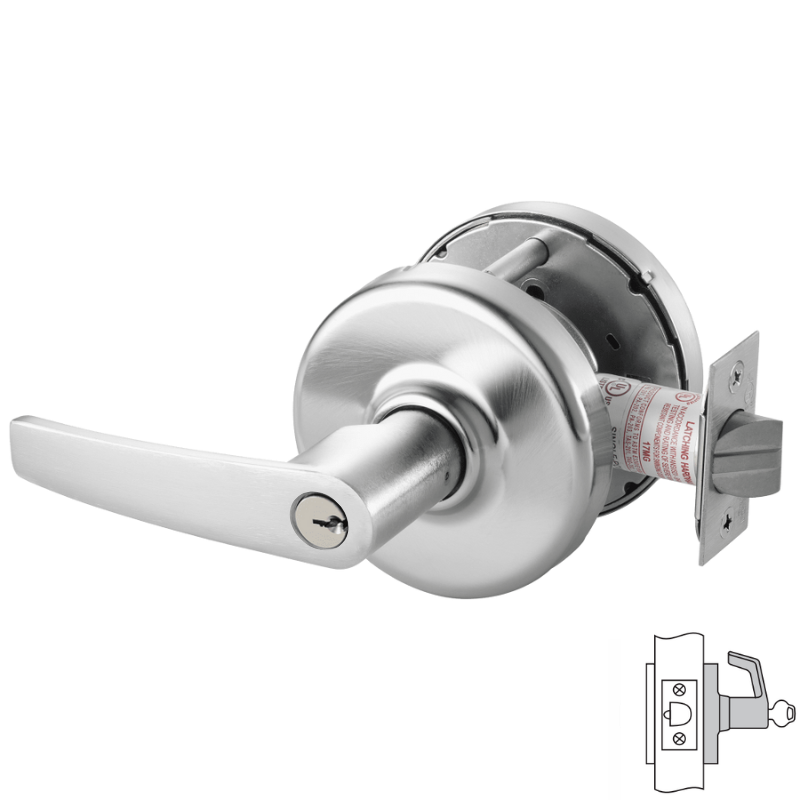

Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3383 Storeroom x Blank Plate Function Cylindrical Lever Lockset, Armstrong Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3383-AZD Cylindrical Lock offers multiple core options for the Storeroom x Blank Plate Function. With a sturdy Armstrong Lever, a 2-3/4 backset, and a 4-7/8 strike, this Grade 1 lock is non-handed and offers superior security for any facility.

Function: Storeroom x Blank Plate

  • Deadlocking latchbolt by key in lever (lever handle is freewheeling in locked position)
  • Lever always locked
  • Lever on one side; blank plate on other side

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

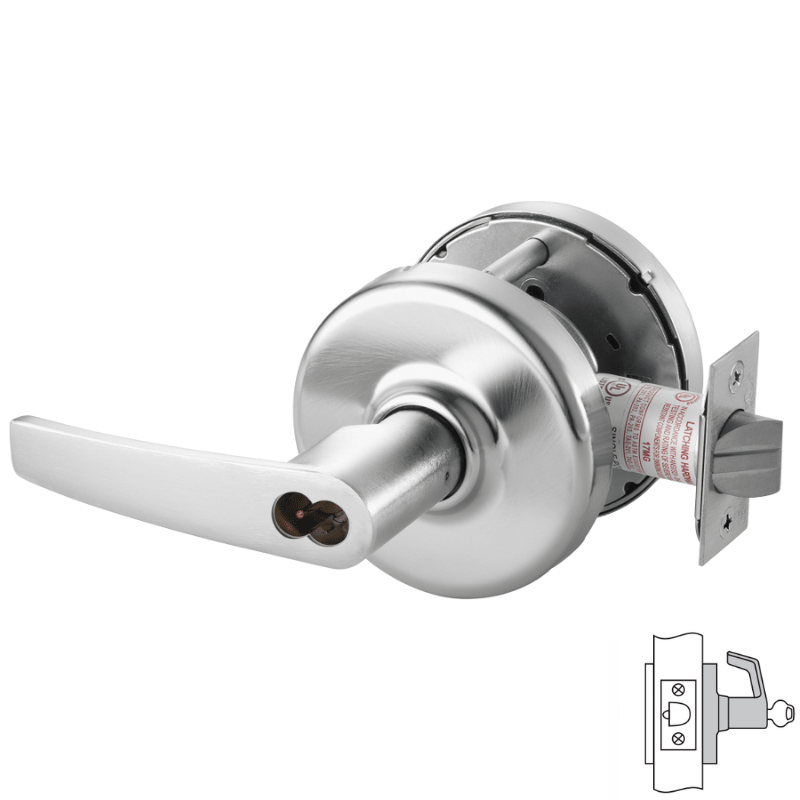

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3383 AZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 83 Storeroom x Blank Plate
Lever/Knob Design AZ - Armstrong Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
