Corbin Russwin CLX3383-102D Cylindrical Lock, Storeroom x Blank Plate Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3383102D626
Dhs. 1,803.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

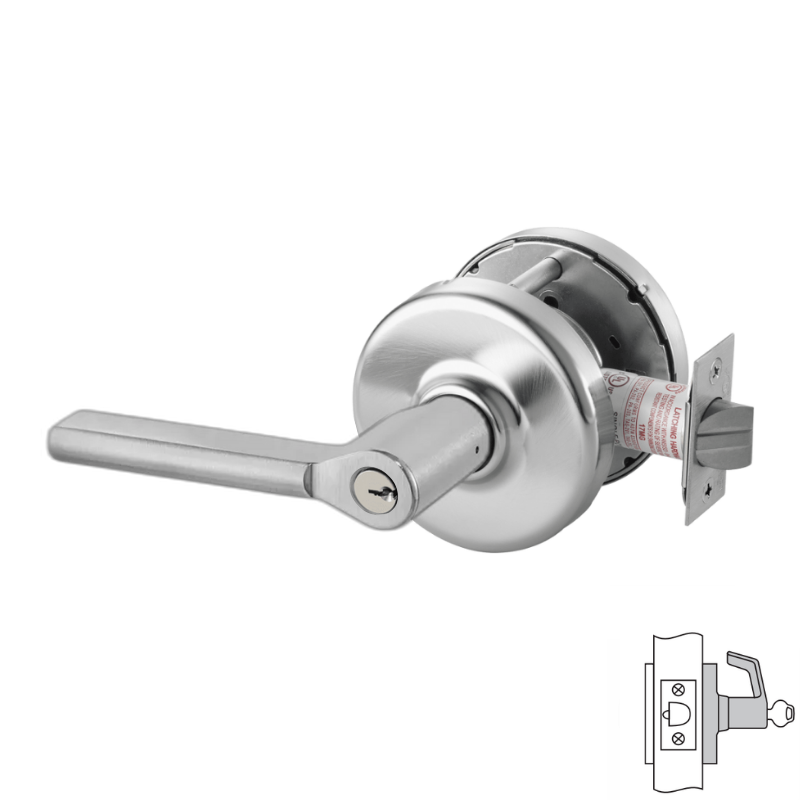

Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3383-102D Storeroom x Blank Plate Function Cylindrical Lever Lockset, Georgia 102D Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

Corbin Russwin CLX3383-102D Grade 1 Cylindrical Lever Lockset featuring Storeroom x Blank Plate functionality with elegant Georgia 102D lever design. Includes 2-3/4" backset and 4-7/8" strike plate. This professional-grade non-handed lockset accommodates multiple core options for versatile security applications.

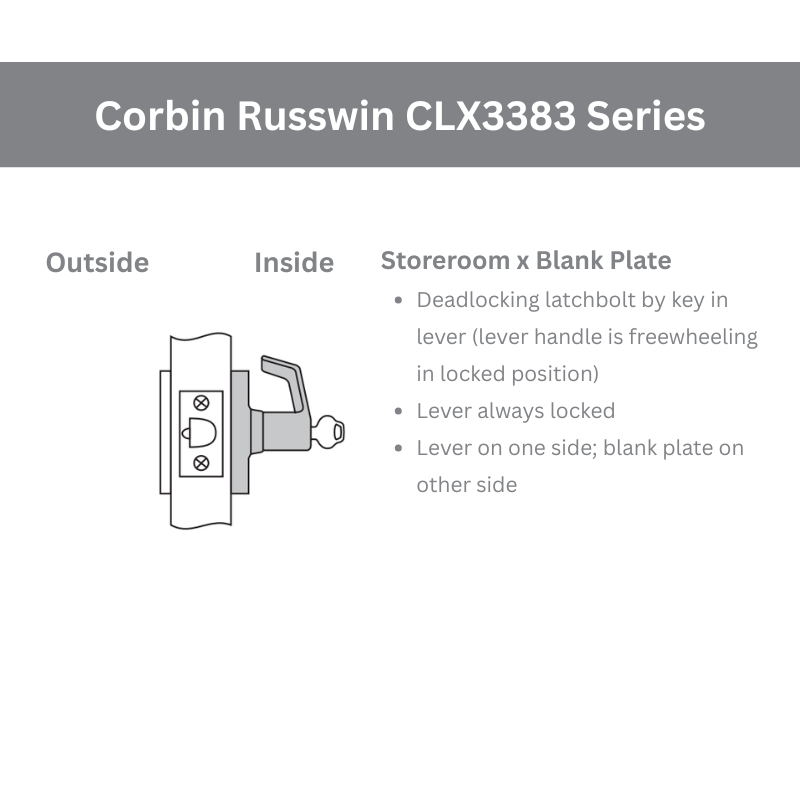

Function: Storeroom x Blank Plate

  • Deadlocking latchbolt by key in lever (lever handle is freewheeling in locked position)
  • Lever always locked
  • Lever on one side; blank plate on other side

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys
  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3383 102D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 83 Storeroom x Blank Plate
Lever/Knob Design 102 - Georgia Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
