Corbin Russwin CLX3381-AZD Cylindrical Lock, Classroom x Blank Plate Function, Multiple Core Options

  • SKU: CLX3381AZD626
Dhs. 1,803.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

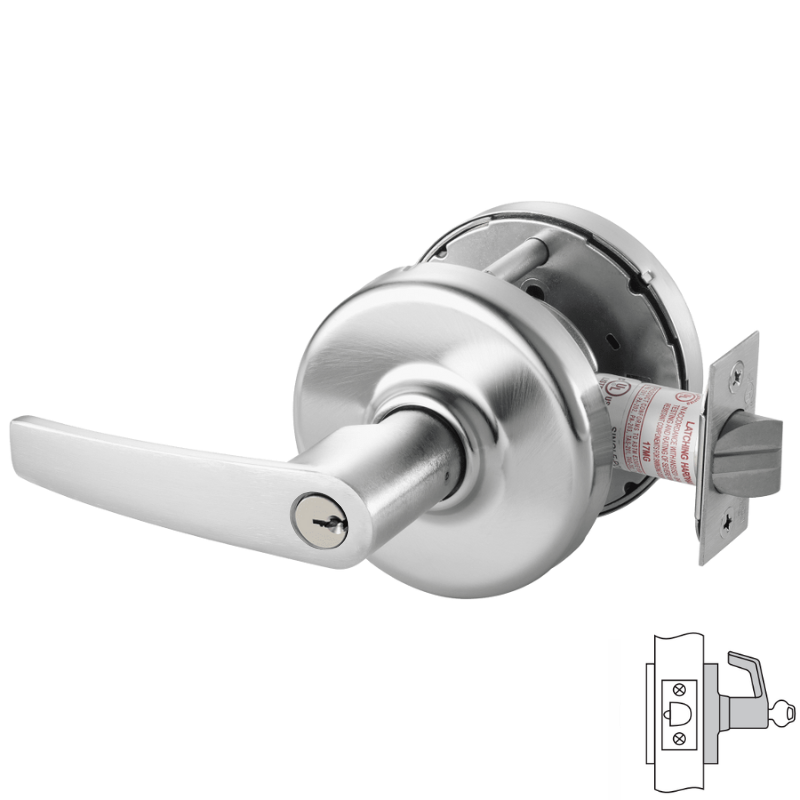

Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

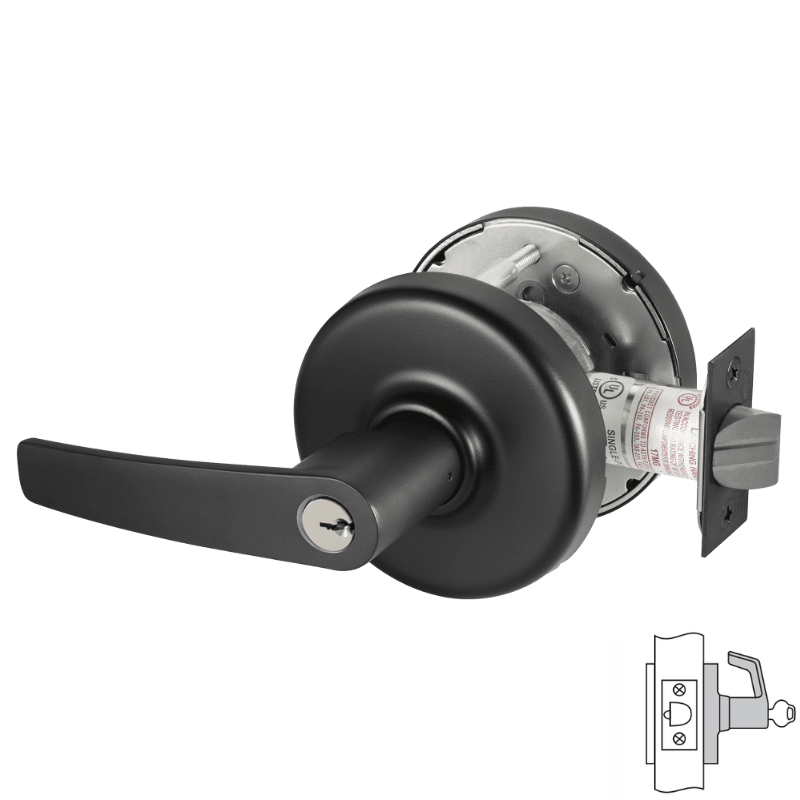

Corbin Russwin CLX3381-AZD Classroom x Blank Plate Function Cylindrical Lever Lockset, Armstrong Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3381-AZD Cylindrical Lock is equipped with a Classroom x Blank Plate Function, making it suitable for various core options. This Grade 1 lock features an Armstrong Lever, a 2-3/4 backset, and a 4-7/8 strike for optimal security. It is also non-handed for versatile installation.

Function: Classroom x Blank Plate

  • Deadlocking latchbolt by lever, except when lever is locked by
    key (lever handle is freewheeling in locked position)
  • Lever on one side; blank plate on other side
  • Key unlocks lever

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

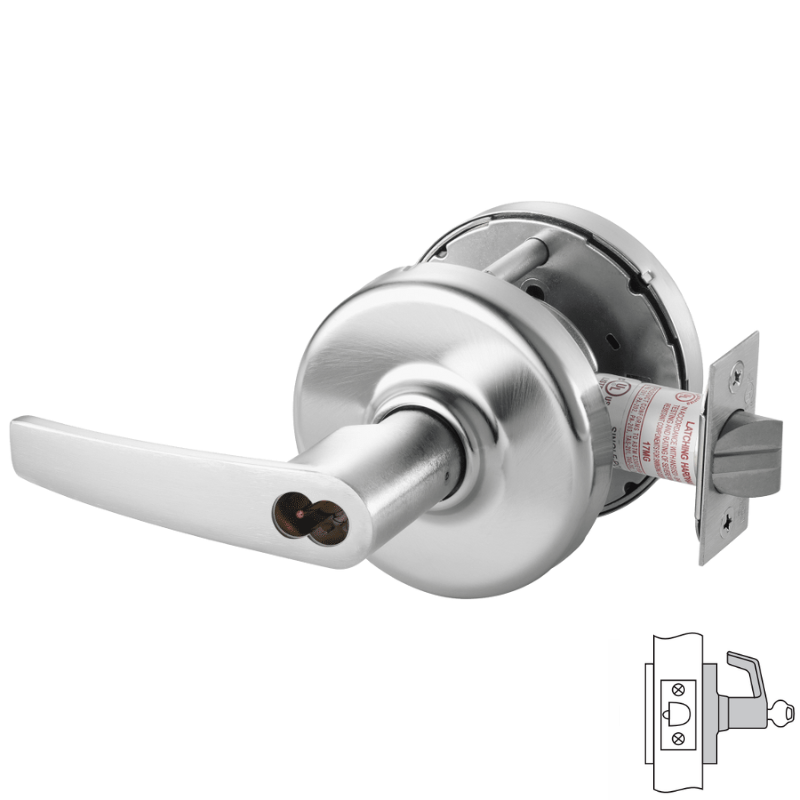

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3381 AZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 81 Classroom x Blank Plate
Lever/Knob Design AZ - Armstrong Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
