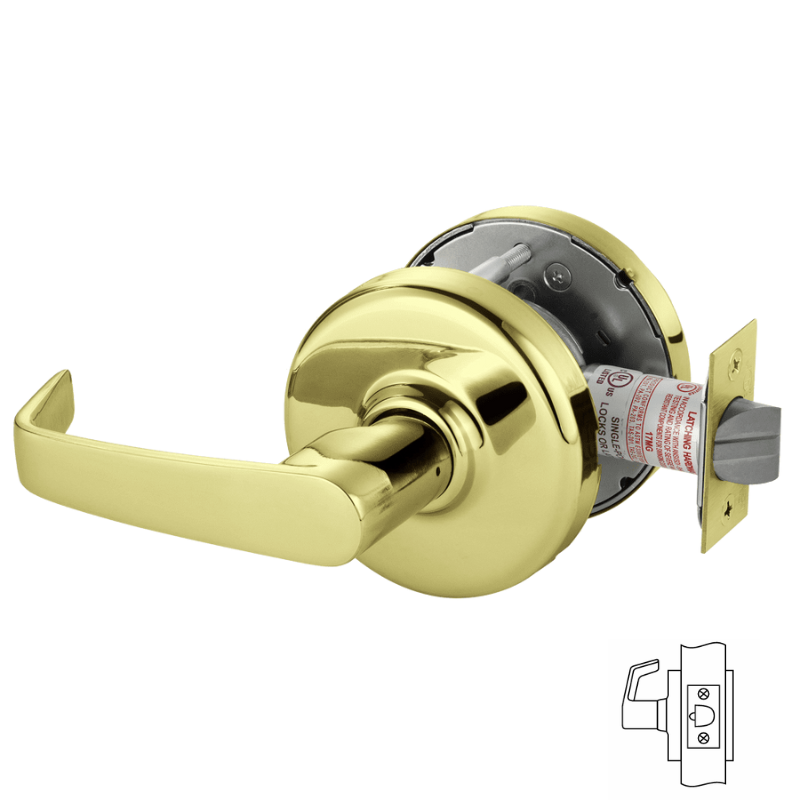

Corbin_Russwin_CLX3380-NZD-605

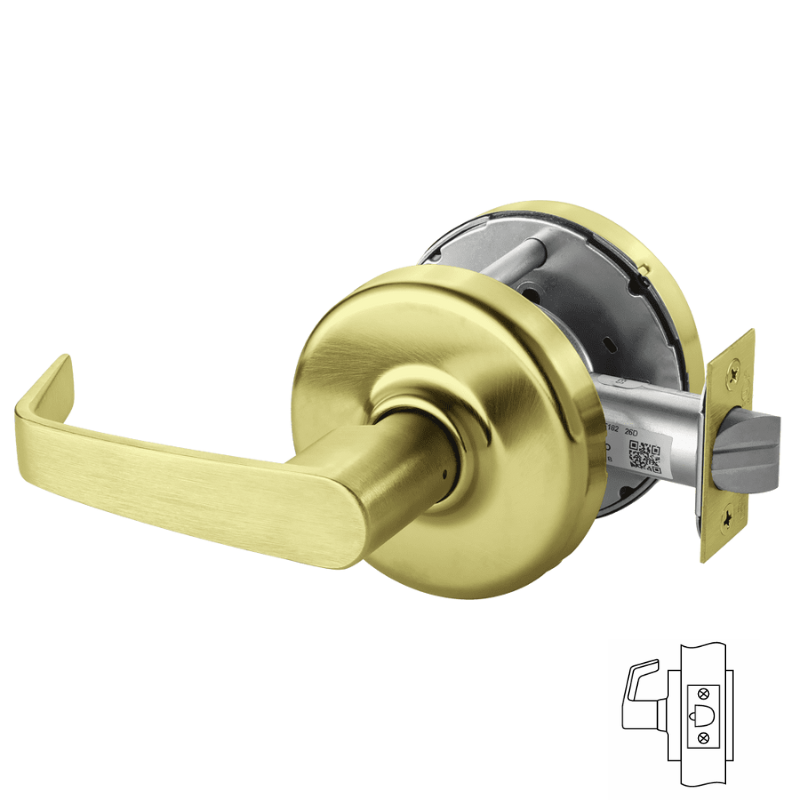

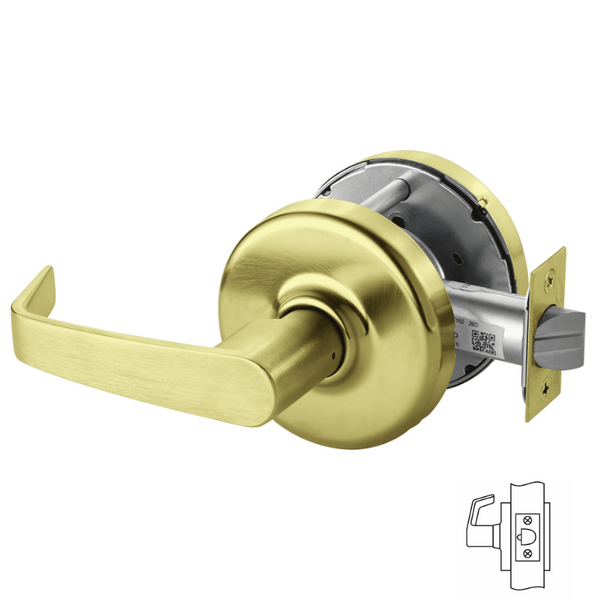

Corbin_Russwin_CLX3380-NZD-606

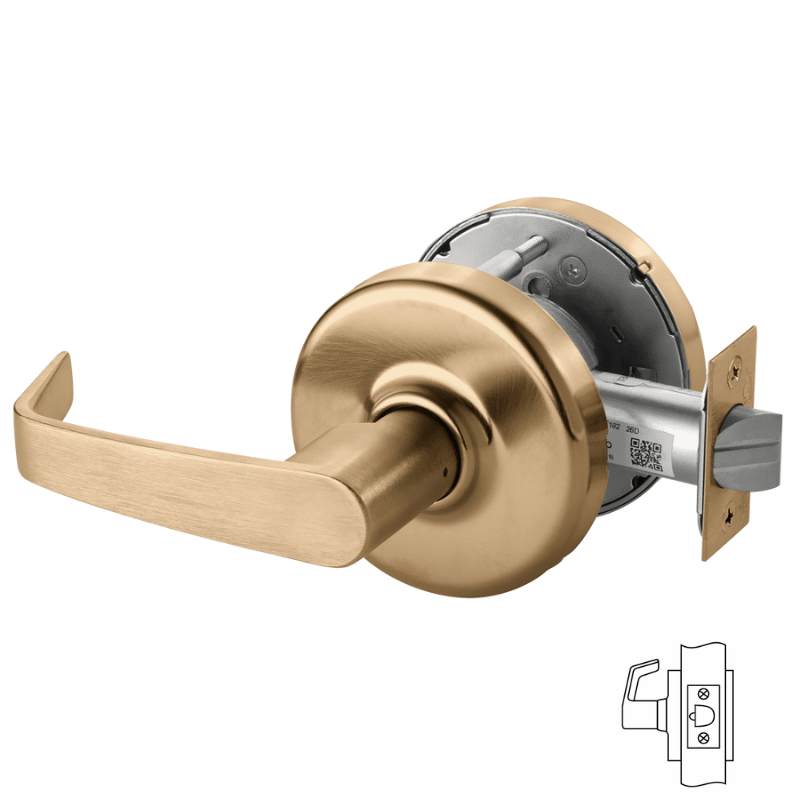

Corbin_Russwin_CLX3380-NZD-612

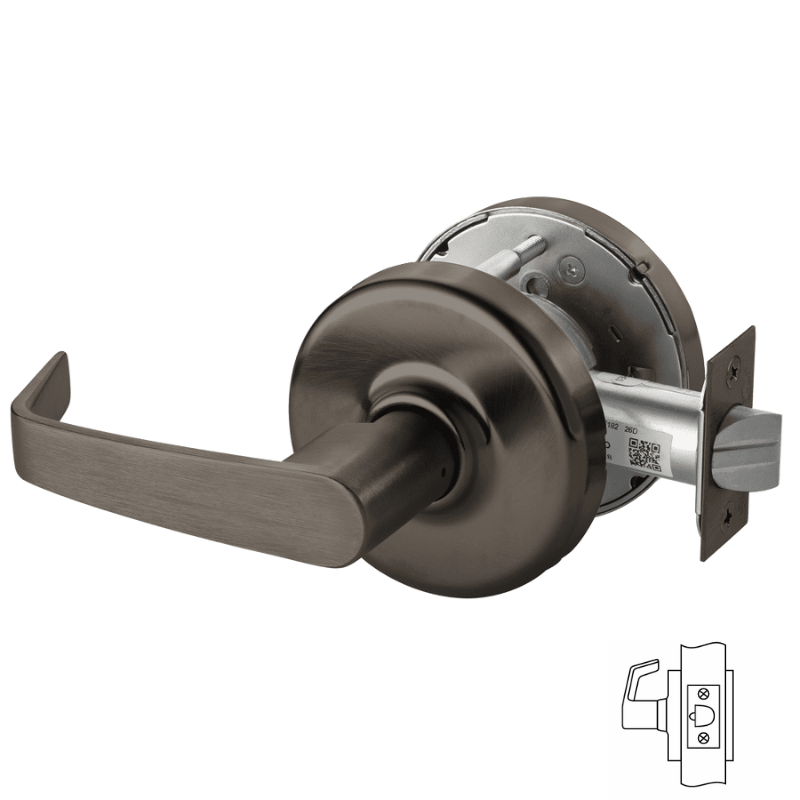

Corbin_Russwin_CLX3380-NZD-613
Corbin_Russwin_CLX3380-NZD-613E

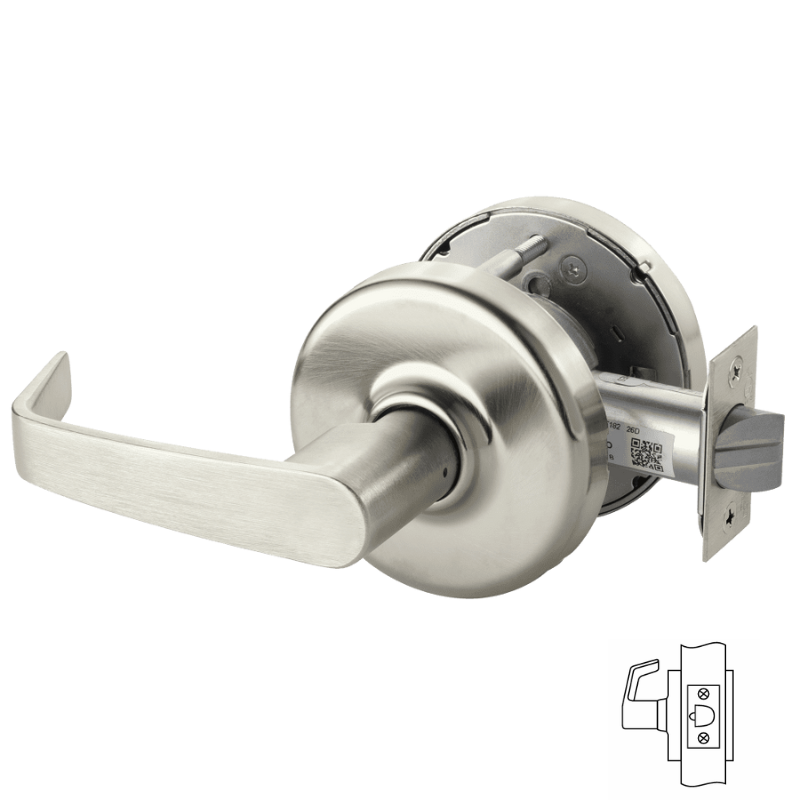

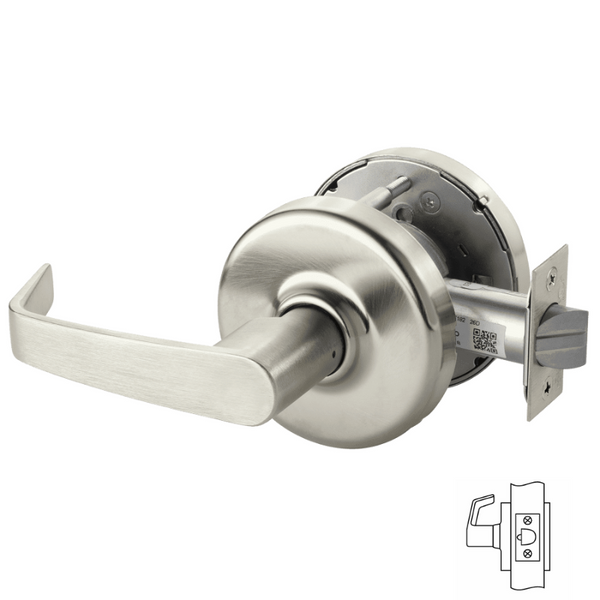

Corbin_Russwin_CLX3380-NZD-619

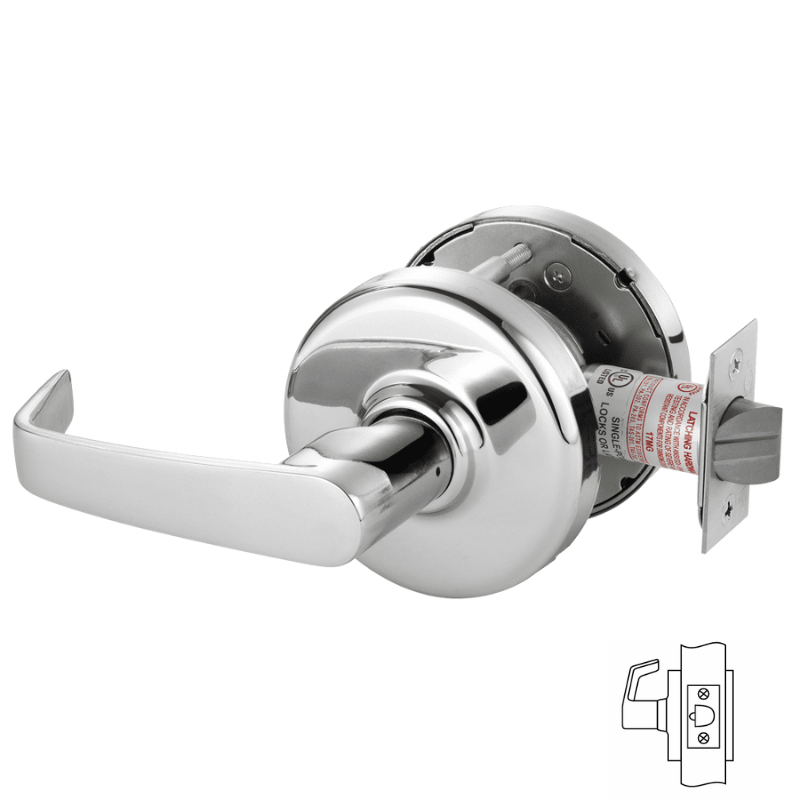

Corbin_Russwin_CLX3380-NZD-625

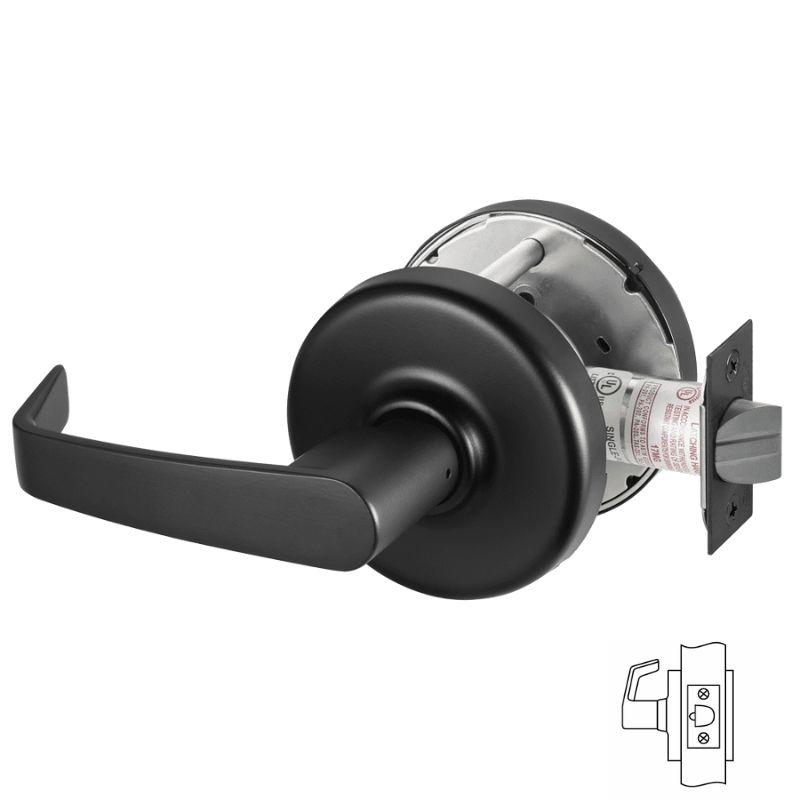

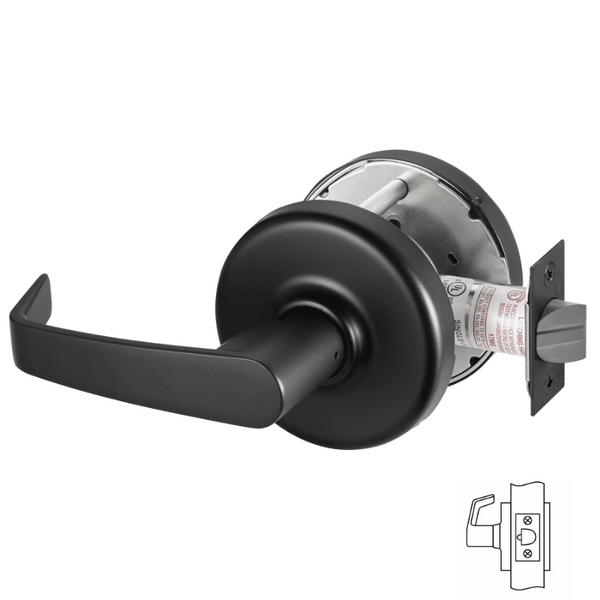

Corbin_Russwin_CLX3380-NZD-BSP
Corbin_Russwin_CLX3380-NZD-626
CLX3380Series
Corbin_Russwin_CLX3380-NZD-605
Corbin_Russwin_CLX3380-NZD-606
Corbin_Russwin_CLX3380-NZD-612
Corbin_Russwin_CLX3380-NZD-613
Corbin_Russwin_CLX3380-NZD-613E
Corbin_Russwin_CLX3380-NZD-619
Corbin_Russwin_CLX3380-NZD-625
Corbin_Russwin_CLX3380-NZD-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3380-NZD Cylindrical Lock, Passage Lever x Blank Plate Function, Non-Keyed

  • SKU: CLX3380NZD626
Dhs. 1,625.00/ea
Available (2 Weeks)
2 Weeks Lead Time

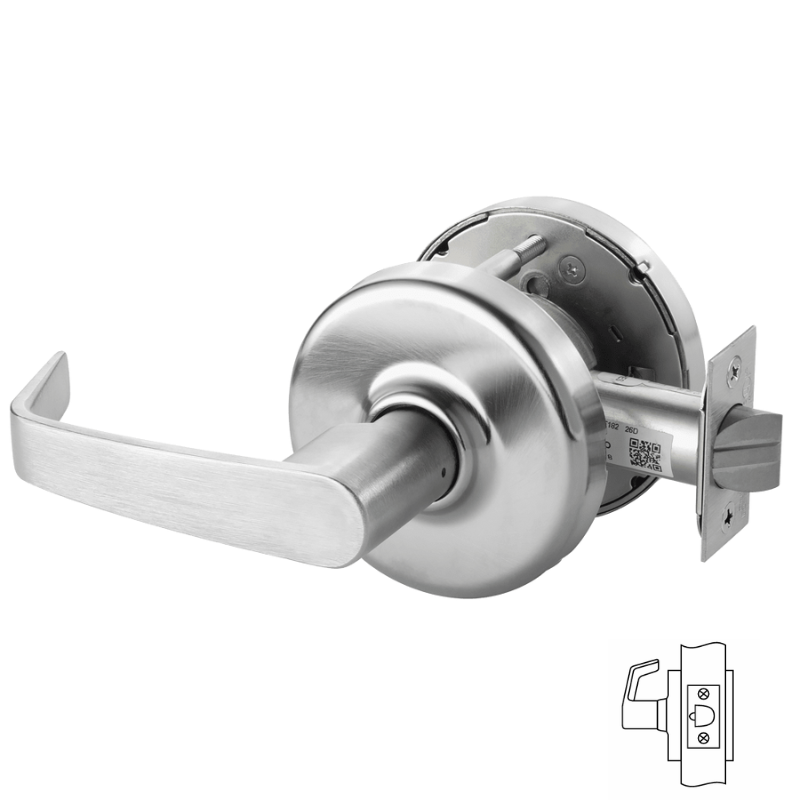

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3380-NZD Passage Lever x Blank Plate Function Cylindrical Lever Lockset, Newport Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3380-NZD Cylindrical Lock features a Passage Lever x Blank Plate Function, a Newport Lever, and meets Grade 1 standards. It has a 2-3/4" backset and a 4-7/8" strike, and is non-keyed and non-handed.

Function: Passage Lever x Blank Plate

  • Deadlocking latchbolt by lever
  • Lever on one side; blank plate on other side
  • Lever always free
  • For single or double communicating doors
Manufacturer Corbin Russwin
SKU CLX3380-NZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 80 - Passage Lever x Blank Plate
Lever/Knob Design NZ - Newport Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
