All CORBIN RUSSWIN Products

Corbin Russwin CLX3380-123D Cylindrical Lock, Passage Lever x Blank Plate Function, Decorative Lever, Non-Keyed

  • SKU: CLX3380123D626
Dhs. 1,625.00/ea
Available (2 Weeks)
2 Weeks Lead Time

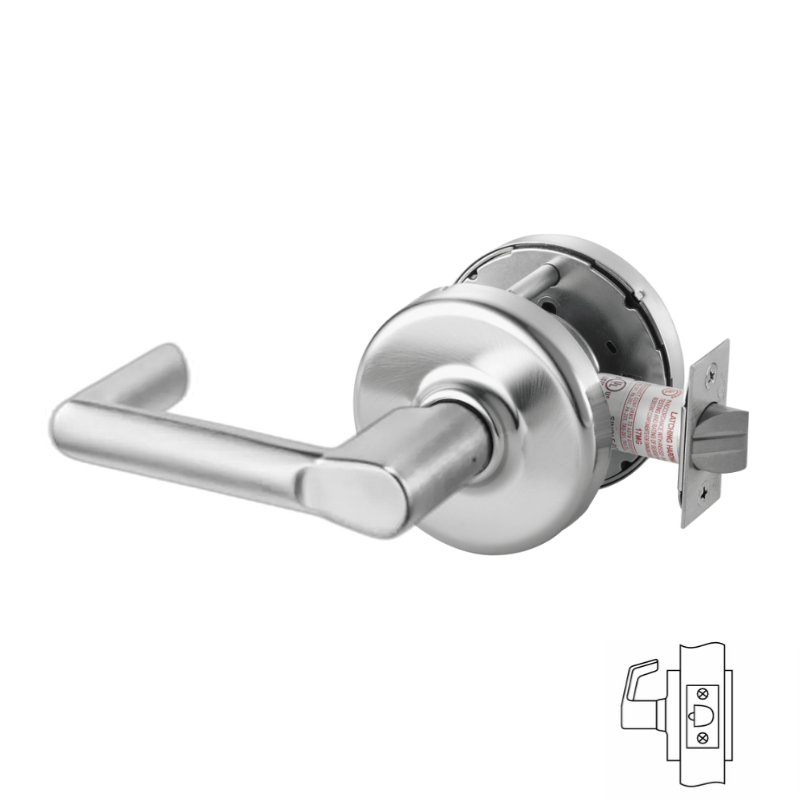

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3380-123D Passage Lever x Blank Plate Function Cylindrical Lever Lockset, Salvador 123D Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3380-123D Cylindrical Lock is a Grade 1 lever lockset with passage lever x blank plate function. It features the Salvador 123D lever and has a 2-3/4" backset and 4-7/8" strike. This non-keyed, non-handed lock is designed for professional use and meets all industry standards for security and functionality.

Function: Passage Lever x Blank Plate

  • Deadlocking latchbolt by lever
  • Lever on one side; blank plate on other side
  • Lever always free
  • For single or double communicating doors
Manufacturer Corbin Russwin
SKU CLX3380-123D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 80 - Passage Lever x Blank Plate
Lever/Knob Design 123 - Salvador Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
