Corbin Russwin CLX3370-PZD Cylindrical Lock, Full Dummy Function, Non-Keyed

  • SKU: CLX3370PZD626
Dhs. 1,227.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

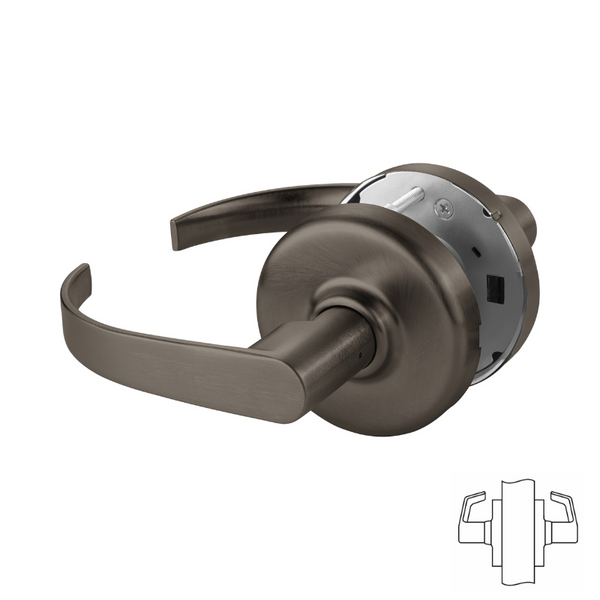

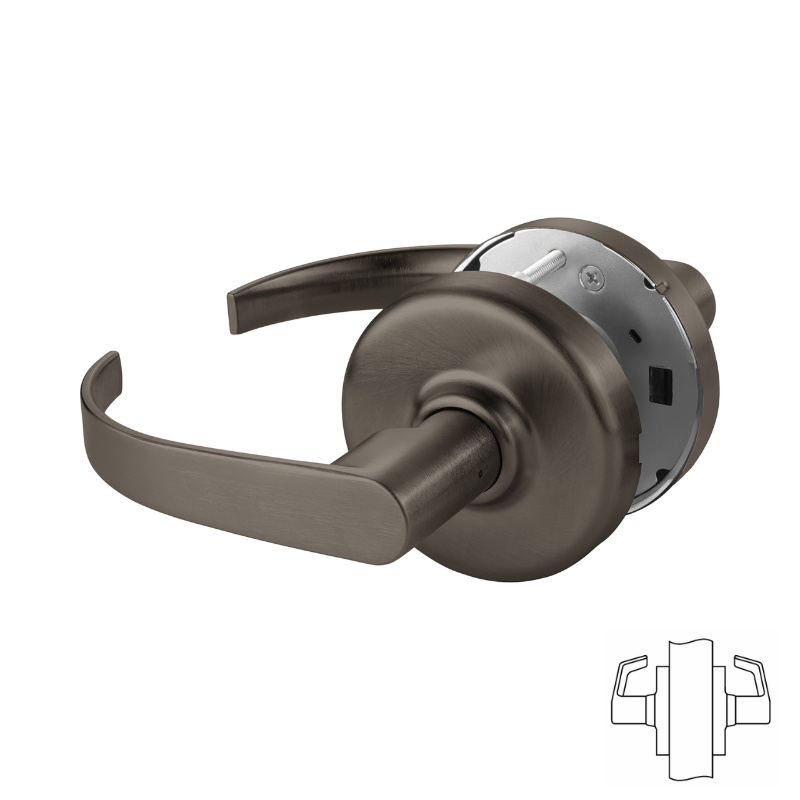

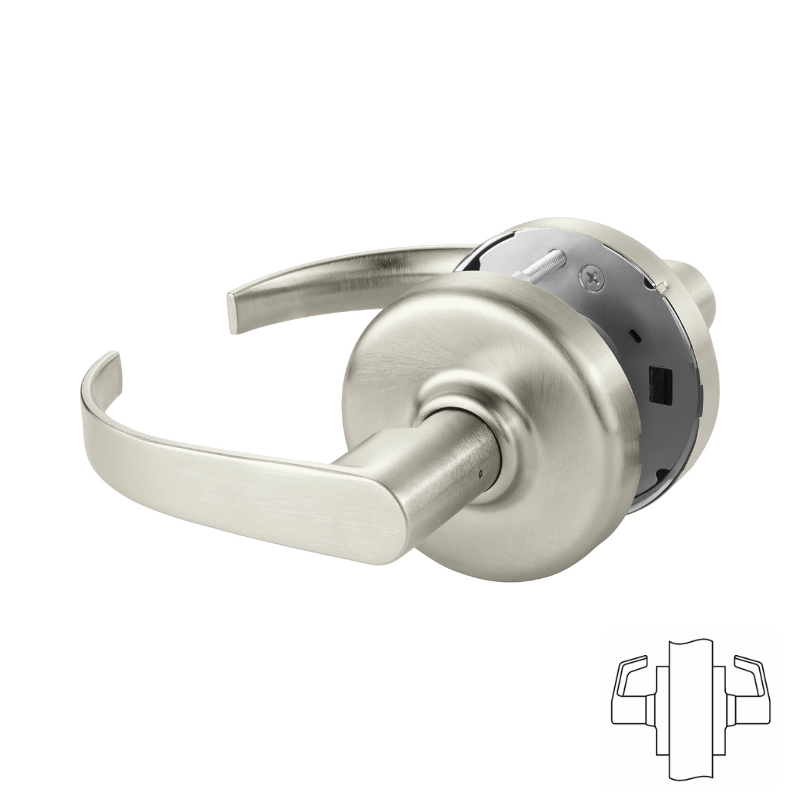

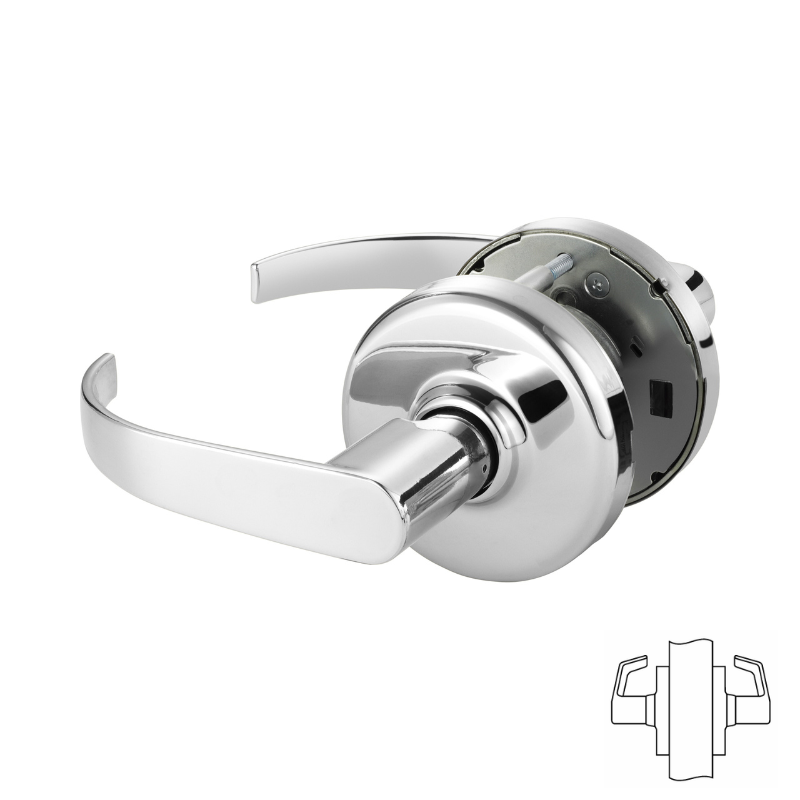

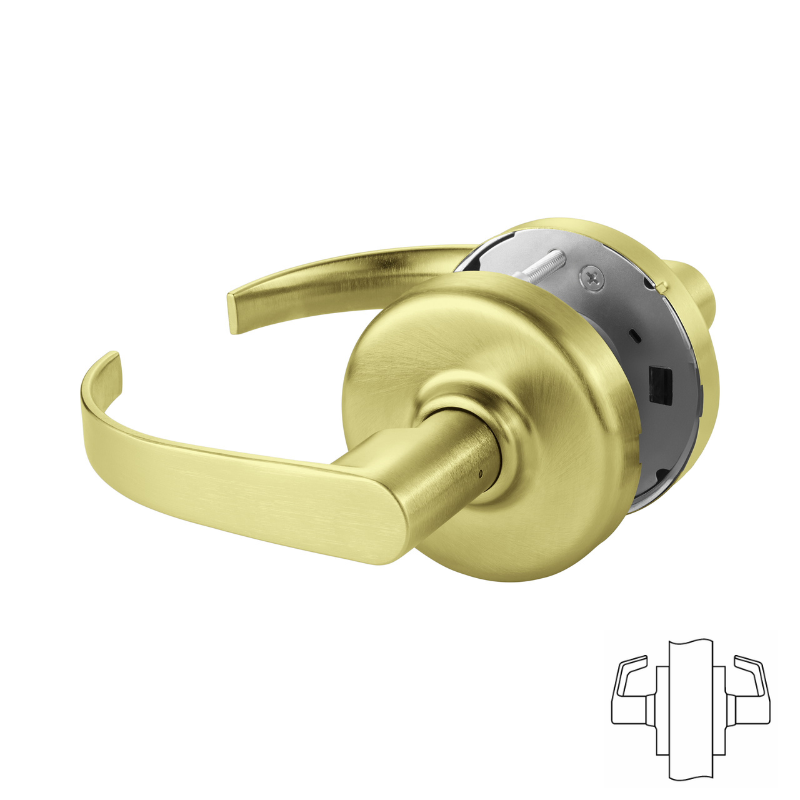

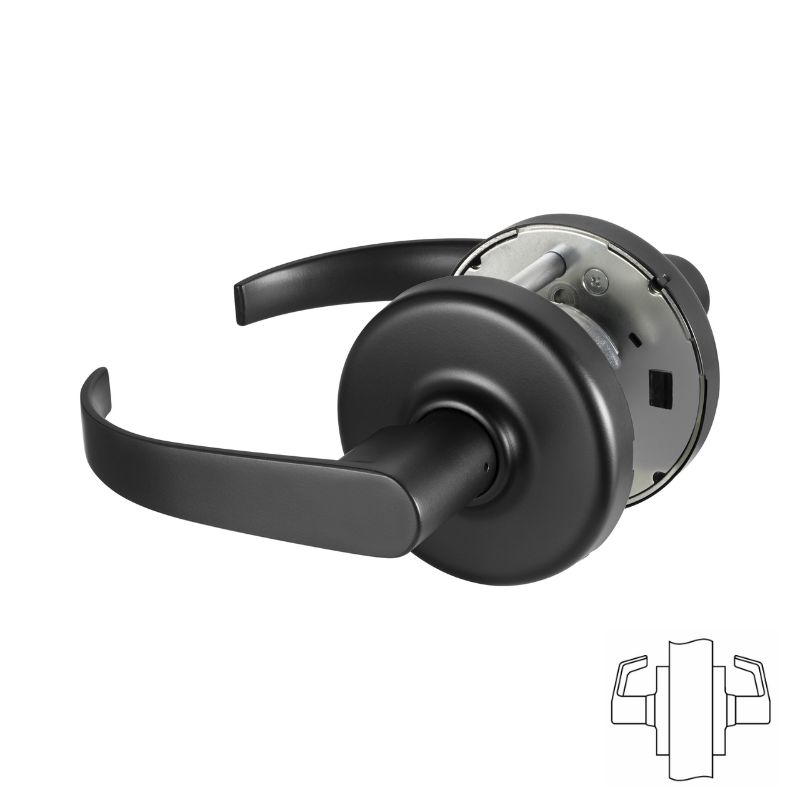

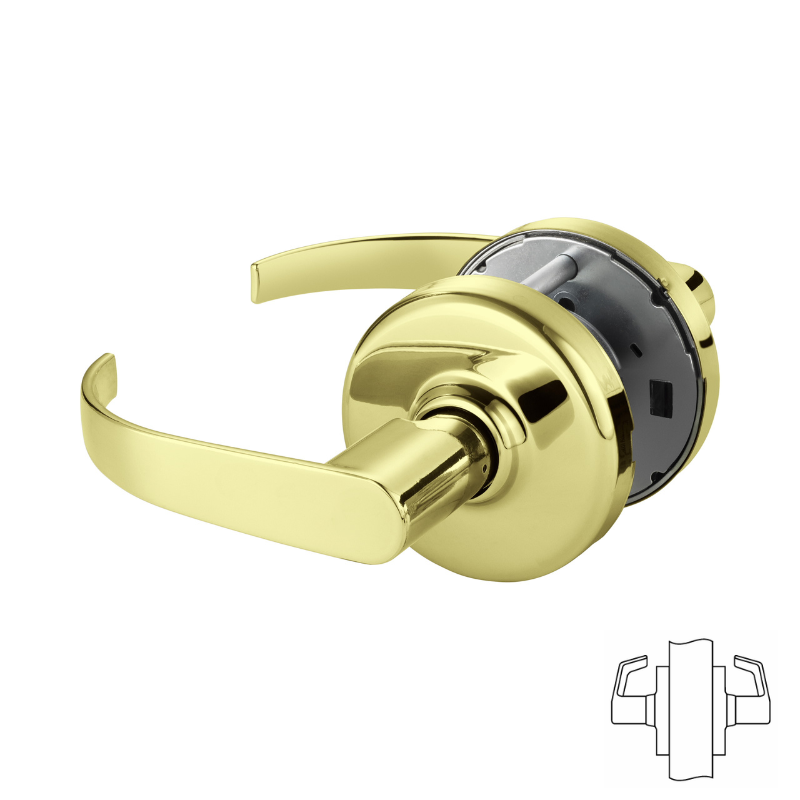

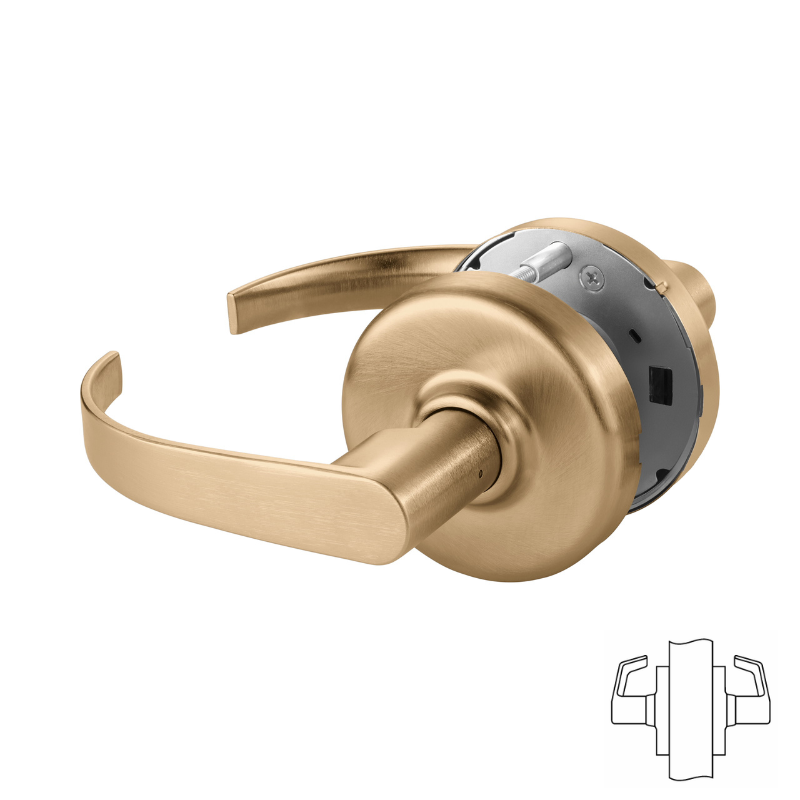

Corbin Russwin CLX3370-PZD Full Dummy Function Cylindrical Lever Lockset, Princeton Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3370-PZD Cylindrical Lock features a full dummy function and a Princeton lever. It has a 2-3/4" backset and 4-7/8" strike, making it a Grade 1 lock that is non-keyed and non-handed. It is a reliable and sturdy option for any commercial or industrial setting.

Function: Full Dummy Trim

  • Levers act as pulls only; no operation
  • Levers are rigid
Manufacturer Corbin Russwin
SKU CLX3370-PZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 70 - Full Dummy
Lever/Knob Design PZ - Newport Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock

    Product Cut Sheet
