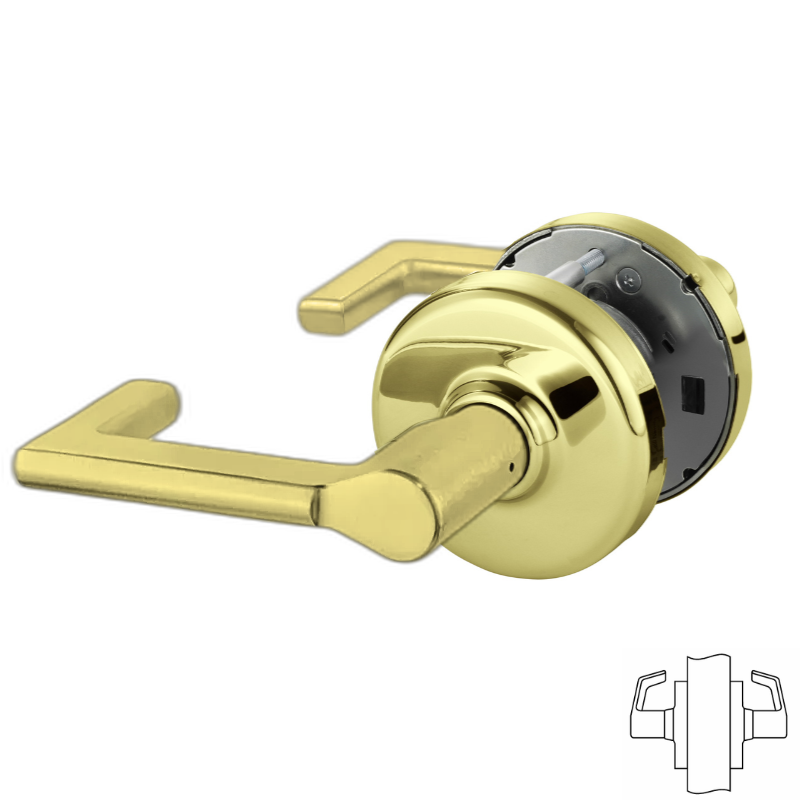

Corbin_Russwin_CLX3370-124D-605

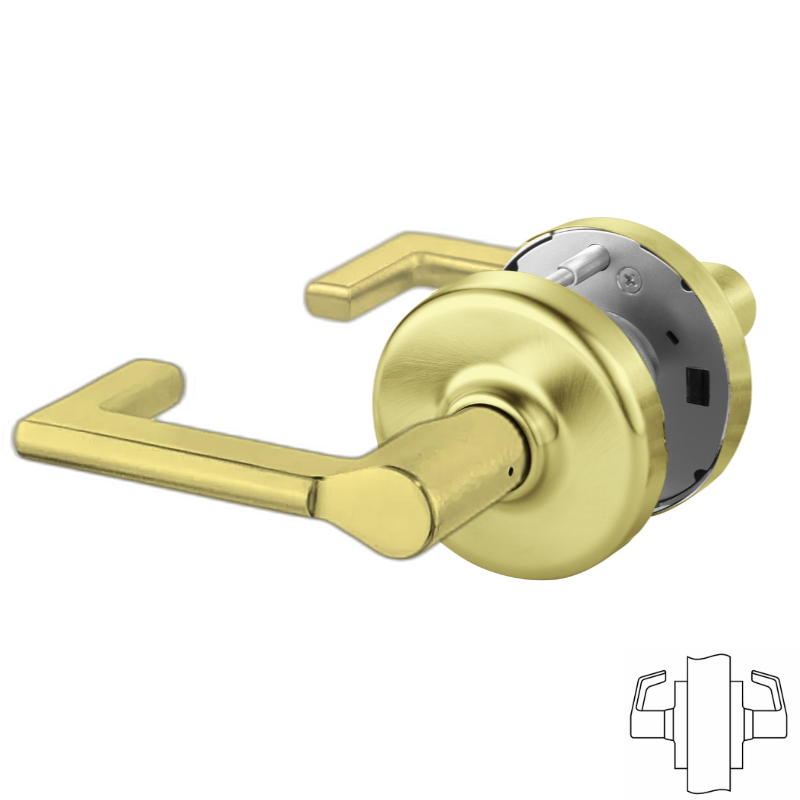

Corbin_Russwin_CLX3370-124D-606

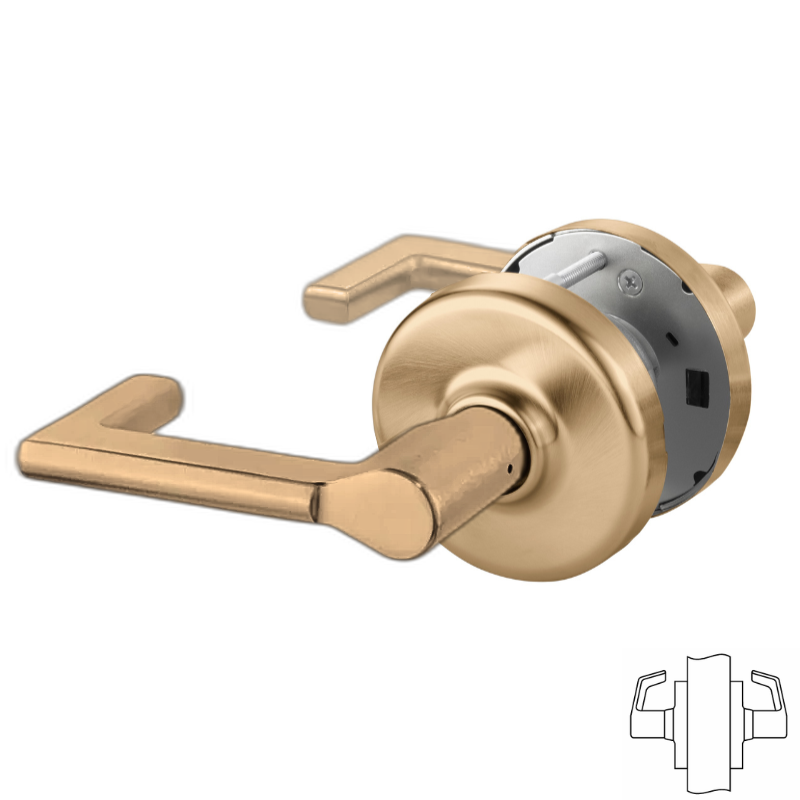

Corbin_Russwin_CLX3370-124D-612

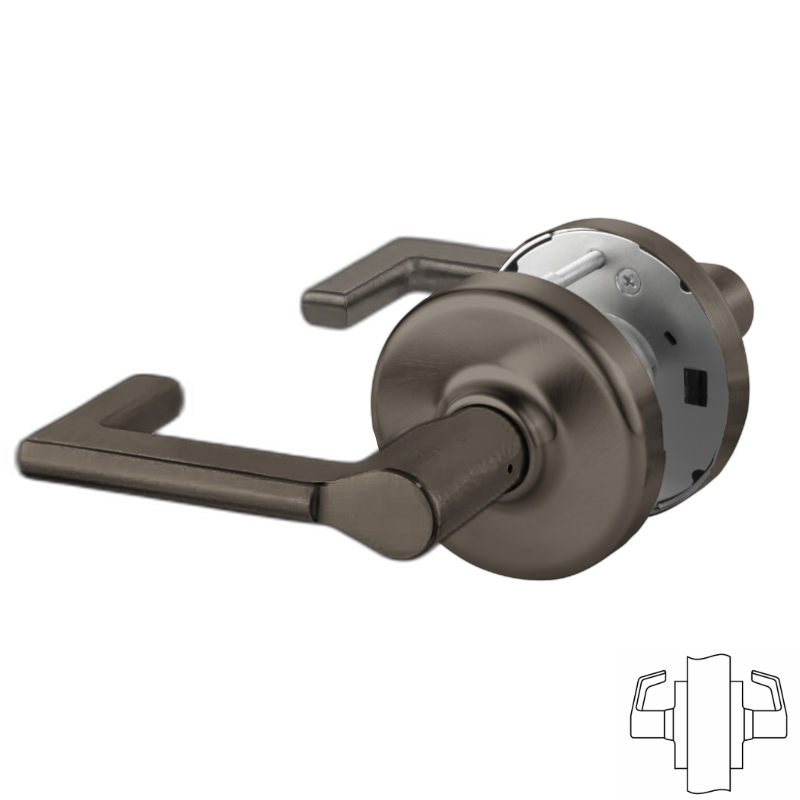

Corbin_Russwin_CLX3370-124D-613
Corbin_Russwin_CLX3370-124D-613E

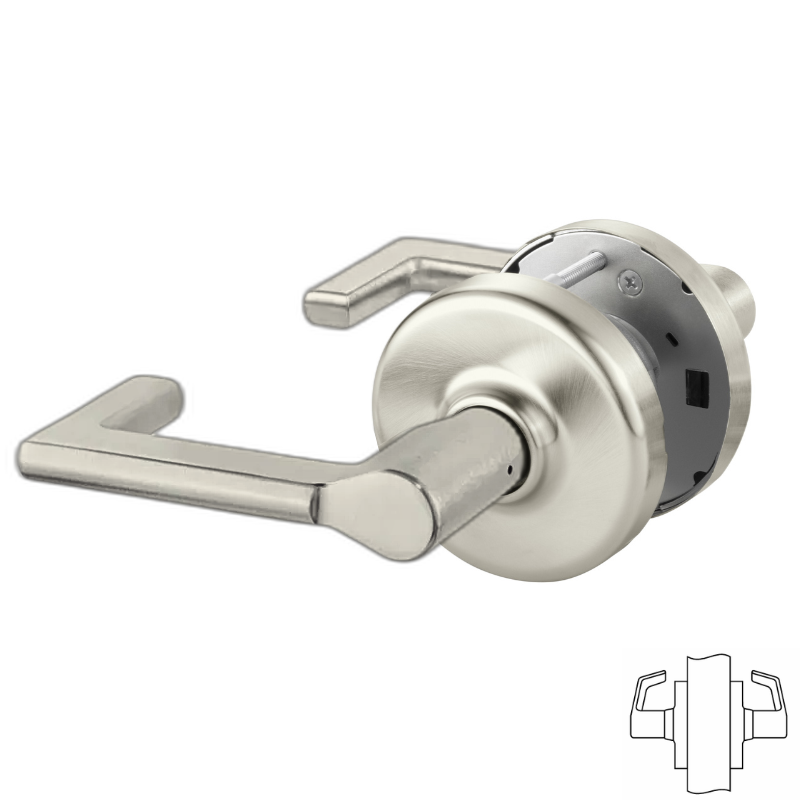

Corbin_Russwin_CLX3370-124D-619

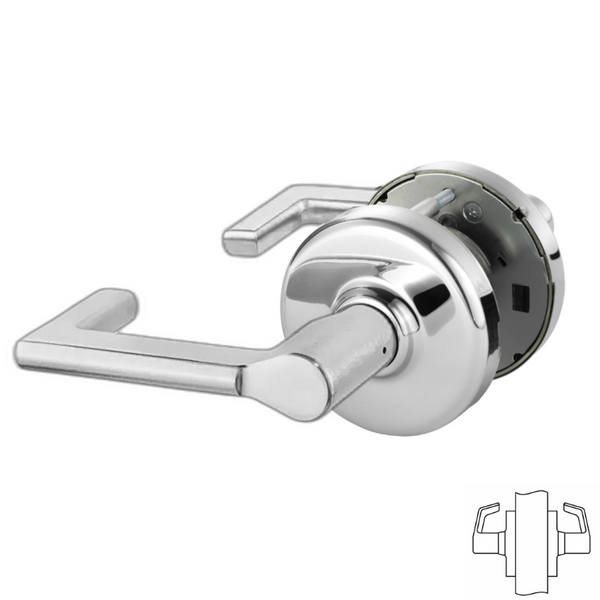

Corbin_Russwin_CLX3370-124D-625

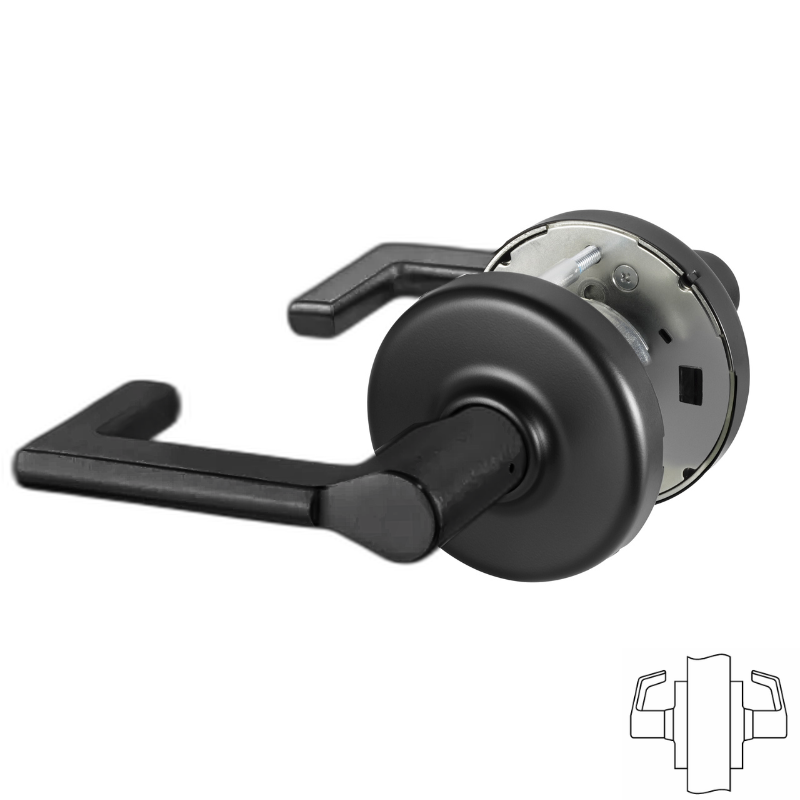

Corbin_Russwin_CLX3370-124D-BSP
Corbin_Russwin_CLX3370-124D-626
CLX3370Series
Corbin_Russwin_CLX3370-124D-605
Corbin_Russwin_CLX3370-124D-606
Corbin_Russwin_CLX3370-124D-612
Corbin_Russwin_CLX3370-124D-613
Corbin_Russwin_CLX3370-124D-613E
Corbin_Russwin_CLX3370-124D-619
Corbin_Russwin_CLX3370-124D-625
Corbin_Russwin_CLX3370-124D-BSP
All CORBIN RUSSWIN Products

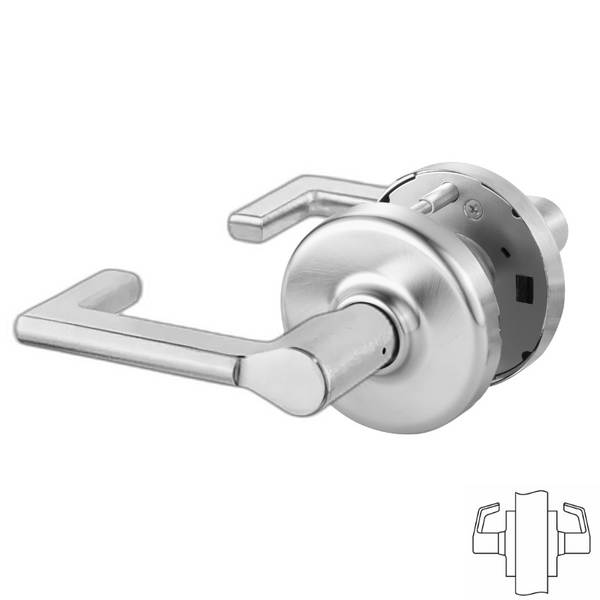

Corbin Russwin CLX3370-124D Cylindrical Lock, Full Dummy Function, Decorative Lever, Non-Keyed

  • SKU: CLX3370124D626
Dhs. 1,227.00/ea
Available (2 Weeks)
2 Weeks Lead Time

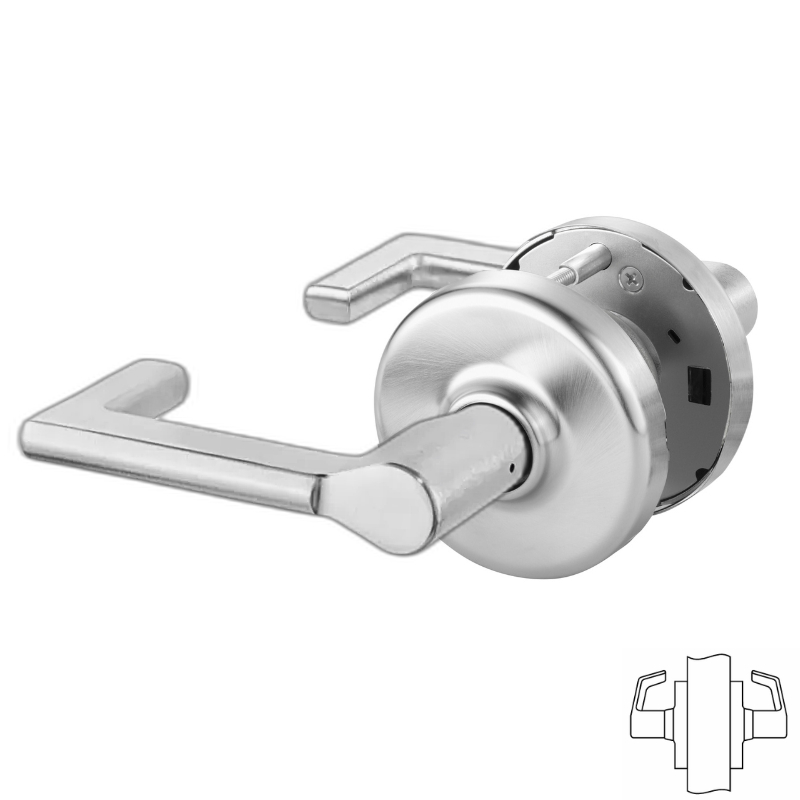

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3370-124D Full Dummy Function Cylindrical Lever Lockset, Georgia 124D Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3370-124D Cylindrical Lock features a full dummy function with a decorative lever, Georgia 124D Lever, and a 2-3/4" backset for added security. This non-keyed lockset is Grade 1, non-handed, and includes a 4-7/8" strike for reliable performance.

Function: Full Dummy Trim

  • Levers act as pulls only; no operation
  • Levers are rigid
Manufacturer Corbin Russwin
SKU CLX3370-124D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 70 - Full Dummy
Lever/Knob Design 124 - Georgia Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F20
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
