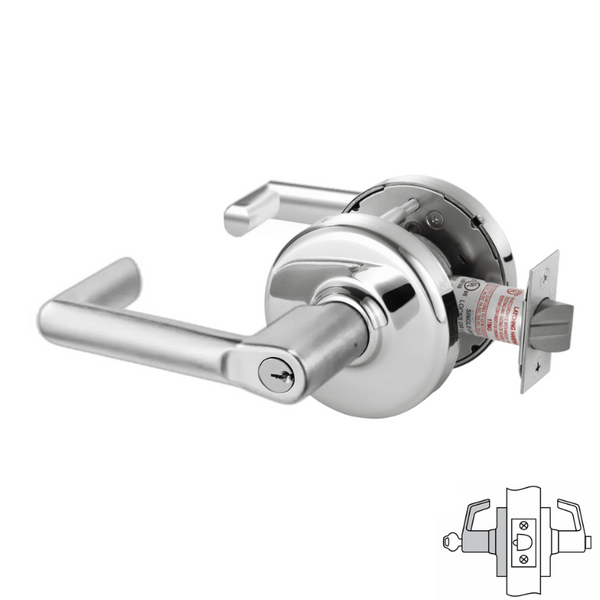

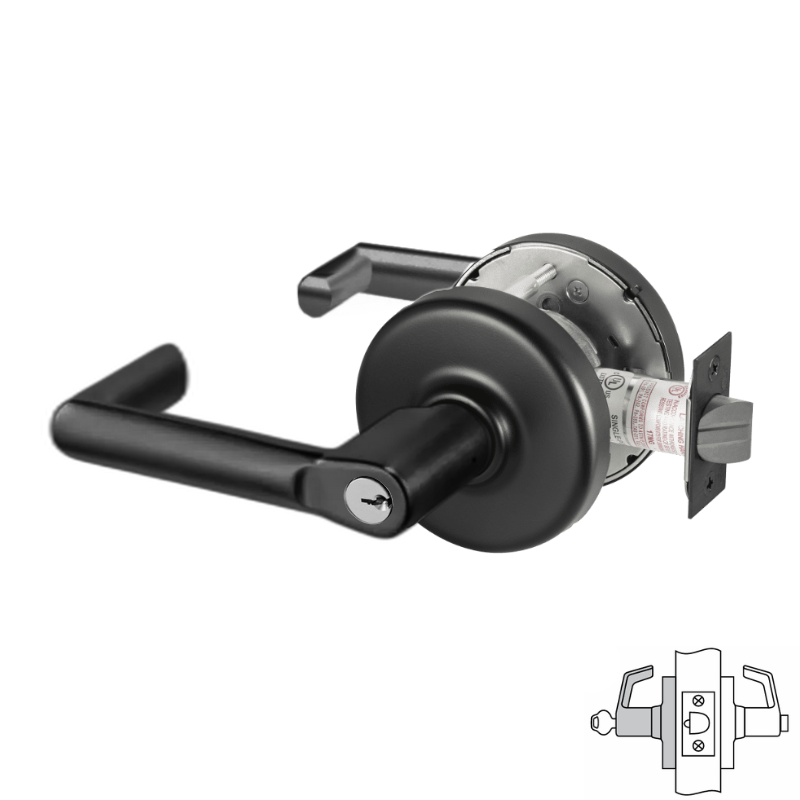

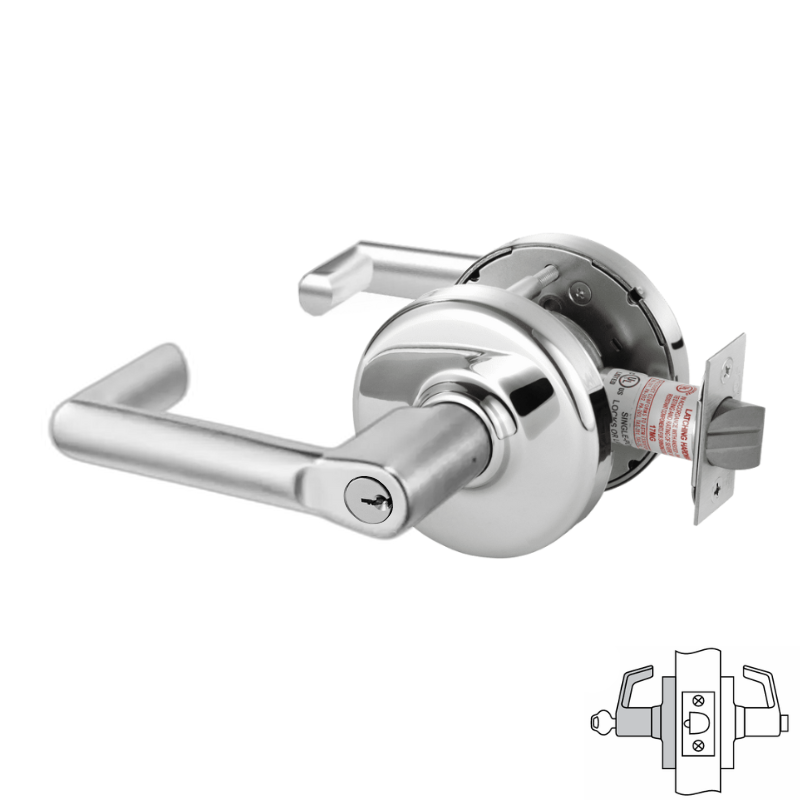

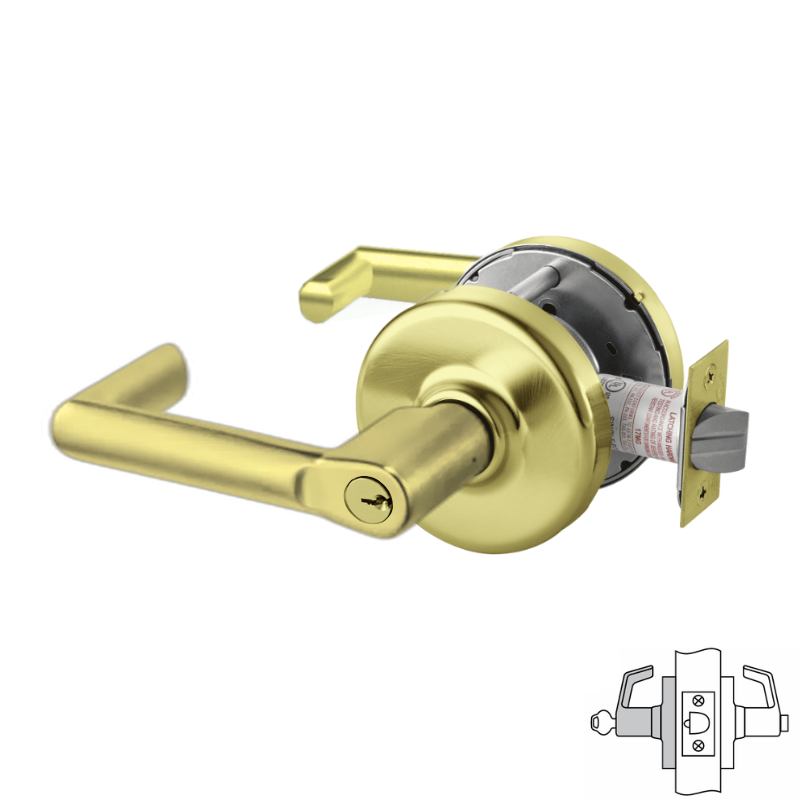

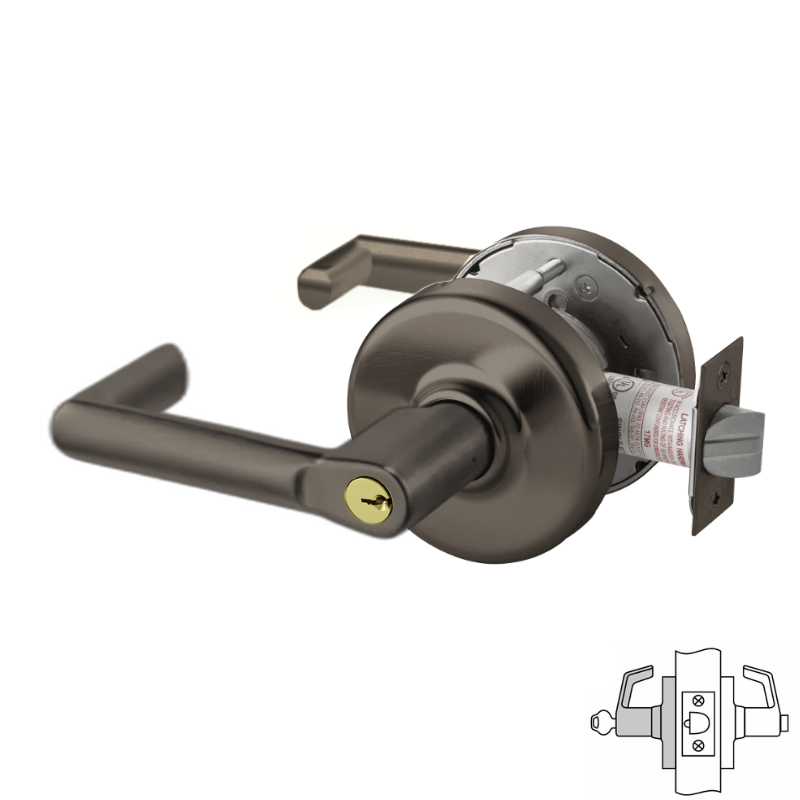

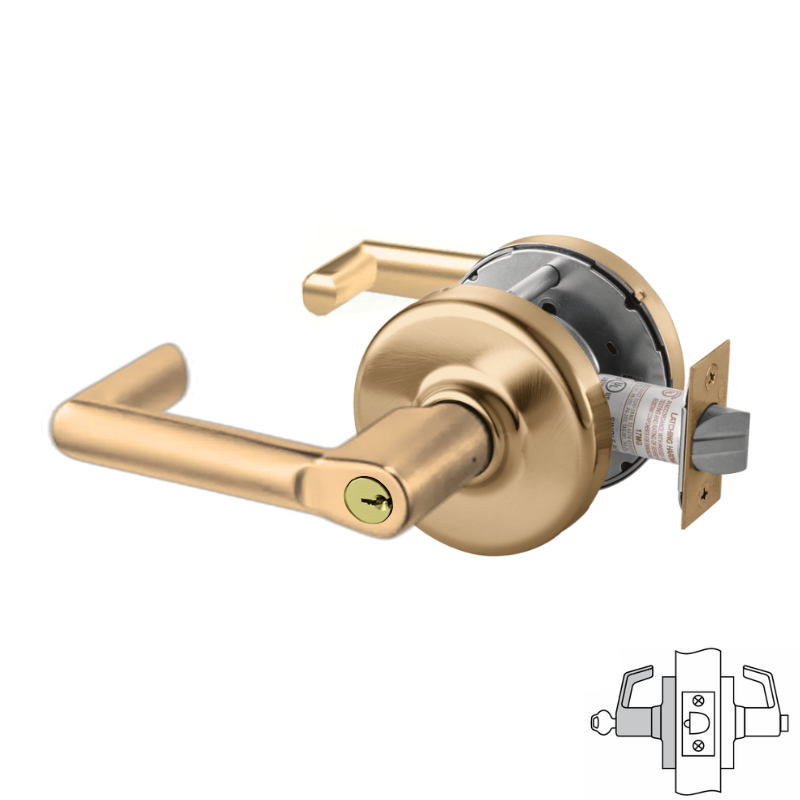

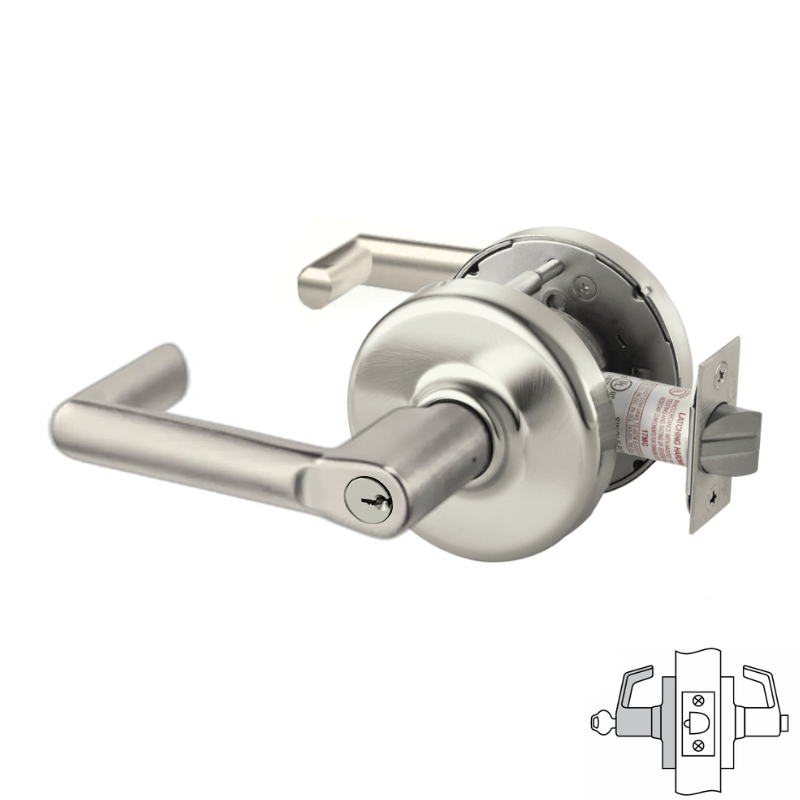

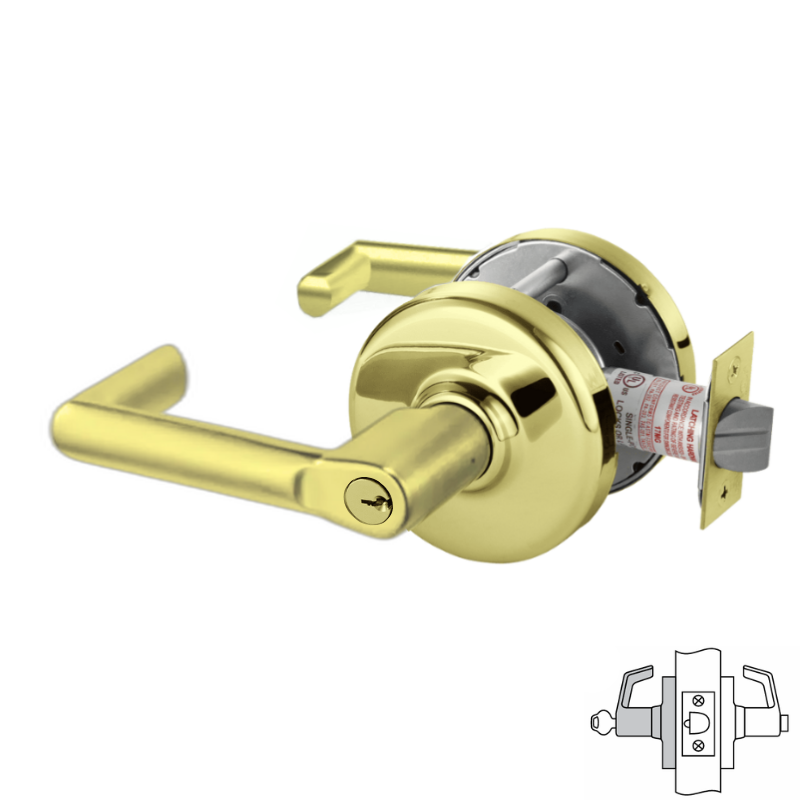

Corbin Russwin CLX3361-123D Cylindrical Lock, Entry or Office Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3361123D626

Corbin Russwin CLX3361-123D Cylindrical Lock, Entry or Office Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3361123D626
Sale priceDhs. 1,802.00/ea
Available (2 Weeks)
2 Weeks Lead Time

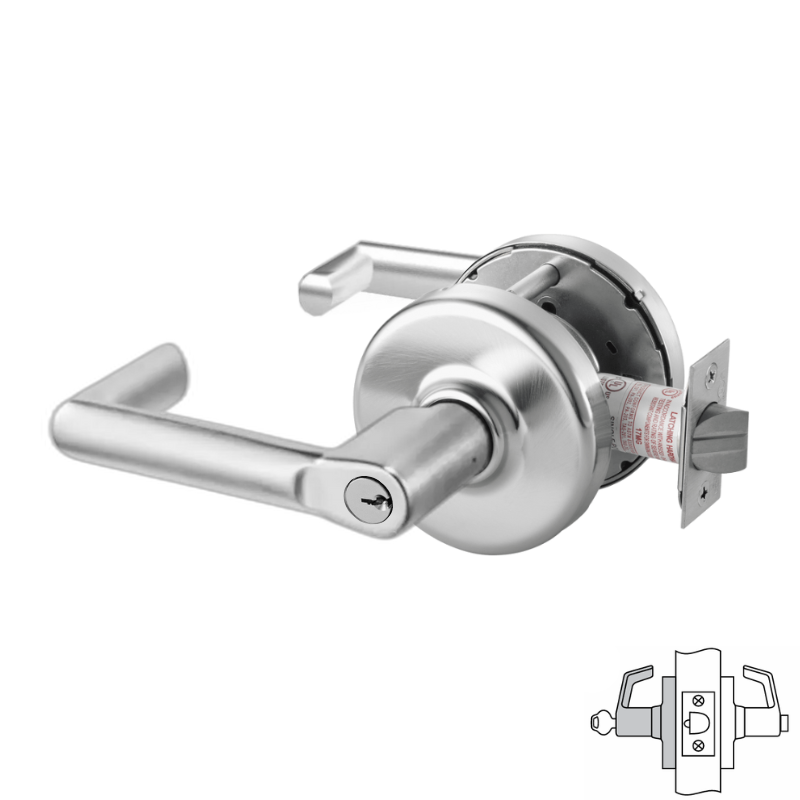

Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3361-123D Entry or Office Function Cylindrical Lever Lockset, Salvador 123D Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3361-123D Cylindrical Lock is a Grade 1 lock with a non-handed design, allowing for flexibility in its installation. It features the Salvador 123D decorative lever and a 2-3/4 inch backset. Additionally, it comes with a 4-7/8 inch strike for added security. This lock offers both entry and office functionality and offers multiple core options.

Function: Entry or Office

  • Deadlocking latchbolt by lever either side, except when push button locks outside lever
  • Push button released by turning inside lever or by key in outside lever (lever handle is freewheeling in locked position)
  • Closing door does not release push button
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

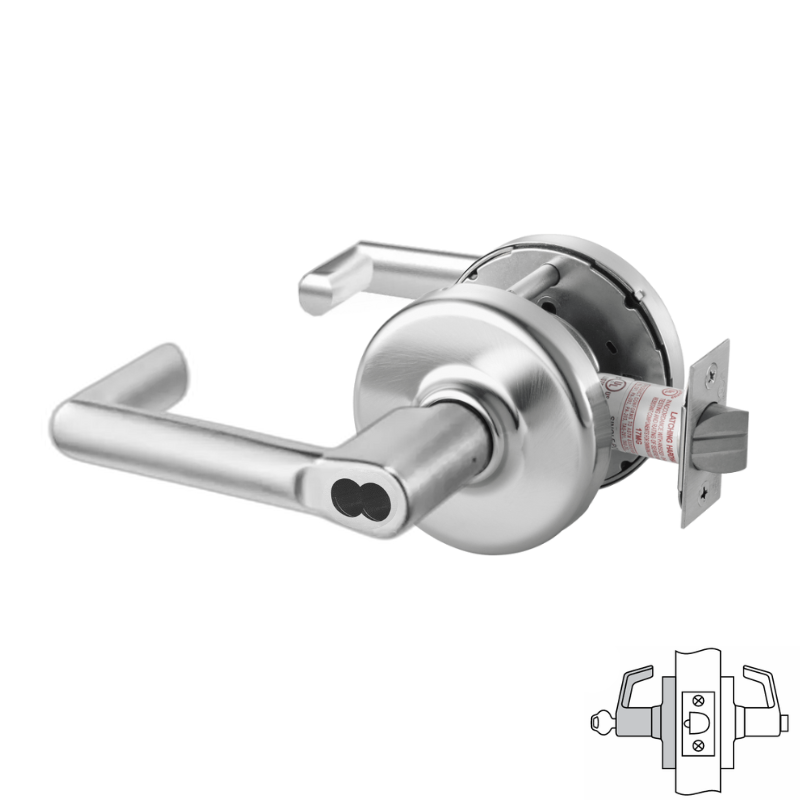

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3361 123D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 61 Entry or Office
Lever/Knob Design 123 - Salvador Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
