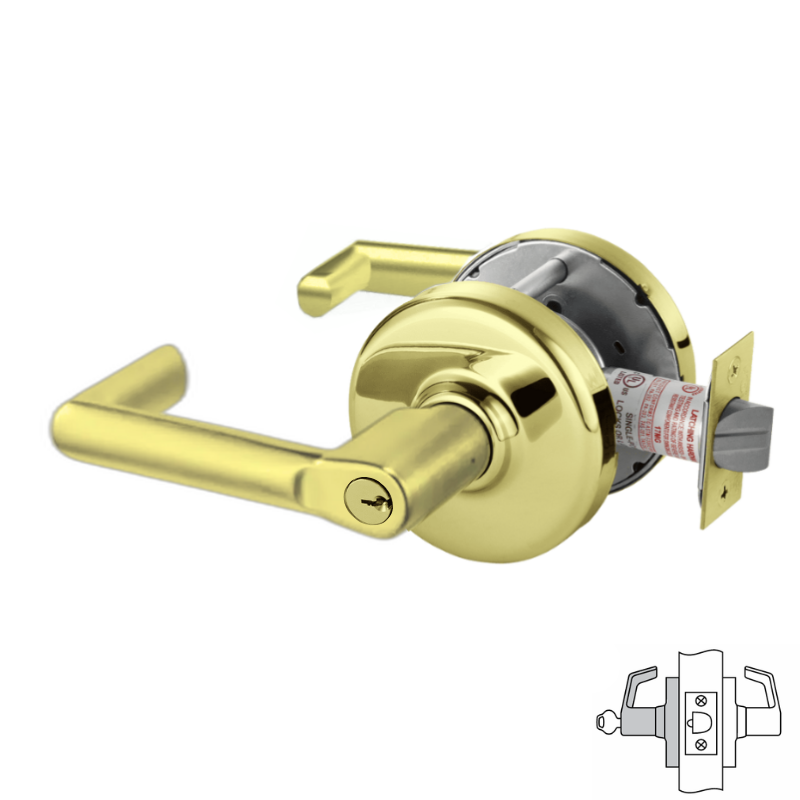

Corbin_Russwin_CLX3357-123D-605

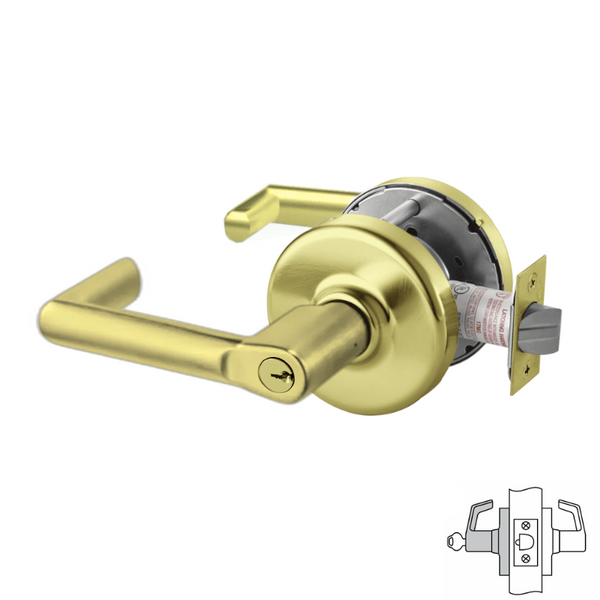

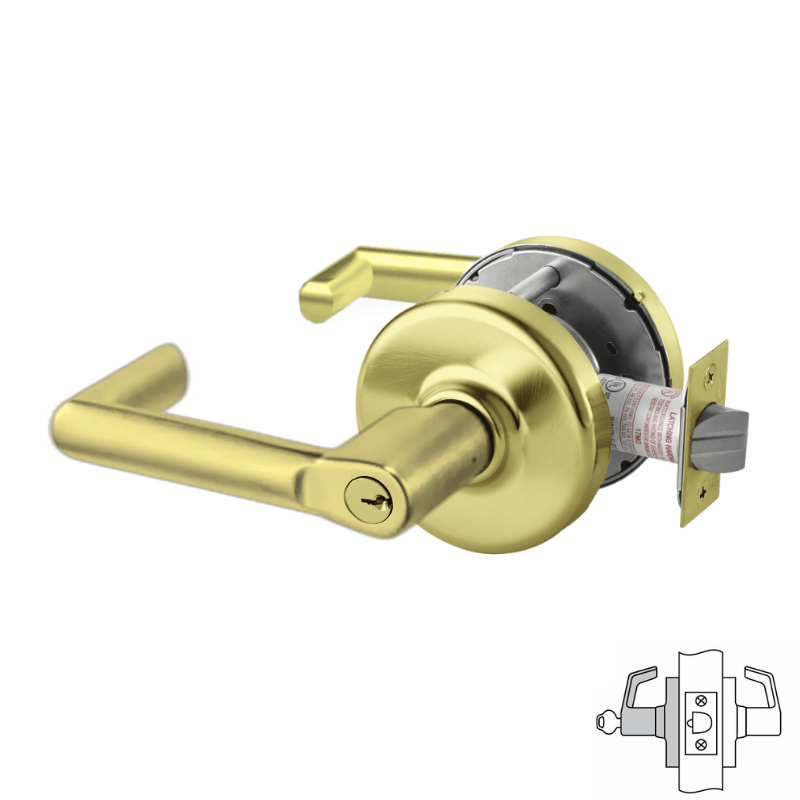

Corbin_Russwin_CLX3357-123D-606

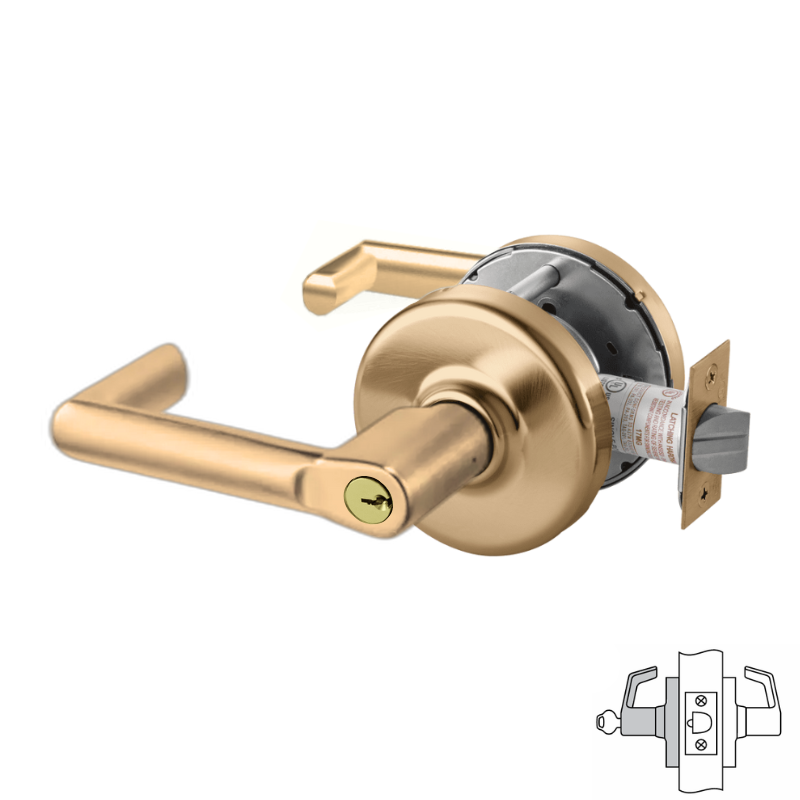

Corbin_Russwin_CLX3357-123D-612

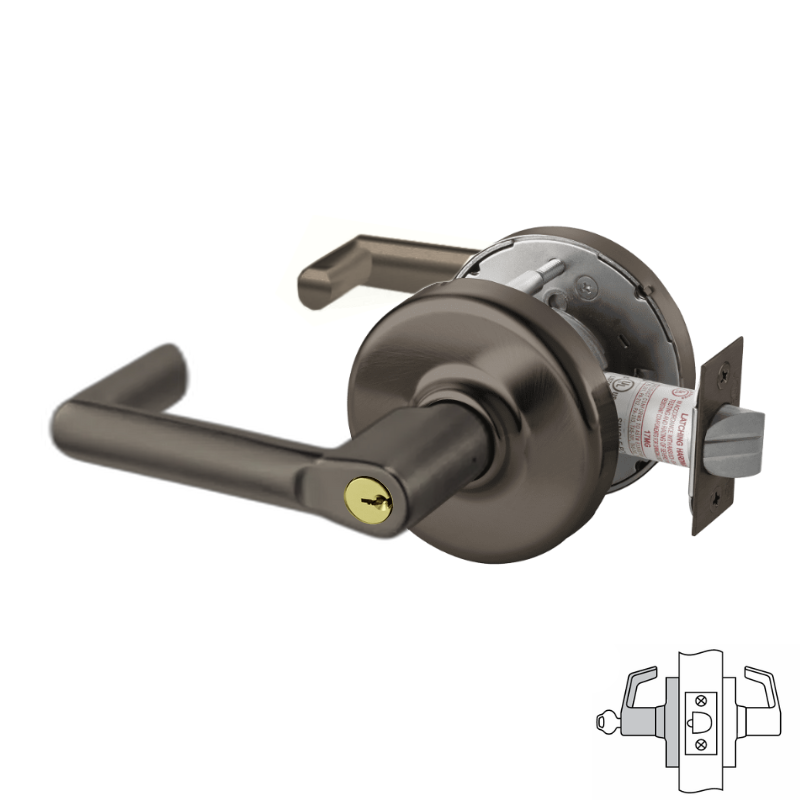

Corbin_Russwin_CLX3357-123D-613
Corbin_Russwin_CLX3357-123D-613E

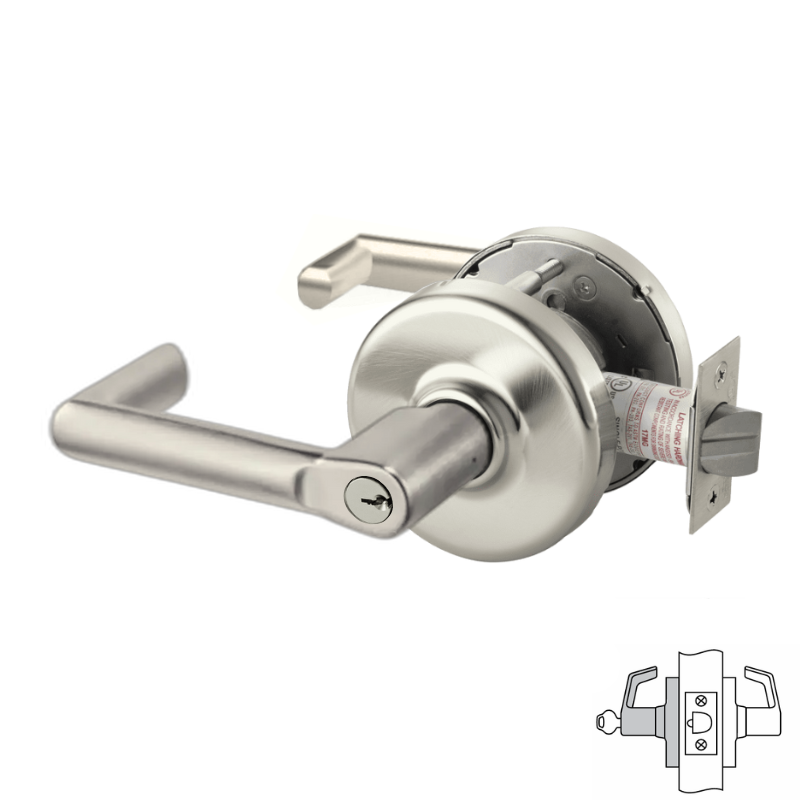

Corbin_Russwin_CLX3357-123D-619

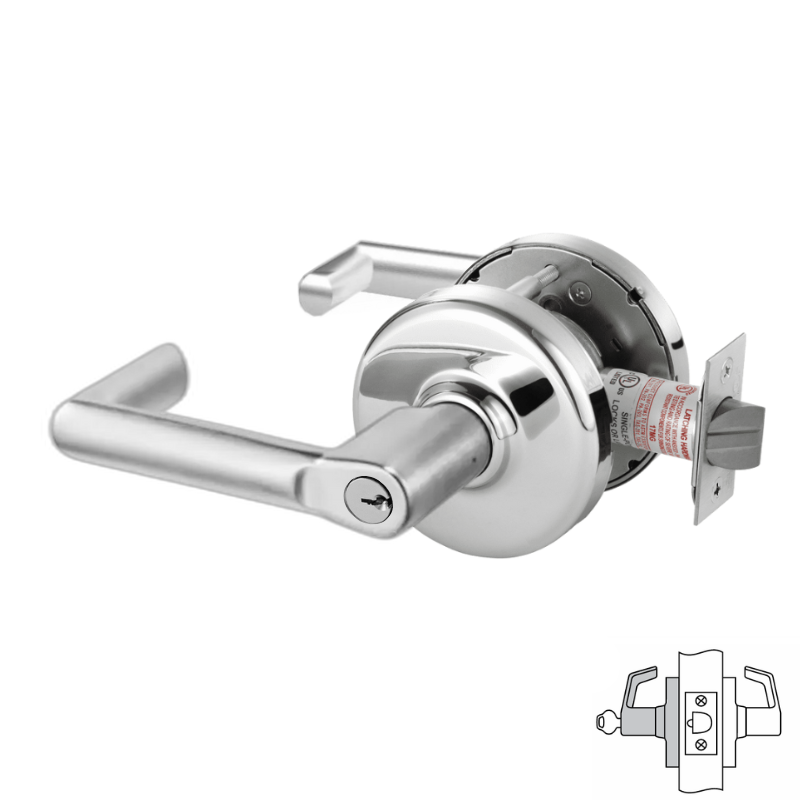

Corbin_Russwin_CLX3357-123D-625

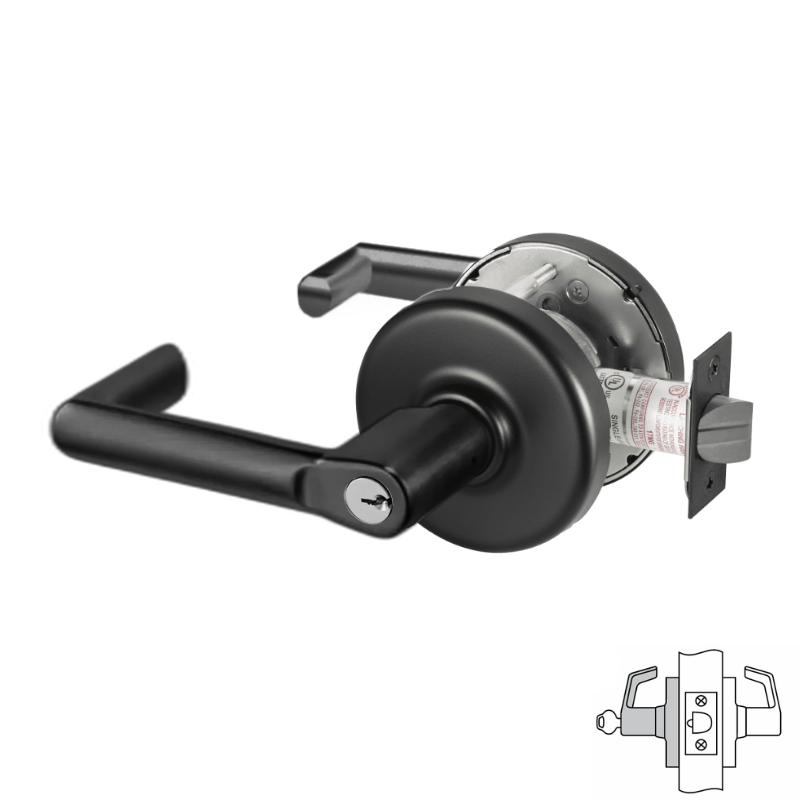

Corbin_Russwin_CLX3357-123D-BSP
Corbin_Russwin_CLX3357-123D-626
CLX3357Series
Corbin_Russwin_CLX3357-123D-626-M08
Corbin_Russwin_CLX3357-123D-626-CL6
Corbin_Russwin_CLX3357-123D-605
Corbin_Russwin_CLX3357-123D-606
Corbin_Russwin_CLX3357-123D-612
Corbin_Russwin_CLX3357-123D-613
Corbin_Russwin_CLX3357-123D-613E
Corbin_Russwin_CLX3357-123D-619
Corbin_Russwin_CLX3357-123D-625
Corbin_Russwin_CLX3357-123D-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3357-123D Cylindrical Lock, Storeroom or Closet Function, Decorative Lever, Multiple Core Options

  • SKU: CLX3357123D626
Dhs. 1,704.00/ea
Available (2 Weeks)
2 Weeks Lead Time

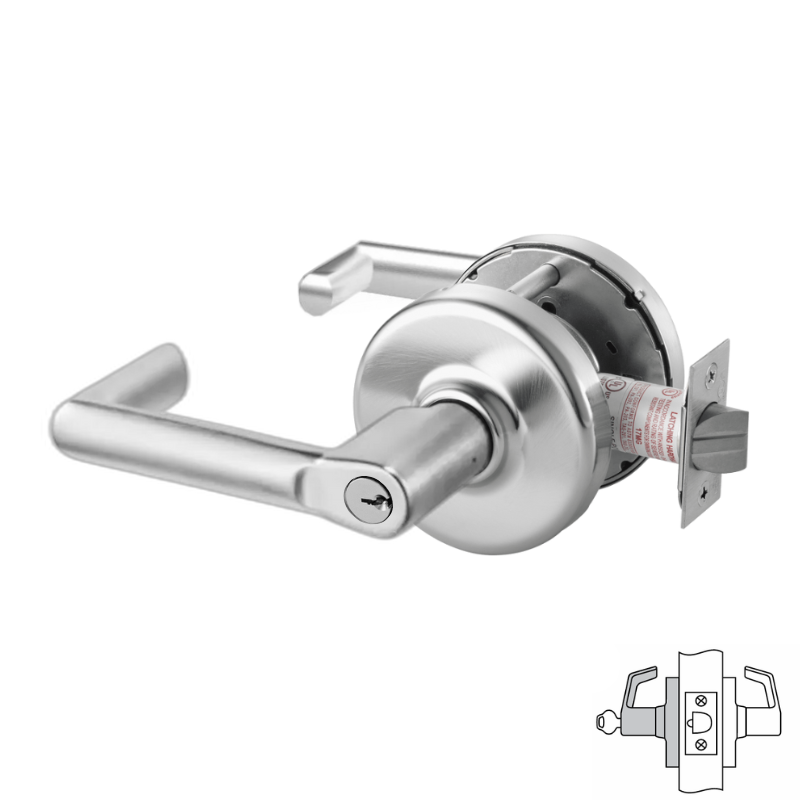

Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3357-123D Storeroom Function Cylindrical Lever Lockset, Salvador 123D Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3357-123D Cylindrical Lock offers a versatile solution for storeroom or closet applications. It features a decorative lever, multiple core options, and a 2-3/4" backset with a 4-7/8" strike. With its Grade 1 rating and non-handed design, this lock provides reliable and durable performance.

Function: Storeroom or Closet

  • Deadlocking latchbolt by key in outside lever or by rotating inside lever (lever handle is freewheeling in locked position)
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

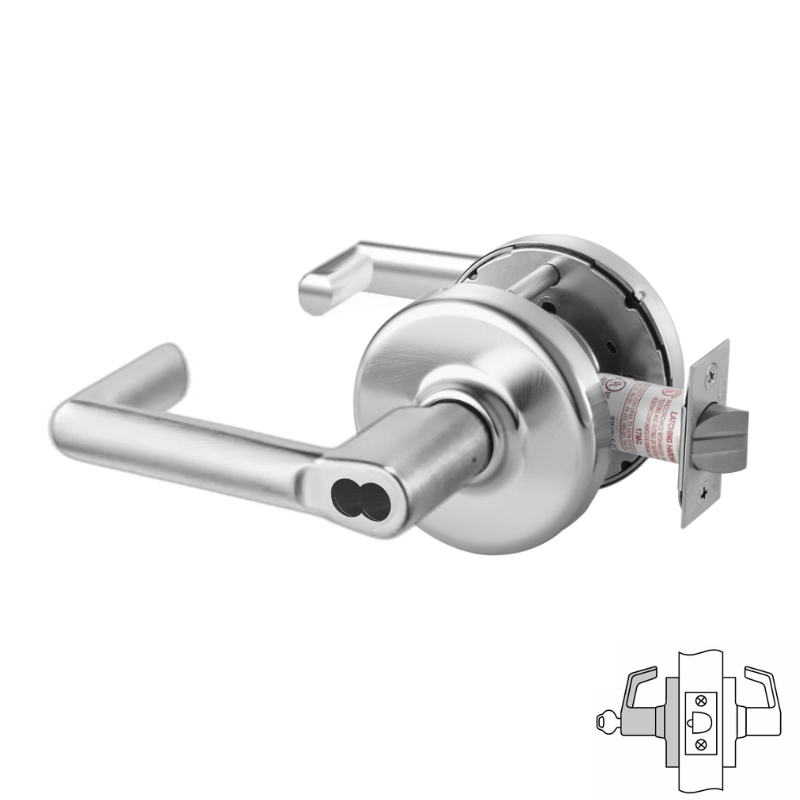

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3357 123D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 57 Storeroom or Closet
Lever/Knob Design 123 - Salvador Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
