Corbin Russwin CLX3352-PZD Cylindrical Lock, Classroom Intruder Function, Multiple Core Options

  • SKU: CLX3352PZD626

Corbin Russwin CLX3352-PZD Cylindrical Lock, Classroom Intruder Function, Multiple Core Options

  • SKU: CLX3352PZD626
Sale priceDhs. 2,030.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

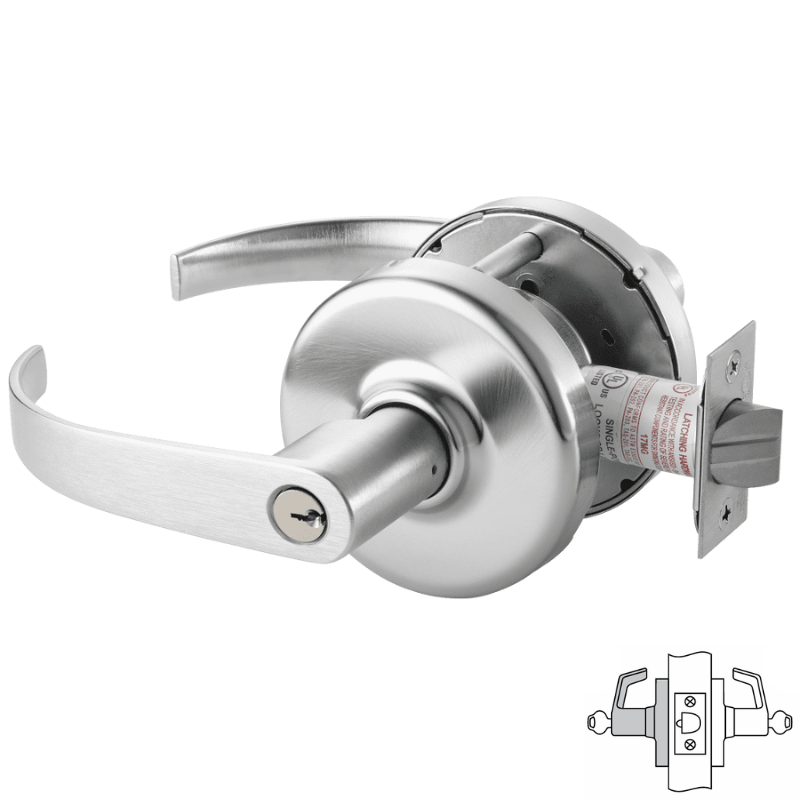

Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3352-PZD Classroom Intruder Function Cylindrical Lever Lockset, Princeton Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3352-PZD Cylindrical Lock offers a Classroom Intruder Function with Multiple Core Options. This Grade 1 lock features a Princeton Lever and a 2-3/4" backset with a 4-7/8" strike. It is designed for non-handed use and offers optimal security.

Function: Classroom Intruder

  • Deadlocking latchbolt by inside lever or outside lever except when key inside or outside locks outside lever (lever handle is freewheeling in the locked position)
  • Outside lever is locked and unlocked by turning the key in the inside or outside lever
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys

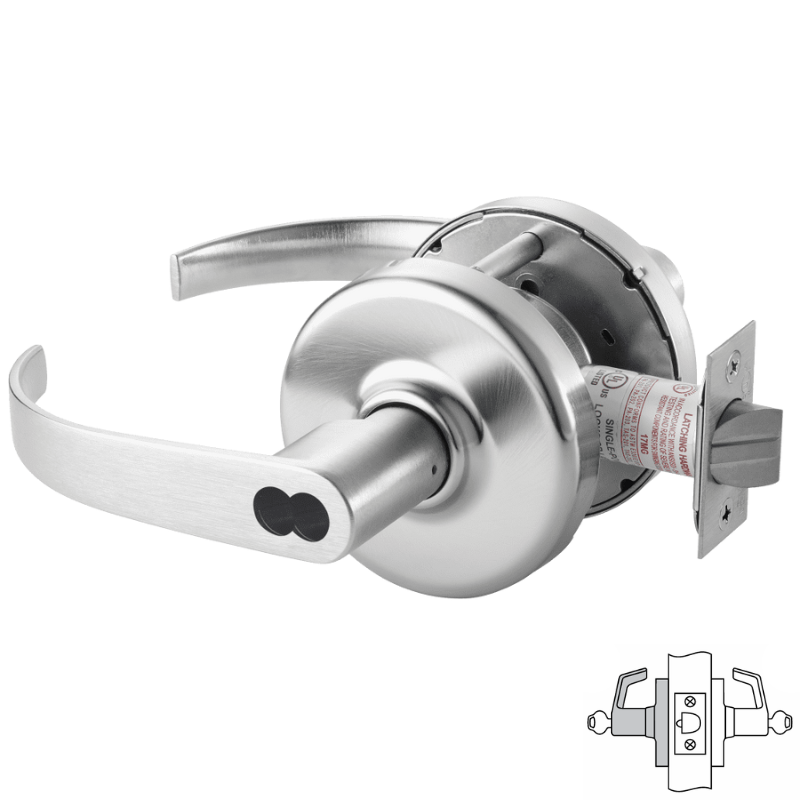

  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core
Manufacturer Corbin Russwin
SKU CLX3352 PZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 52- Classroom Intruder
Lever/Knob Design PZ - Princeton Lever
Lever/Knob Design Family Curved Return Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
