Corbin Russwin CLX3351-NZD Cylindrical Lock, Entrance Or Office Function, Multiple Core Options

  • SKU: CLX3351NZD626

Corbin Russwin CLX3351-NZD Cylindrical Lock, Entrance Or Office Function, Multiple Core Options

  • SKU: CLX3351NZD626
Sale priceDhs. 1,721.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome
Core Option: L4 Keyway (Standard)

Corbin Russwin CLX3351-NZD Entrance or Office Function Cylindrical Lever Lockset, Newport Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1, Non-Handed

The Corbin Russwin CLX3351-NZD Cylindrical Lock offers both entrance and office function with a variety of core options. Featuring the Newport Lever, 2-3/4" backset, 4-7/8" strike, and grade 1 rating, this non-handed lock is suitable for a variety of applications.

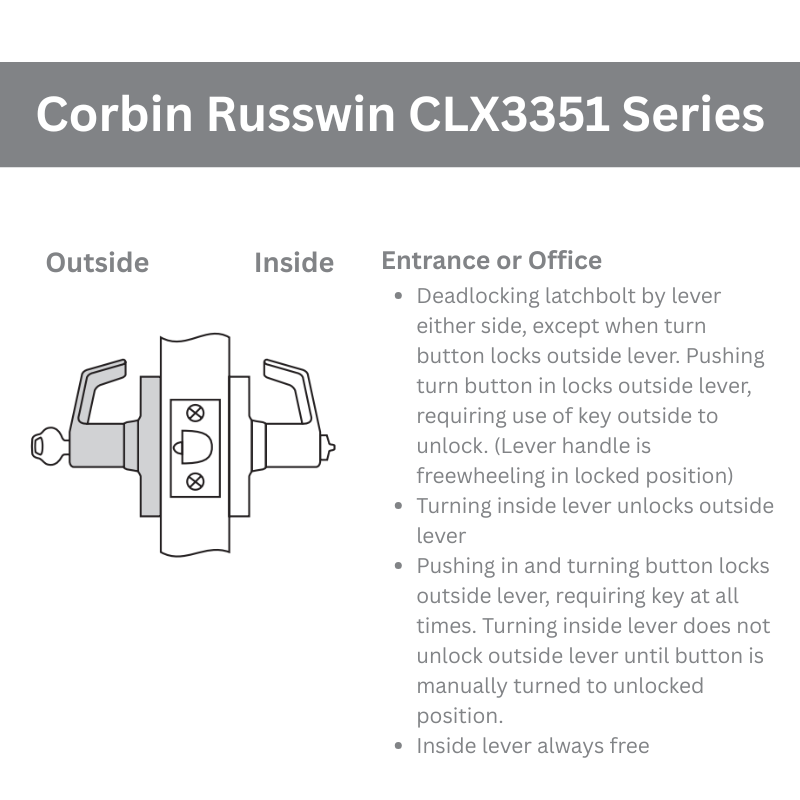

Function: Entrance or Office

  • Deadlocking latchbolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position)
  • Turning inside lever unlocks outside lever
  • Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until the button is manually turned to unlock position
  • Inside lever always free

Core Options:

  • L4 Keyway, Keyed Random, [2] Keys
  • CL6-LFIC 6-Pin Large Format Interchangeable Core, Less Core
  • M08-SFIC Prep, Small Format Interchangeable Core, Less Core



Manufacturer Corbin Russwin
SKU CLX3351 NZD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 51 Entrance or Office
Function Family Entrance/Office
ANSI Function F109 - Entry/Office
Lever/Knob Design NZ - Newport Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design D Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Conventional Cylinder, L4 Keyway, 6 Pin, 2 Cut Keys
CL6 - SFIC, Sold Less Core
M08 - LFIC, Sold Less Core
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 867F21
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number SA114
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
