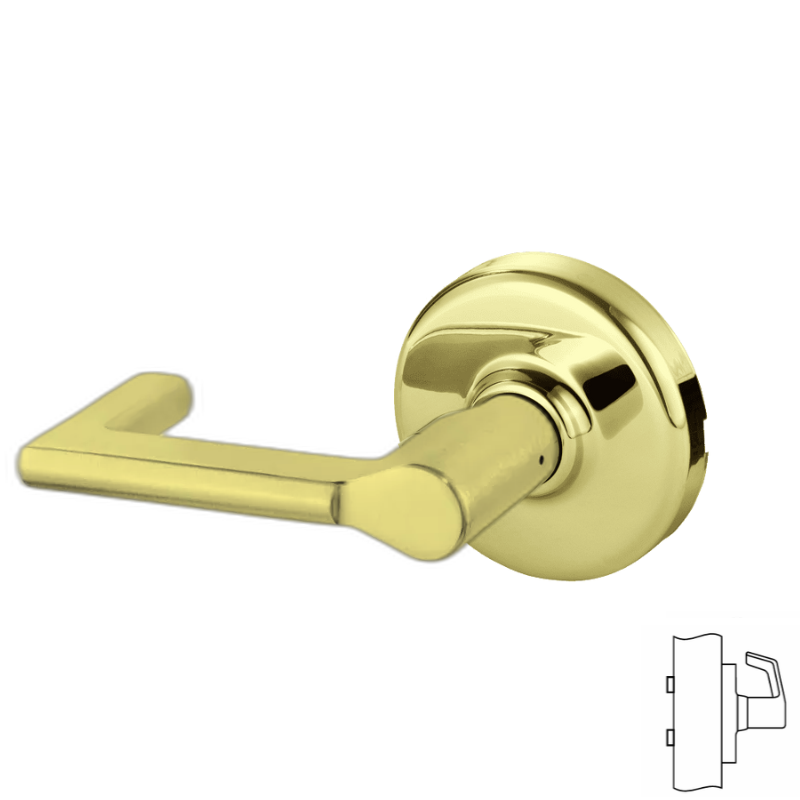

Corbin_Russwin_CLX3350-124D-605

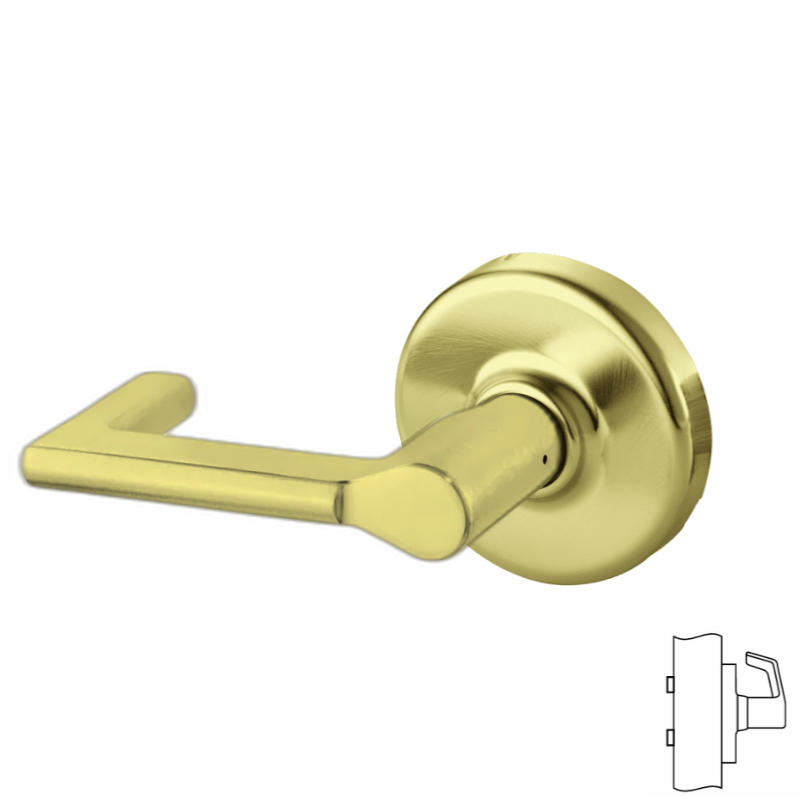

Corbin_Russwin_CLX3350-124D-606

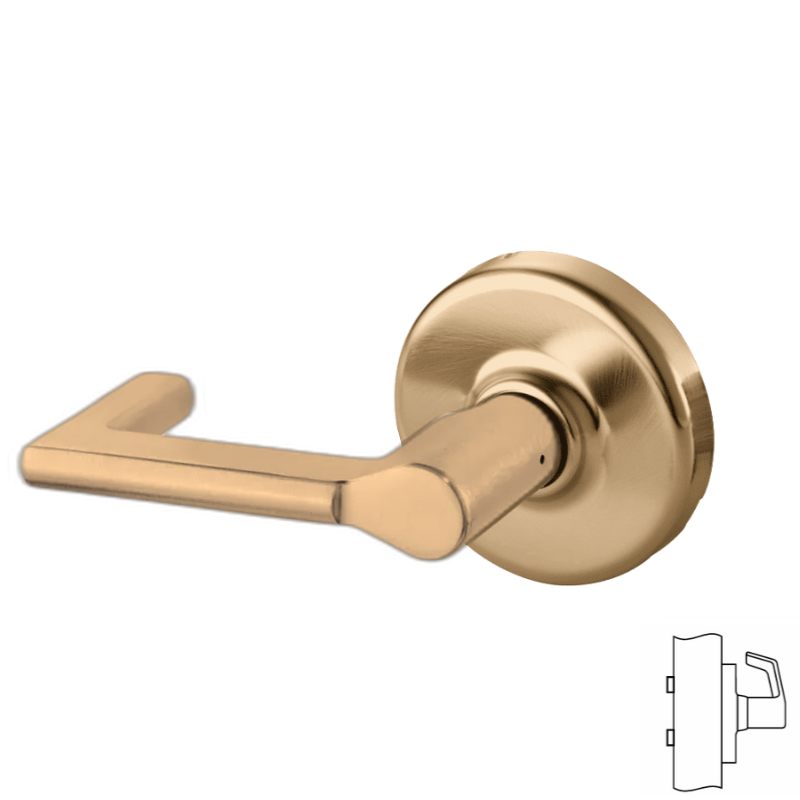

Corbin_Russwin_CLX3350-124D-612

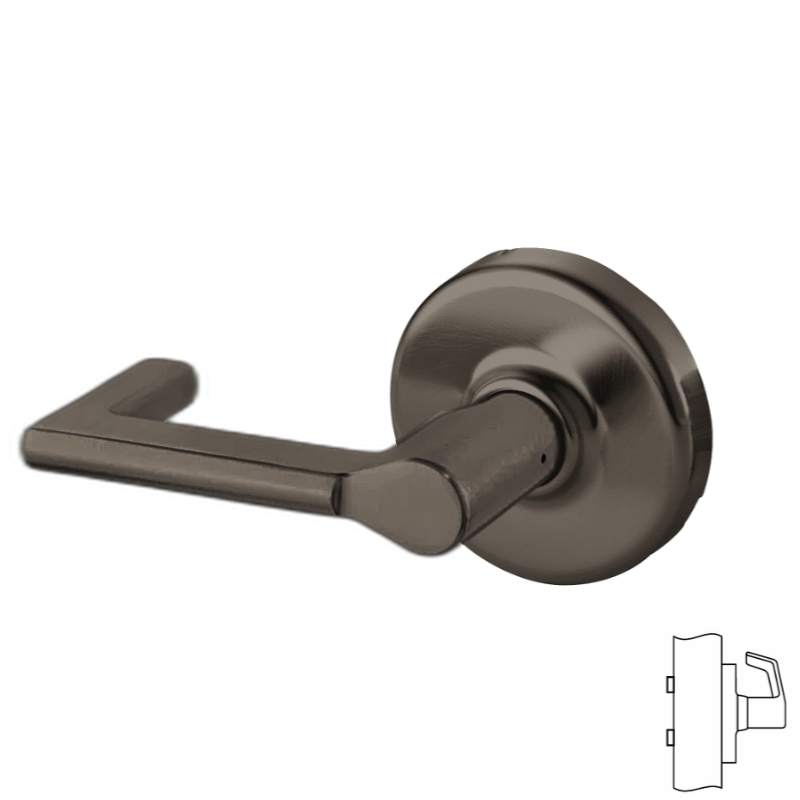

Corbin_Russwin_CLX3350-124D-613
Corbin_Russwin_CLX3350-124D-613E

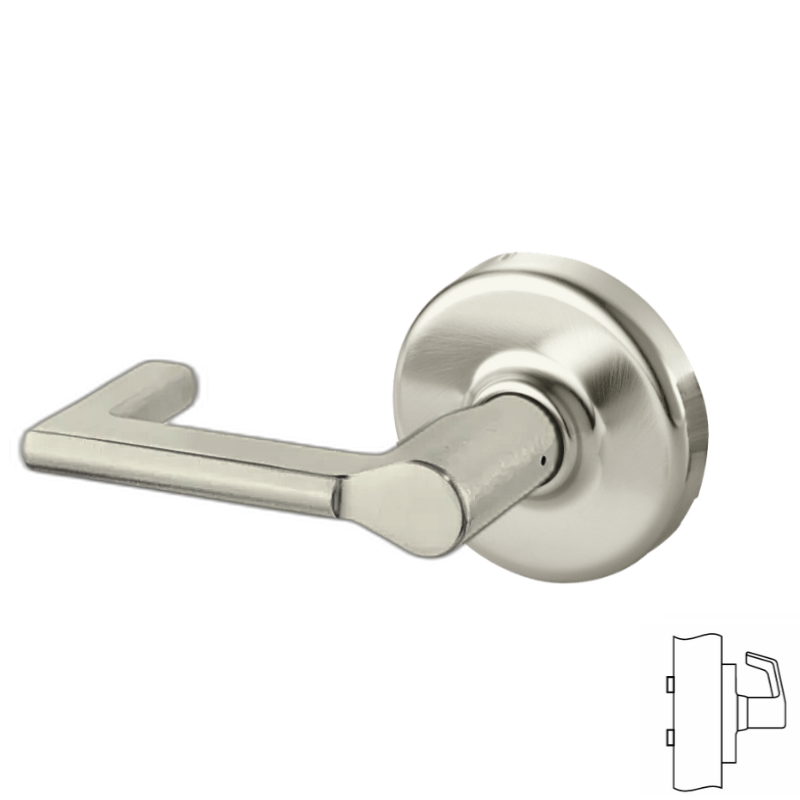

Corbin_Russwin_CLX3350-124D-619

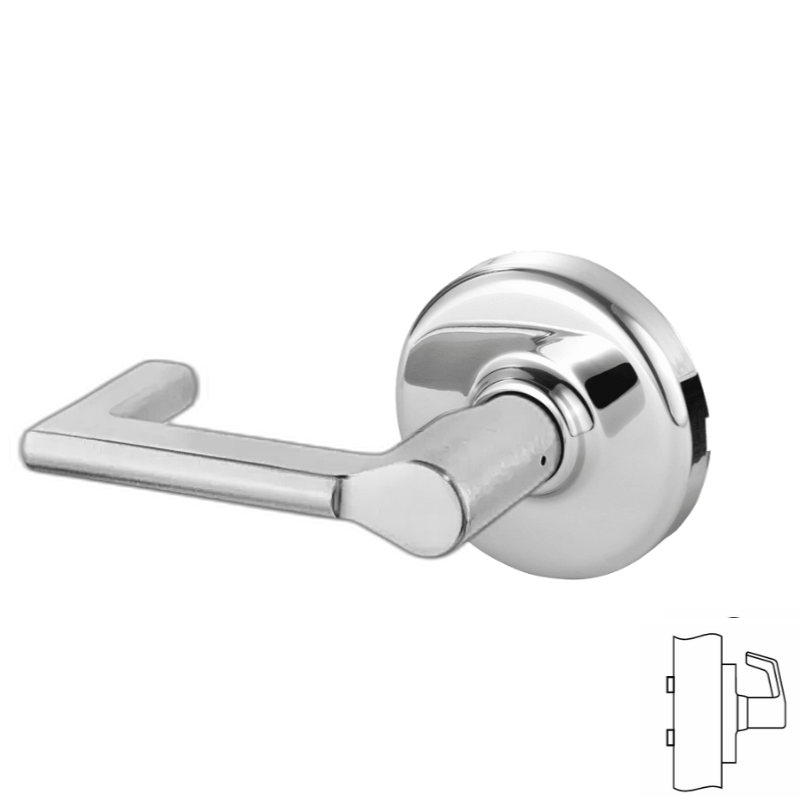

Corbin_Russwin_CLX3350-124D-625

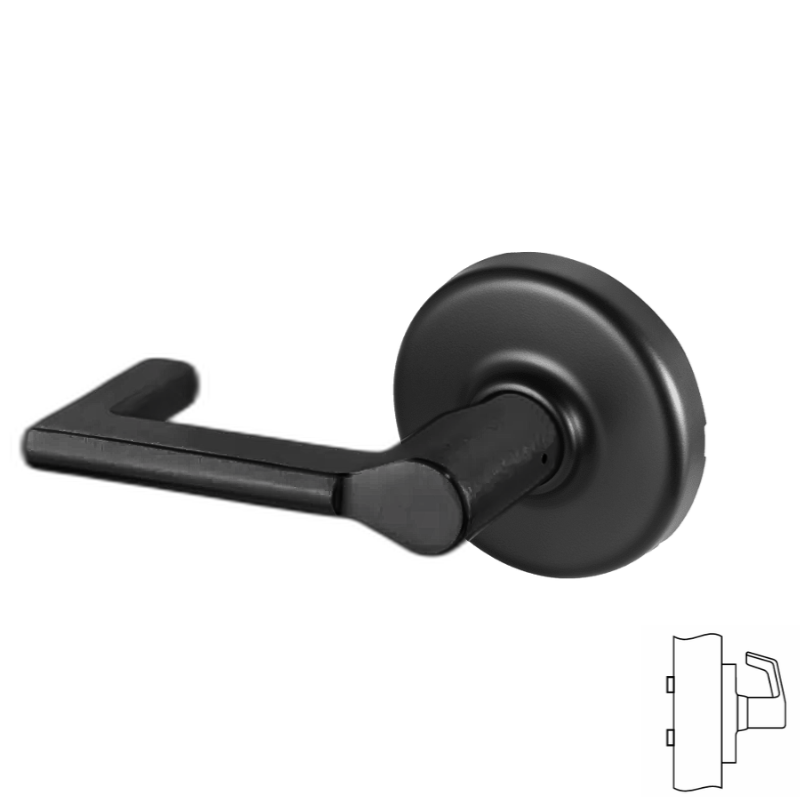

Corbin_Russwin_CLX3350-124D-BSP

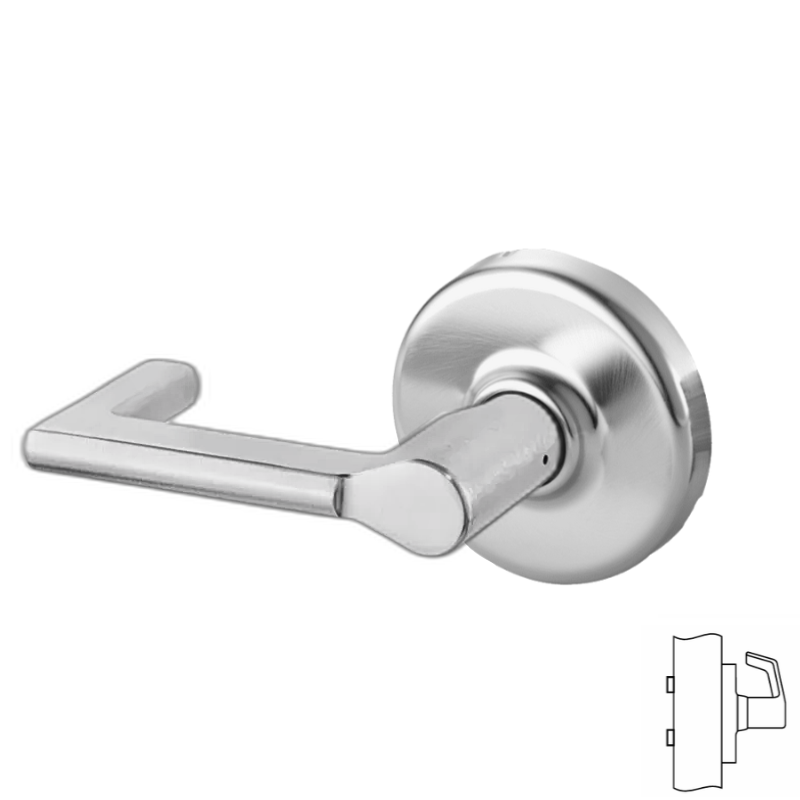

Corbin_Russwin_CLX3350-124D-626
CLX3350Series
Corbin_Russwin_CLX3350-124D-605
Corbin_Russwin_CLX3350-124D-606
Corbin_Russwin_CLX3350-124D-612
Corbin_Russwin_CLX3350-124D-613
Corbin_Russwin_CLX3350-124D-613E
Corbin_Russwin_CLX3350-124D-619
Corbin_Russwin_CLX3350-124D-625
Corbin_Russwin_CLX3350-124D-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3350-124D Cylindrical Lock, Half Dummy Function, Decorative Lever, Non-Keyed

  • SKU: CLX3350124D626
Dhs. 617.00/ea
Available (2 Weeks)
2 Weeks Lead Time

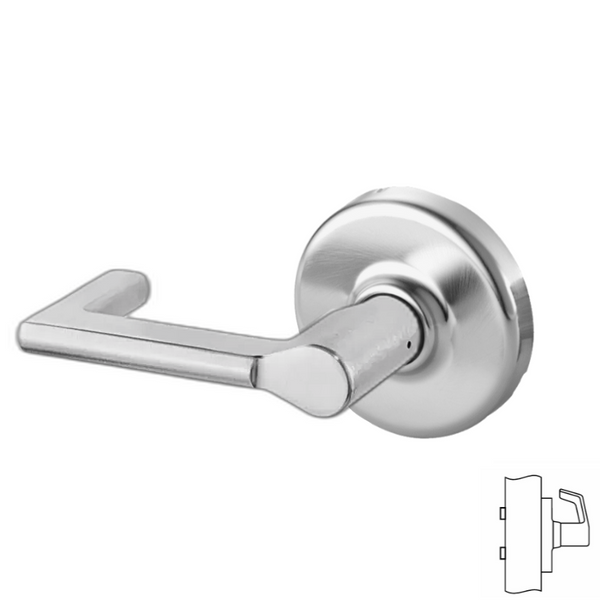

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3350-124D Half Dummy Function Cylindrical Lever Lockset, Georgia 124D Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3350-124D Cylindrical Lock offers a reliable, decorative solution with its Half Dummy Function, Georgia 124D Lever, and Non-Keyed design. This Grade 1 lock features a 2-3/4" backset and a 4-7/8" strike, making it a durable and practical choice. Additionally, the lock is non-handed, allowing for easy installation and use.

Function: Half Dummy

  • Lever acts as pull only; no operation
  • Lever is rigid
    Manufacturer Corbin Russwin
    SKU CLX3350-124D
    Grade Grade 1
    Installation Commercial
    Origin United States
    Unit of Measure Each
    Base Material Brass, Bronze
    UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
    Limited Warranty 20 Year Limited Warranty
    Fire Rated 3 Hours {A}
    Burglar Rated No
    Function 50-Half Dummy
    Lever/Knob Design 124- Georgia Lever
    Lever/Knob Design Family Straight Lever
    Rose/Escutcheon Design D Rose
    Rose/Escutcheon Dimensions 3-1/2"
    Cylinder Type Non-Keyed
    Handing Non-handed
    Door Thickness 1-3/4" to 2"
    Std. Latch Number 867F20
    Std. Latch Type Springlatch
    Std. Latch Backset Dim 2-3/4"
    Latch Bore Diameter 1"
    Lock Face Size 1-1/8" x 2-1/4"
    Bolt Projection 1/2"
    Bore Hole Diameter 2-1/8"
    Std. Strike Number SA114
    Std. Strike Type ANSI Curved Lip Strike
    Std. Strike Height 4-7/8"
    Std. Strike Width 1-1/4"
    Screws Wood/Machine Screws
    Product Type Cylindrical Lock
