Corbin Russwin CLX3320H-AZD Cylindrical Lock, Hospital Privacy Function, Non-Keyed

  • SKU: CLX3320HAZD626
Dhs. 1,579.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3320H-AZD Hospital Privacy Function Cylindrical Lever Lockset, Armstrong Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3320H-AZD Cylindrical Lock features Hospital Privacy Function, making it ideal for use in healthcare facilities. This lock comes with the Armstrong Lever and has a 2-3/4" backset and a 4-7/8" strike, ensuring secure and efficient access control. It is Non-Handed and meets Grade 1 standards, making it a reliable choice for any commercial setting.

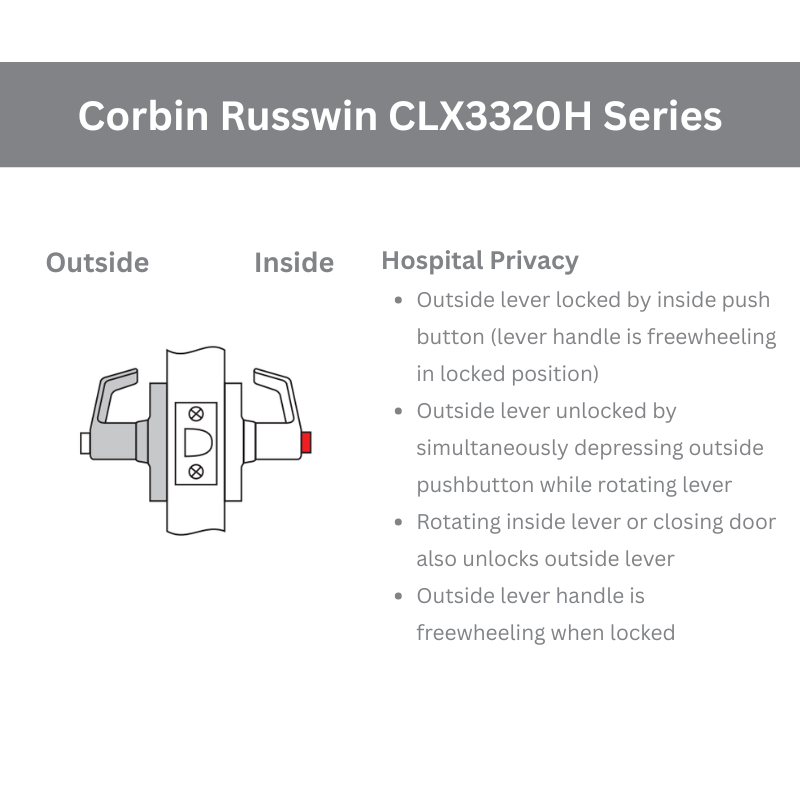

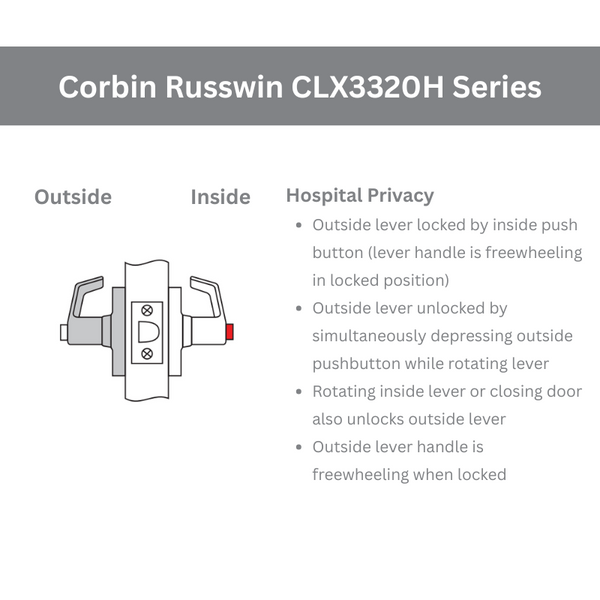

Function: Hospital Privacy

  • Outside lever locked by inside push button (lever handle is freewheeling in locked position)
  • Outside lever unlocked by simultaneously depressing outside pushbutton while rotating lever
  • Rotating inside lever or closing door also unlocks outside lever
  • Outside lever handle is freewheeling when locked
    Manufacturer Corbin Russwin
    SKU CLX3320H-AZD
    Grade Grade 1
    Installation Commercial
    Origin United States
    Unit of Measure Each
    Base Material Brass, Bronze
    UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
    Limited Warranty 20 Year Limited Warranty
    Fire Rated 3 Hours {A}
    Burglar Rated No
    Function 20H-Hospital Privacy
    Lever/Knob Design AZ - Armstrong Lever
    Lever/Knob Design Family Straight Lever
    Rose/Escutcheon Design
    D Rose
    Rose/Escutcheon Dimensions 3-1/2"
    Cylinder Type Non-Keyed
    Handing Non-handed
    Door Thickness 1-3/4" to 2"
    Std. Latch Number 867F20
    Std. Latch Type Springlatch
    Std. Latch Backset Dim 2-3/4"
    Latch Bore Diameter 1"
    Lock Face Size 1-1/8" x 2-1/4"
    Bolt Projection 1/2"
    Bore Hole Diameter 2-1/8"
    Std. Strike Number SA114
    Std. Strike Type ANSI Curved Lip Strike
    Std. Strike Height 4-7/8"
    Std. Strike Width 1-1/4"
    Screws Wood/Machine Screws
    Product Type Cylindrical Lock
