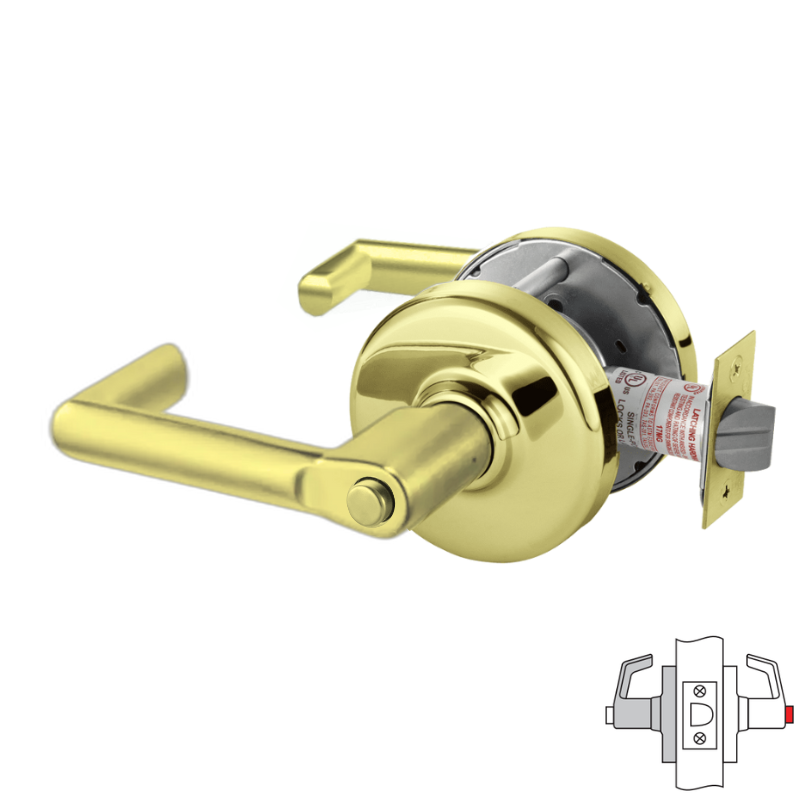

Corbin_Russwin_CLX3320H-123D-605
Corbin_Russwin_CLX3320H-123D-606

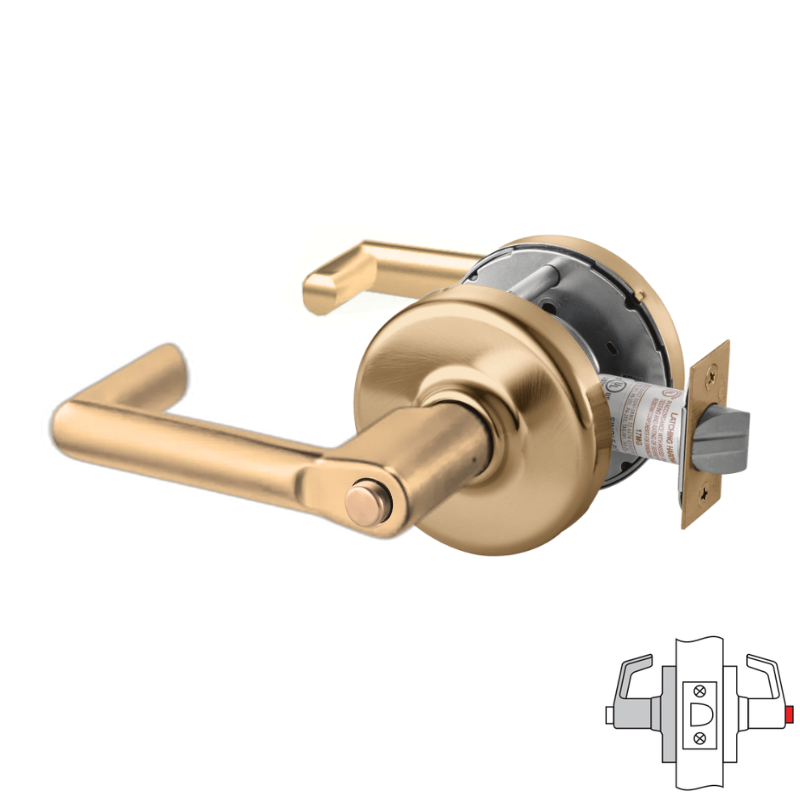

Corbin_Russwin_CLX3320H-123D-612

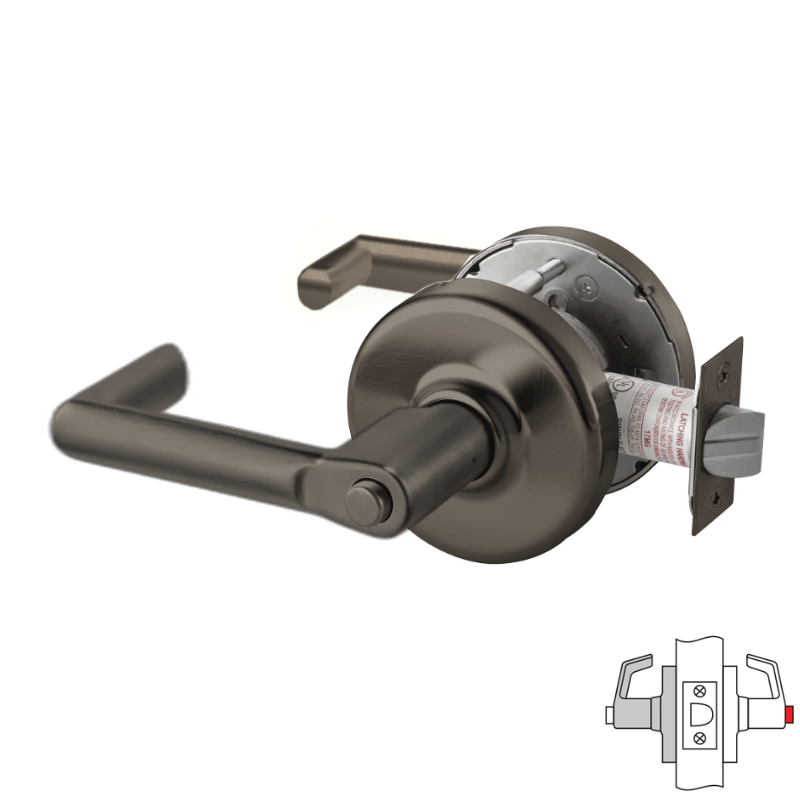

Corbin_Russwin_CLX3320H-123D-613
Corbin_Russwin_CLX3320H-123D-613E

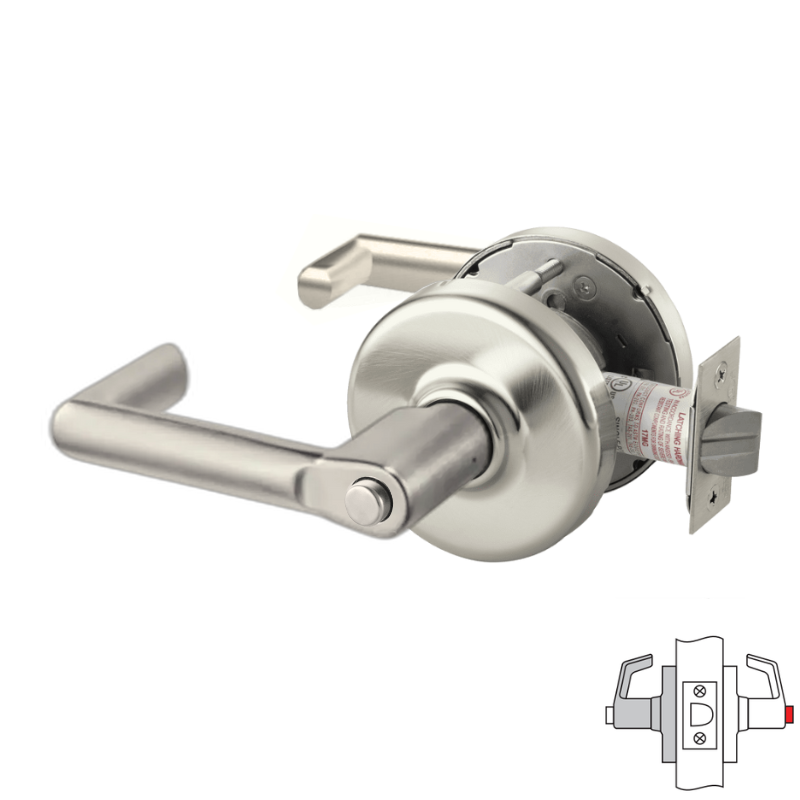

Corbin_Russwin_CLX3320H-123D-619

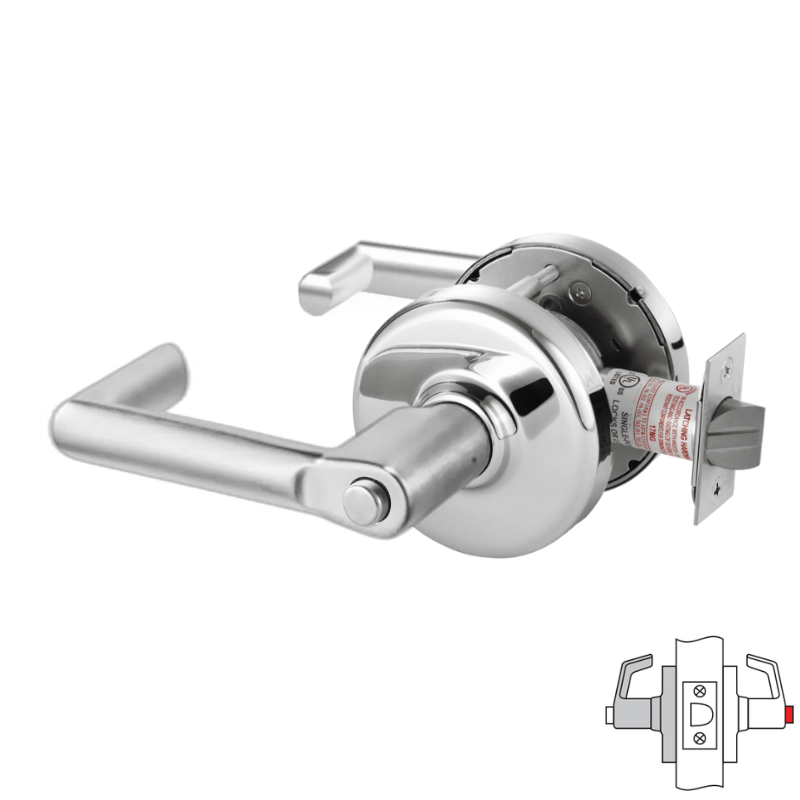

Corbin_Russwin_CLX3320H-123D-625

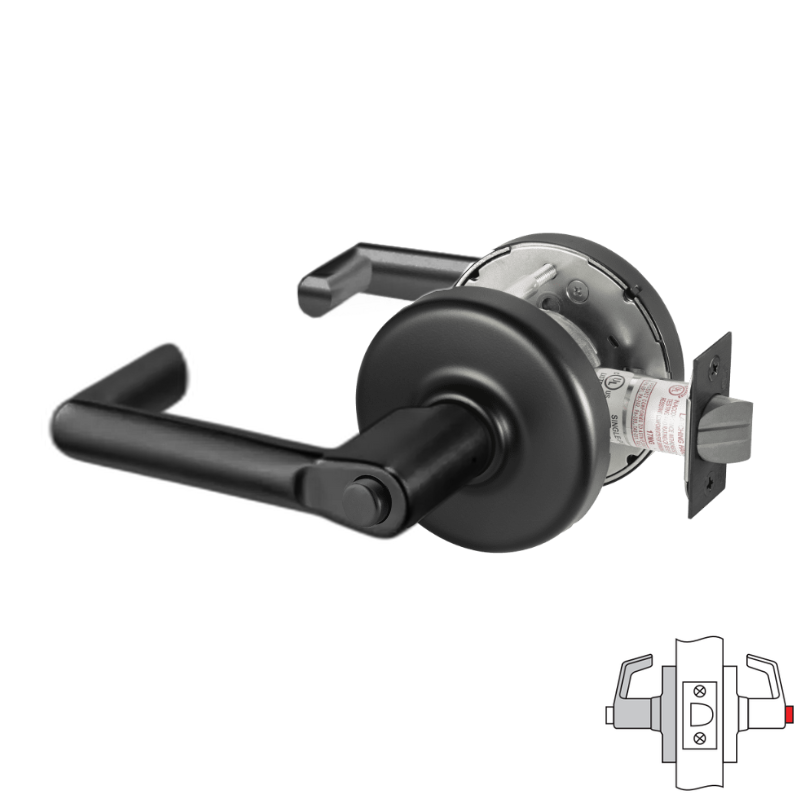

Corbin_Russwin_CLX3320H-123D-BSP
Corbin_Russwin_CLX3320H-123D-626
CLX3320HSeries
Corbin_Russwin_CLX3320H-123D-605
Corbin_Russwin_CLX3320H-123D-606
Corbin_Russwin_CLX3320H-123D-612
Corbin_Russwin_CLX3320H-123D-613
Corbin_Russwin_CLX3320H-123D-613E
Corbin_Russwin_CLX3320H-123D-619
Corbin_Russwin_CLX3320H-123D-625
Corbin_Russwin_CLX3320H-123D-BSP
All CORBIN RUSSWIN Products

Corbin Russwin CLX3320H-123D Cylindrical Lock, Hospital Privacy Function, Decorative Lever, Non-Keyed

  • SKU: CLX3320H123D626
Dhs. 1,579.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

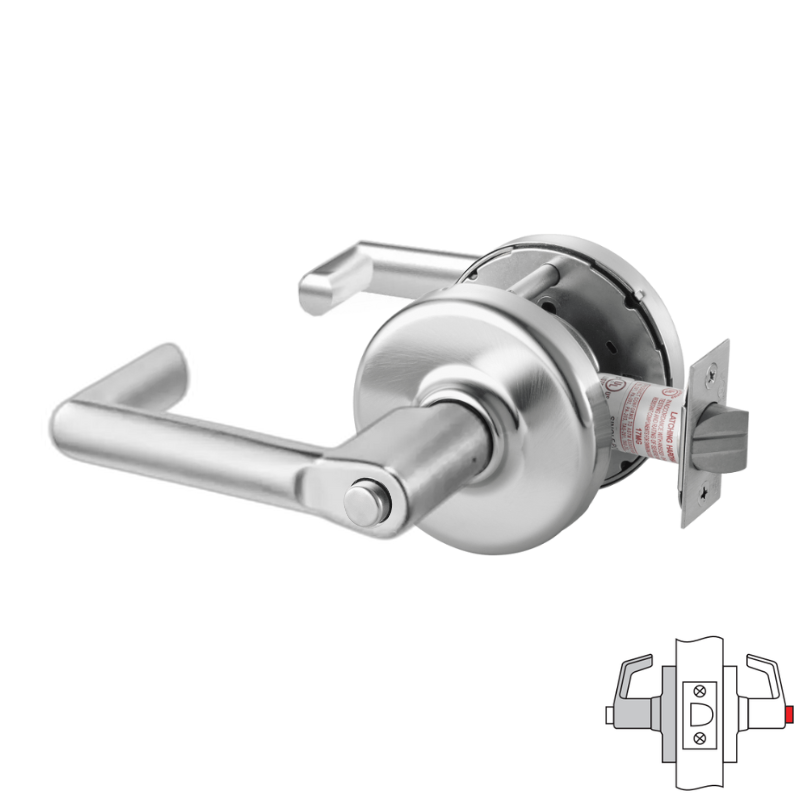

Finish: US26D-626 Satin Chrome

Corbin Russwin CLX3320H-123D Hospital Privacy Function Cylindrical Lever Lockset, Salvador 123D Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 1, Non-Handed

The Corbin Russwin CLX3320H-123D hospital privacy function cylindrical lever lockset features the Salvador 123D lever, with a 2-3/4" backset and 4-7/8" strike. This non-keyed, Grade 1, non-handed lockset is designed for use in healthcare settings.

Function: Hospital Privacy

  • Outside lever locked by inside push button (lever handle is freewheeling in locked position)
  • Outside lever unlocked by simultaneously depressing outside pushbutton while rotating lever
  • Rotating inside lever or closing door also unlocks outside lever
  • Outside lever handle is freewheeling when locked
    Manufacturer Corbin Russwin
    SKU CLX3320H-123D
    Grade Grade 1
    Installation Commercial
    Origin United States
    Unit of Measure Each
    Base Material Brass, Bronze
    UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
    Limited Warranty 20 Year Limited Warranty
    Fire Rated 3 Hours {A}
    Burglar Rated No
    Function 20H-Hospital Privacy
    Lever/Knob Design 123 - Salvador Lever
    Lever/Knob Design Family Straight Lever
    Rose/Escutcheon Design
    D Rose
    Rose/Escutcheon Dimensions 3-1/2"
    Cylinder Type Non-Keyed
    Handing Non-handed
    Door Thickness 1-3/4" to 2"
    Std. Latch Number 867F20
    Std. Latch Type Springlatch
    Std. Latch Backset Dim 2-3/4"
    Latch Bore Diameter 1"
    Lock Face Size 1-1/8" x 2-1/4"
    Bolt Projection 1/2"
    Bore Hole Diameter 2-1/8"
    Std. Strike Number SA114
    Std. Strike Type ANSI Curved Lip Strike
    Std. Strike Height 4-7/8"
    Std. Strike Width 1-1/4"
    Screws Wood/Machine Screws
    Product Type Cylindrical Lock
