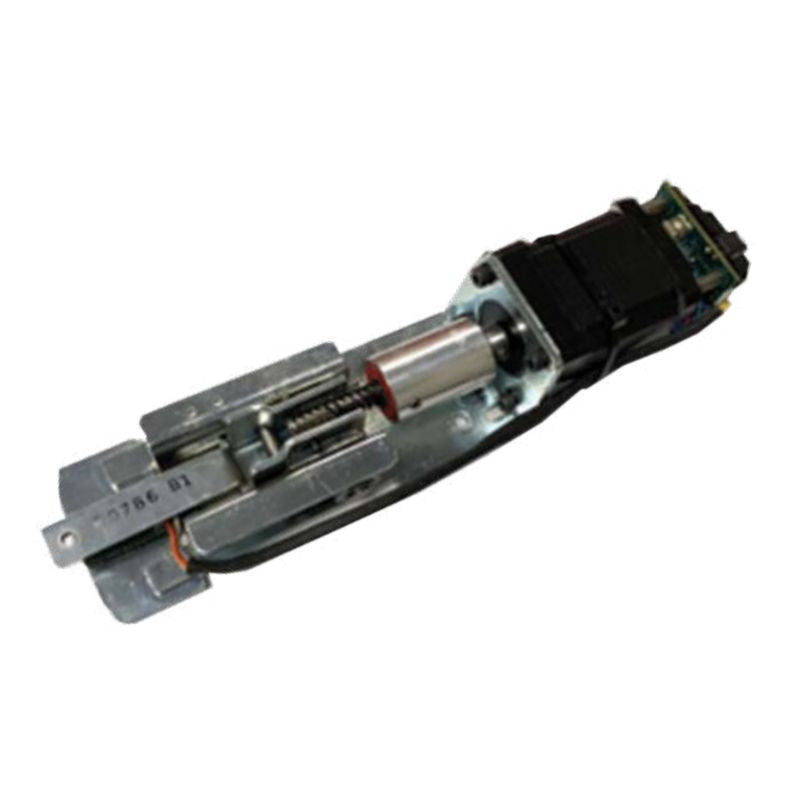

Command Access Technologies MLRK1-TEL Motor Latch Retract Kit, For Tell 9500 Series Exit Device

The MLRK1-TEL offers a practical and cost-effective solution for upgrading mechanical Tell 9500 series devices into electrified latch pullback devices. This retrofit kit preserves all UL listings on the device and comes with CAT’s 3-year no hassle warranty for added peace of mind. The unit attaches easily to the back activating bracket and secures with just two screws in seconds. Installation requires drilling only one hole for the wire raceway. Equipped with PTS technology, the kit enables smooth post-installation adjustments of the latch or latches. An optional built-in REX switch is available for all units. Additionally, it includes an updated MM4S module that offers two energy consumption settings, ranging from energy-efficient to high torque, ensuring it can handle even the most challenging tasks.

• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to a “Low Current” or “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• Push-n-Go Pigtail + 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• 3 Year “NO HASSLE” Warranty

• Work with Tell 9500 Series Exit Device
