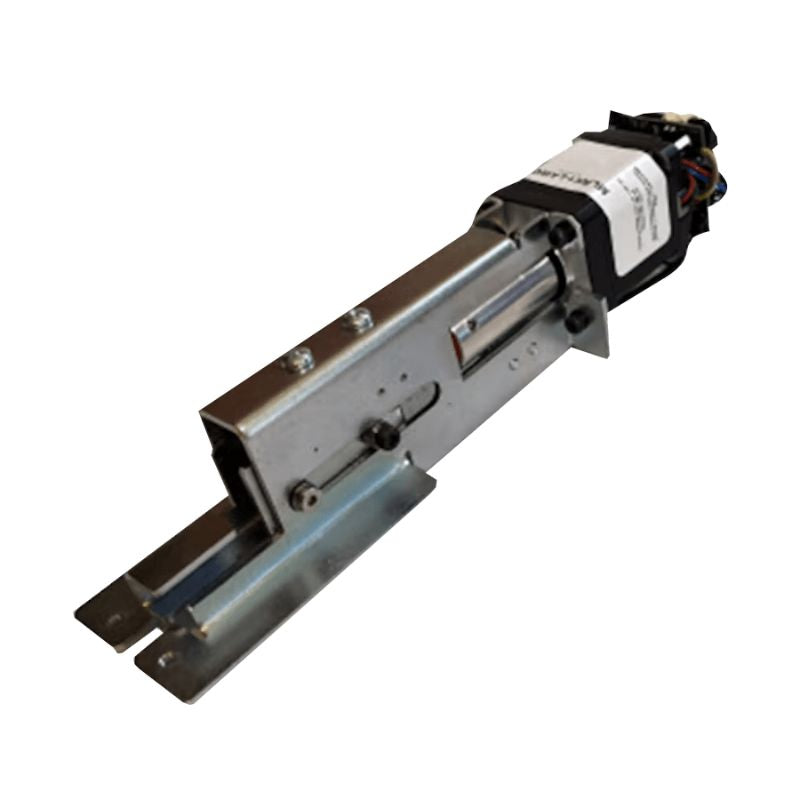

Command Access Technologies MLRK1-PDQ Motor Latch Retract Kit, PDQ 6200 Series Exit Device

The MLRK1-PDQ is a practical and cost-effective solution for converting mechanical devices from PDQ 6200 Series series into electrified latch pullback devices, while keeping their UL listing intact. This motor-driven kit is designed for quick installation, making it straightforward and swift to set up. Equipped with PTS technology, it allows for easy post-installation adjustments of the latch or latches. Moreover, the kit includes an upgraded MM5 module that offers enhanced torque and features the convenient 1 Touch PTS system, streamlining operation and boosting functionality.

• MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
• Request-to-exit kit available
• 3-year “no hassle” warranty

• Work with PDQ 6200 Series Series Exit Device
