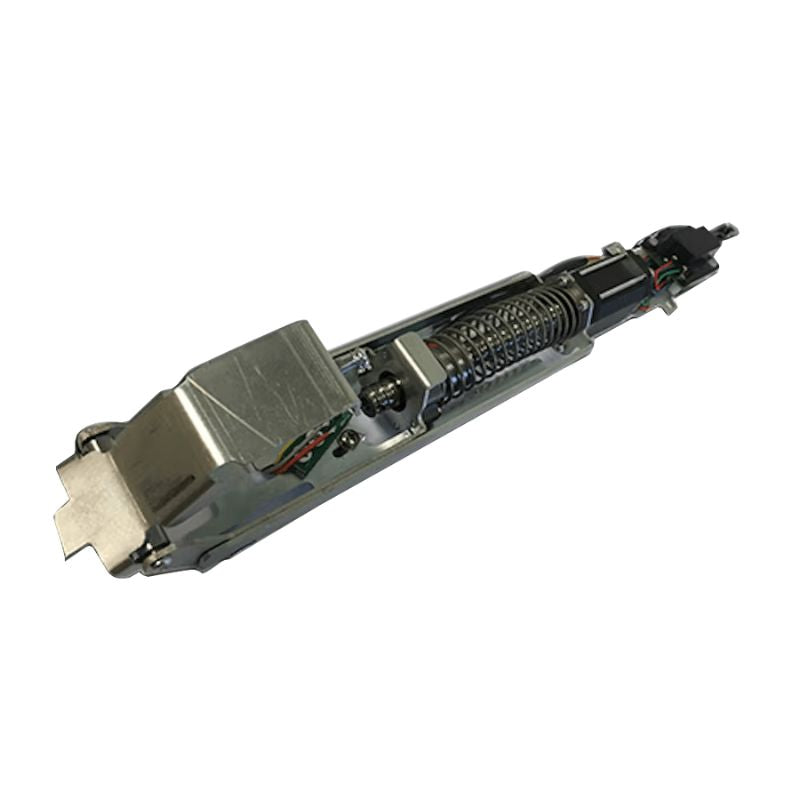

Command Access Technologies MLRK1-JAC12 15/16 Motorized Latch Retraction Retrofit Kit, Fail Secure, 24V, For Jackson 1275/1285/1295 & Kawneer 1686/1786 Series Exit Device

The MLRK1-JAC12 is a durable, easy-to-install motorized latch retraction kit designed for use with Jackson 1275/85/95, Kawneer 1686/1786, and AHT 8/9 series exit devices. This kit features a CAT-designed custom assembly that optimizes the pulling force for effective operation. Installation is straightforward, requiring only a single hole for the raceway. The kit incorporates our latest 1 TOUCH PTS "Push to Set" technology, simplifying the post-installation adjustment process and ensuring a seamless setup.

• Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• 1 Touch “PTS”: Quick & easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8” cable with Robust Quick Molex Connector for MM5 module to connect to incoming power.
• 3-year “No Hassle” Warranty

• Work with Jackson 1275/1285/1295, Kawneer 1686/1786 Series Exit Device
