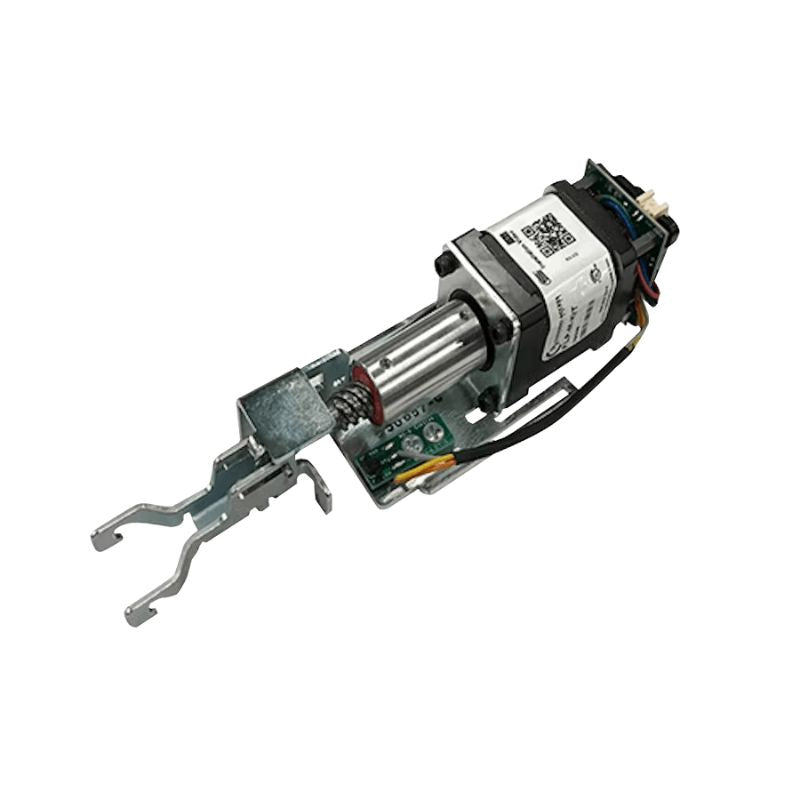

Command Access Technologies MLRK1-FAL25 Motorized Latch Retraction Kit, For Falcon 24/25 Series Exit Device

The MLRK1-FAL25 provides a practical and cost-effective solution for converting a mechanical Falcon 24/25 series device into an electrified latch pullback device. This motor-driven kit is remarkably easy to install, requiring no drilling or screws—truly a "drop-in" solution that sets up in seconds. It features PTS technology for straightforward post-installation adjustment of the latch or latches. A built-in REX switch is standard on all units, enhancing functionality. Additionally, the kit includes an updated MM4S module that offers two energy consumption settings, ranging from energy-efficient to high torque, ensuring it can handle even the most demanding tasks efficiently.

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• Request-to-exit kit available
• 3-year “no hassle” warranty

• Work with Falcon 24/25 Series Exit Device
