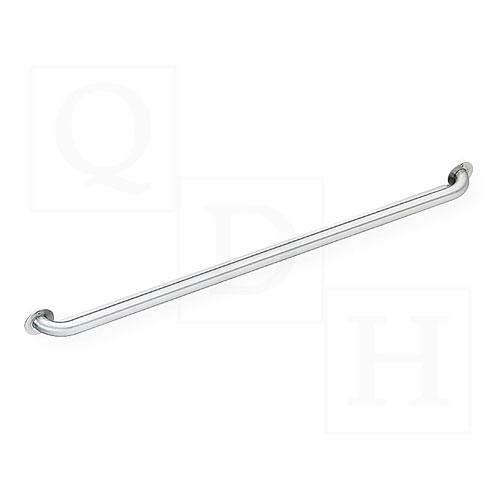

Flanges: 3 1/8" dia. 11 gauge stainless steel, with exposed surfaces in architectural satin finish Tubing: 1 1/2" O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. Bent ends of tubing pass through the flanges and are welded into a single structural unit for maximum strength. Intermediate supports are contour cut and joined by welding to form an integral part of the grab bar. All welds ground and polished to blend. Mandrel bending process maintains uniform bar diameter. Return provides 1 1/2" standard safety clearance between wall and bar Closure Plate:11 gauge stainless steel
Installation:
Verify all rough-in dimensions prior to installation. Use bar as template to locate mounting holes. Unit supplied with 1/4" - 20 x 1 1/2" T27 torx head machine screws for installation to wall anchors (not included)
Size:
SA70-00136: 36" long SA70-00142: 42" long
Weight:
SA70-00136: 6.00 lbs SA70-00142: 6.00 lbs
Manufacturer:
Bradley
Certifications
Barrier-Free Code Compliance:
Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.)
