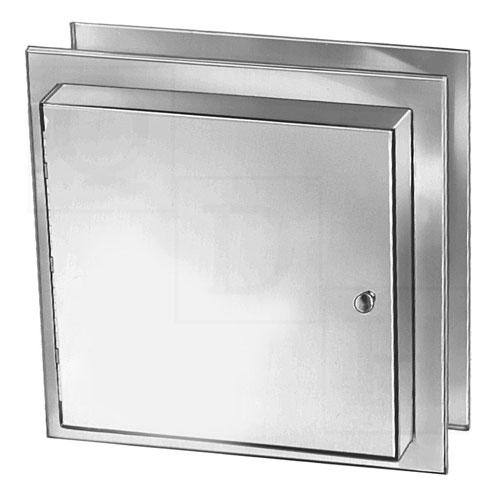

Bradley 9813 Specimen Pass-Thru Cabinet, The 9813 Is a Specimen pass-thru cabinet fabricated of stainless steel with 20 gauge doors and all exposed surfaces in satin finish. Removable stainless steel spill tray.
Features
Satin finish Stainless Steel
Adjusts from 3" to 5-1/2" wall thickness only
Interlocking mechanism allows only 1 door open at a time
BradEX ®
Specifications
Materials:
Cabinet:18 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges Flanges:22 gauge stainless steel with exposed surfaces in architectural satin finish. Flange of one-piece seamless construction, 1" wide with 1/4" return Doors: 20 gauge stainless steel with exposed surfaces in architectural satin finish. Equipped with full-length stainless steel piano spring hinge and chrome plated brass pull knob. Doors are self-closing Inter-Lock Mechanism: prevents both doors from being open at same time Spill Tray: heavy-duty, 22 gauge stainless steel with soldered seams to prevent leakage
Installation:
Verify all rough-in dimensions prior to installation. Requires rough wall opening of 11 5 /8" w x 10 7 /8" h. Adjusts to wall thickness of 3" to 5 1/2". Remove one flanges and slip unit into wall. Replace flanges and secure to cabinet with concealed mounting screws (included) at holes provided. Tighten screws holding opposite flanges
Operation:
Special interlock mechanism permits only one door to open at a time. Spill tray removes for cleaning
