Description

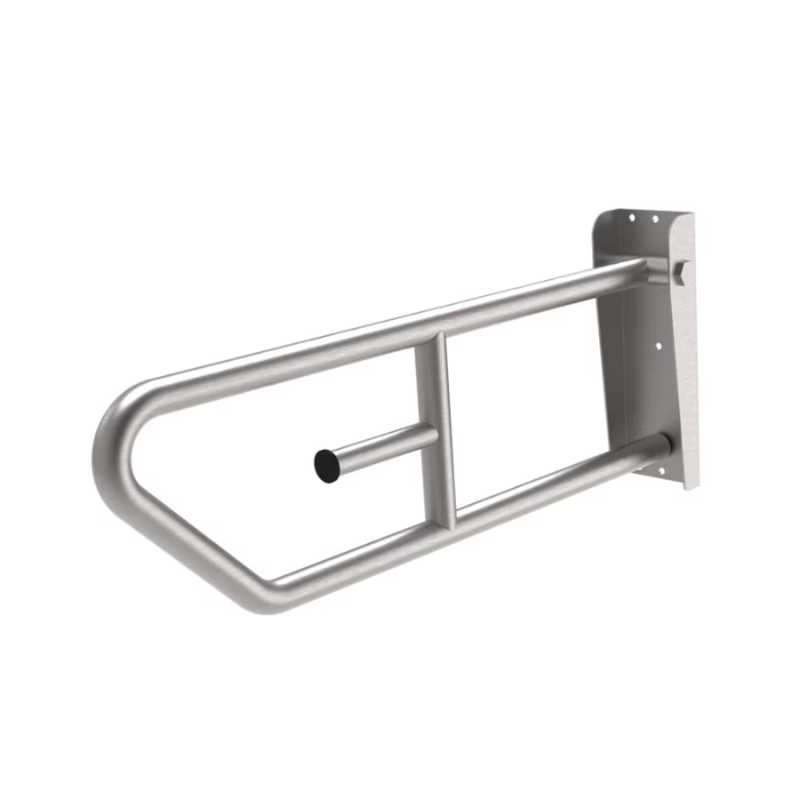

Bradley 8370-108 Heavy Duty Swing Up Grab Bar, With Tissue Dispenser, 1 1/4 Inch Dia, 30 1/8 Inch Long, See Dim Dwg, Satin Stainless Steel
The Bradley 8370-108 Heavy Duty Swing Up Grab Bar includes an integrated tissue dispenser and measures 1 1/4 inches in diameter by 30 1/8 inches in length. Constructed from satin stainless steel, it combines strength with functionality. Please consult the dimensional drawing for exact specifications.
Product Materials TUBING: 1¼" O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. All welds ground and polished to blend. Mandrel bending process maintains uniform bar diameter. WALL PLATE: 12-gauge stainless steel with exposed surfaces in architectural satin finish. Concealed mechanism holds bar up and out of the way. Strength When properly mounted, all Bradley heavy-duty grab bar systems meet or exceed the requirements of ANSI Standard A117.1, the ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG), and the Uniform Federal Accessibility Standard (UFAS). Meets CT code 1109.2.4. Grab bar has been tested to support a vertical force of up to 250 pounds. Wall must be reinforced in the area of the grab bar in order to support the load it is intended to support. Operation Grab bar is manually lowered to horizontal support position and raised for departure. Bar is designed to prevent it from accidentally falling into position. Bar operates with less than 5 pounds of force. ADA Compliant Complies with ADA Standards for Grab Bars (609.2, 609.4, 609.8) and Operable Parts (309.4). Consult local and national accessibility codes for proper installation guidelines. Conformity and compliance to local and national codes is the responsibility of theInstallation Verify all rough-in dimensions prior to installation. Secure to wall where adequate in-wall backing exists. Use bar as template to locate mounting holes. Drill holes and set anchors as appropriate. Mount grab bar and secure mounting screws. Mark point of contact with wall when bar is in raised position. Secure bumper to wall with screw at this point.
Technical Specs
| Type: | Swing-Up Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Exposed |
| Outside Diameter: | 1-1/4" |
| Rated Width: | Not Applicable |
| Rated Length: | 30" |
| Grip Type: | Smooth |
| Finish / Color: | Satin |
| Load Capacity: | Up to 250 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 30-1/8" Wide x 9-1/2" Tall x 6" Deep |
| Manufacturer Model No.: | 8370-108000 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
