Description

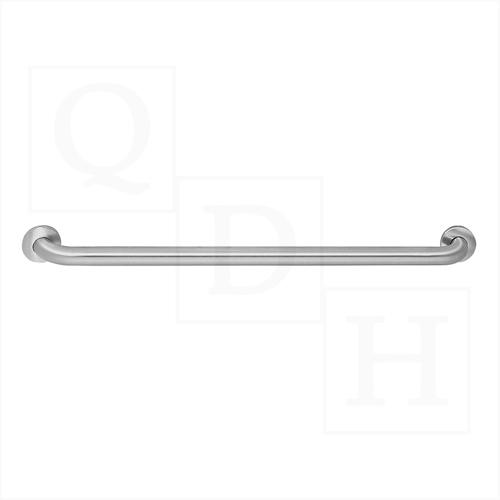

1 1/2" O.D. heavy-duty stainless steel grab bar with concealed mounting
Features
- 1-1/2" O.D
- Concealed Mounting
- Heavy Duty Stainless Steel
Specifications
| Materials: |
Flanges: 3 1/8" dia. 13 gauge stainless steel Escutcheons: 22 gauge stainless steel. One-piece drawn construction with exposed surfaces in architectural satin finish. Snap over flanges to conceal mounting screws Tubing: 1 1/2" O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. Bent ends of tubing pass thru the flanges and are welded for maximum strength. Intermediate supports are contour cut and joined by welding to form an integral part of the grab bar. All exposed welds ground and polished to blend. Mandrel bending process maintains uniform bar diameter. Return provides 1 1/2" standard safety clearance between wall and bar |
| Installation: | Verify all rough-in dimensions prior to installation. Secure to wall where adequate in-wall backing exists. Use bar as template to locate mounting holes. Drill holes and set anchors as appropriate. Mount grab bar and secure mounting screws. Snap escutcheons into place |
| Size: | 8120-001180: 1-1/2" OD X 18 8120-001240: 1-1/2" OD X 24 8120-001300: 1-1/2" OD X 30 8120-001360: 1-1/2" OD X 36 8120-001420: 1-1/2" OD X 42 8120-001480: 1-1/2" OD X 48 |
| Weight: | 8120-001180: 1.54 lbs 8120-001240: 1.99 lbs 8120-001300: 2.30 lbs 8120-001360: 3.00 lbs 8120-001420: 3.36 lbs 8120-001480: 3.40 lbs |
| Manufacturer: | Bradley |
Certifications
| ANSI: | Standard A117.1 Complaint |
| ADA/ABA: | Complies with Accessibility Guidelines for Buildings and Facilities (ADAAG) |
| UFAS: | Complies with Uniform Federal Accessibility Standard |
