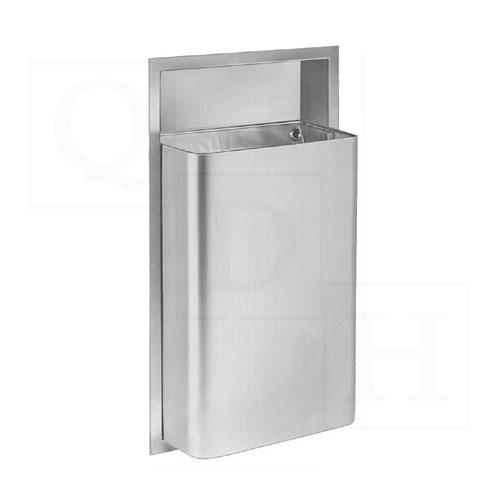

Recessed waste receptacle shall be fabricated of heavy gauge stainless steel with seamless exposed surfaces in satin finish. Removable 12-gal. stainless steel waste receptacle secured to cabinet with tumbler lock. Heavy duty vinyl liner is optional
Features
Satin finish Stainless Steel
Waste container projects 4-3/4"
Recessed
BradEX ®
Specifications
Materials:
Flange: 22 gauge stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with 1/4" return. Cabinet:heavy gauge stainless steel. All welded construction. Waste Container: 22 gauge stainless steel. All welded construction. Secured to cabinet with tumbler lock keyed like other Bradley units. Liner: (optional) heavy-duty stitched vinyl-coated nylon. Hinged Cover:(optional) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy-duty stainless steel piano hinge. Push Flap Door:(optional) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy-duty stainless steel piano hinge. Self-closing flap door is embossed PUSH
Operation:
Receptacle removable for servicing by unlocking waste container
Installation:
Verify all rough-in dimensions prior to installation. Recessed unit requires rough wall opening 15-5/8" w x 29-1/8" h x 4"d (Semi-recessed unit only 2" deep). Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required.
Size:
17-1/8" (435mm) w x 30-5/8" (777mm) h x 8-3/4" (223mm) d
Capacity:
12 gal. (1.6 cu. ft.)
Manufacturer:
Bradley
Certifications
Barrier-Free Code Compliance:
Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.)
