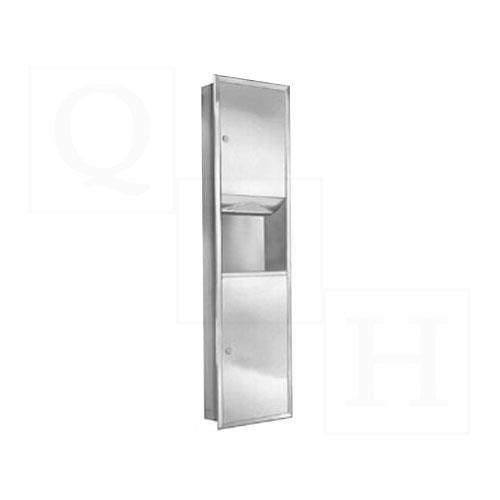

Bradley 235 Medium Capacity Towel Dispenser With 4.9 Gallon Waste Recessed, With Round Corners.
The Bradley 235 Recessed combination towel dispenser and waste receptacle shall be fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. Cabinet doors of warp-free construction, equipped with full length piano hinge and secured by tumbler lock.
Features
- Satin finish Stainless Steel
- Holds 800 multi-fold or 500 C-fold paper towels
- 4.9 gallon waste capacity
- Recessed
- BradEX ®
Specifications
| Materials: |
Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges.
Flange:22 gauge stainless steel with exposed surfaces in architectural satin finish. One piece seamless construction, 1" wide radiused corners with 1/4" return
Doors:18 gauge stainless steel. Warp resistant, with full length piano hinge and tumbler lock keyed like other Bradley units
Towel Dispenser:22 gauge stainless steel. Rolled edge on dispenser opening
Waste Container Insert: leakproof molded plastic
|
| Operation: |
Towel dispenser holds multi-fold or C-fold towels without use of special adaptor. Waste receptacle insert removable for easy servicing by unlocking waste container |
| Installation: |
Verify all rough-in dimensions prior to installation. Recessed unit requires rough wall opening 15-3/4" w x 54-5/8" h x 4" d (Semi-recessed unit only 2" deep). Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required. Surface-mounted units must have holes drilled by installer |
| Size: |
17-1/8" (435mm) w x 56" (1422mm) h x 4" (102mm) d |
| Capacity: |
Towel Dispenser 800 multi-fold or 500 C-fold paper towels
Waste Receptacle Insert 4.9 gal. (0.65 cu. ft.)
|
| Manufacturer: |
Bradley |
Certifications
| Barrier-Free Code Compliance: |
Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
