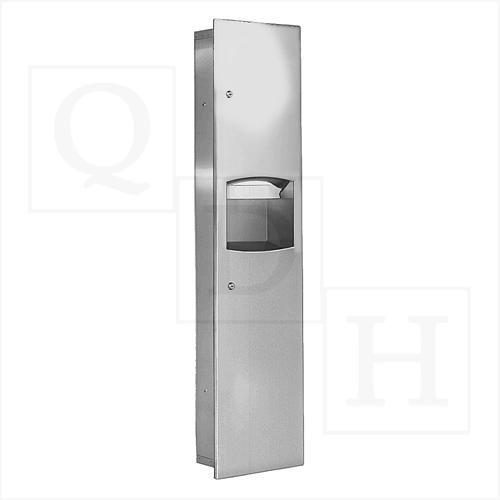

Bradley 2017 High Capacity Towel Dispenser 4.9 Gallon Recessed Waste Receptacle combination towel dispenser and waste receptacle shall be fabricated of heavy gauge stainless steel with exposed surfaces in satin finish. Cabinet door of 18 gauge stainless steel with full length concealed piano hinge and secured by 2 tumbler locks
Features
Recess Mounted
1100 single-fold, 800 multi-fold or 600 C-fold paper towels
Satin-finish Stainless Steel
4.9-gallon waste capacity
BradEX ®
Specifications
Materials:
Cabinet:22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges Door: 18 gauge stainless steel, 1/2" return for maximum rigidity. Concealed full-length stainless steel piano hinge, 2 tumbler locks keyed like other Bradley units Towel Dispenser: 22 gauge stainless steel. Rolled edge on dispenser opening Waste Receptacle Cover:22 gauge stainless steel. The spring hinge provides for self-closure Waste Receptacle Insert: leakproof molded plastic
Operation:
The towel dispenser holds single-fold, multi-fold, or C-fold towels with the use of a special adaptor. Waste receptacle insert removable by opening cabinet door
Installation:
Verify all rough-in dimensions prior to installation. The recessed unit requires a rough wall opening 11-3/4" w x 53-5/8" h x 5-3/4" d. Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required
Size:
13" (330mm) w x 55" (1397mm) h x 6" (152mm) d
Capacity:
Towel Dispenser 1100 single-fold, 800 multi-fold, or 600 C-fold paper towels. Waste Receptacle Insert 4.9 gal. (.65 cu. ft.)
Manufacturer:
Bradley
Certifications
Barrier-Free Code Compliance:
Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.)
