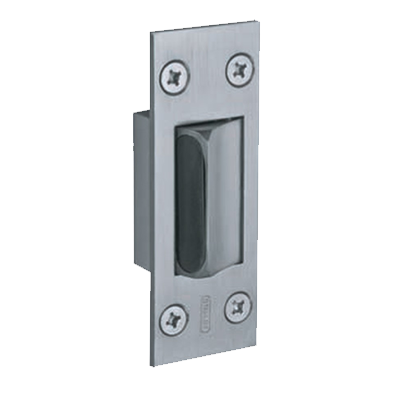

Best (Formerly Stanley) ES-1 US26D Extruded and Cast Brass, for Converting Double Acting Doors to Single Acting Doors, Emergency Release Allows Door to Swing Open in Opposite Direction, Stop Release Resets Automatically, US26D/626 Satin Chrome Finish
Hospital Emergency Rescue Hardware For applications having doors that lead from patient rooms to private baths. Permits door to normally swing into the bath, thus saving space, yet swing out into the bedroom in case of emergency when a patient is trapped inside
Features Best ES-1 US26D Emergency Door Stop
- For converting double acting doors to single-acting doors
- The emergency release allows the door to swing open in opposite direction to reach ill patients who fall and block the normal path of the doorStop release resets automatically. Spring action stop, with the finger-tip release, using Pullman-type latch bolt with rubber bumper insert
Specifications Stanley ES-1 US26D Emergency Door Stop
Surface plate: |
4 1/2" x 1-5/8" (114mm x 41mm) |
Bolt height: |
2" (51mm) |
Case: |
2 1/8" x 15/16" (54mm x 33mm) |
Flat Head Screws: |
4 12-24 x 1/2 brass machine screws |
