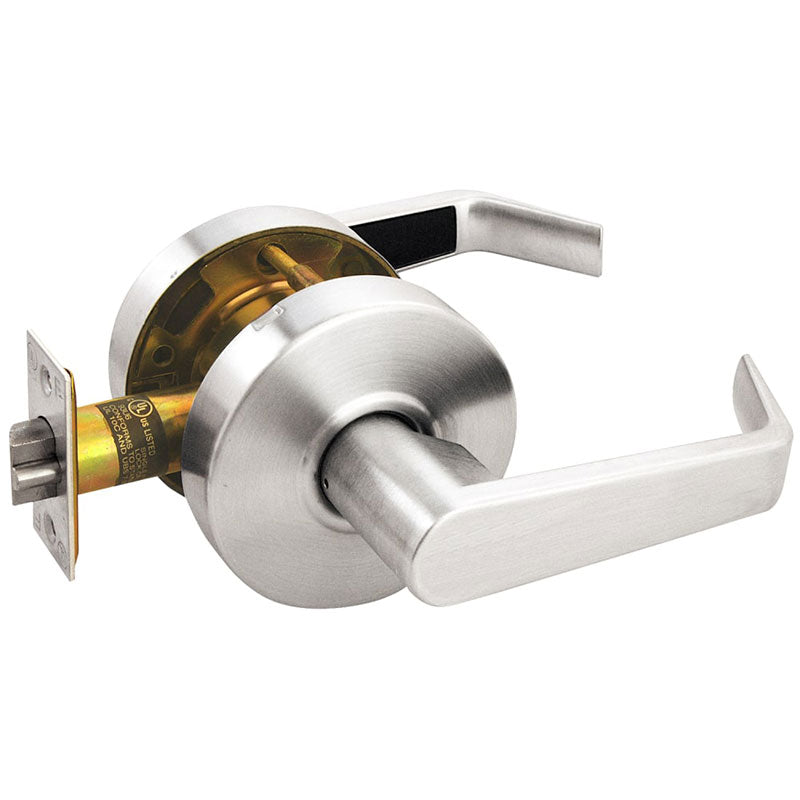

Arrow RL01-SR-US26, Passage Cylindrical Lock, Sierra Lever, Non-Keyed, Grade 2, 625 Bright Chrome Finish, Non-handed.

  • SKU: RL01SR26
Arrow RL01-SR-US26, Passage Cylindrical Lock
All ARROW Products

Arrow RL01-SR-US26, Passage Cylindrical Lock, Sierra Lever, Non-Keyed, Grade 2, 625 Bright Chrome Finish, Non-handed.

  • SKU: RL01SR26
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 440.00/ea

Arrow RL01-SR-US26, Passage Cylindrical Lock, Sierra Lever, Non-Keyed, 2 3/4 BS, 4 7/8" Strike, Grade 2, 625 Bright Chrome Finish, Non-handed.

Passage, Closet - F75

  • Latchbolt operated by lever either side

The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.

Manufacturer Arrow
SKU RL01-SR-26
Grade Grade 2
Installation Commercial
Origin Taiwan
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 Series 4000, Grade 2, UL Listed
ANSI Number F75
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 625/US26
Finish Description Bright Chrome
Finish Family Polished Silver
    Function 01 Passsage
    Function Family Passage
    ANSI Function
    F75 - Passage
    Lever/Knob Design Sierra Lever
    Lever/Knob Design Family Return Lever
    Rose/Escutcheon Design
    3-3/8" Rose Diameter
    Rose/Escutcheon Dimensions 3-3/8"
    Cylinder Type
    Non-Keyed
    Handing Non-handed
    Door Thickness 1-3/8" to 1-3/4"
    Std. Latch Number R73
    Std. Latch Type Spring latch
    Std. Latch Backset Dim 2-3/4"
    Latch Bore Diameter 7/8"
    Lock Face Size 1-1/8" x 2-1/4"
    Bolt Projection 1/2"
    Bore Hole Diameter 2-1/8"
    Std. Strike Number R62
    Std. Strike Type ANSI Strike
    Std. Strike Height 4-7/8"
    Std. Strike Width 1-1/4"
    Screws Wood/Machine Screws
    Product Type Cylindrical Lock
    Product Cut Sheet
