Arrow QL82-SR-26D Storeroom Lever Lock, Sierra Lever, Key in Lever Cylinder, A Keyway, Non-Handed, Satin Chrome

  • SKU: QL82SR26D

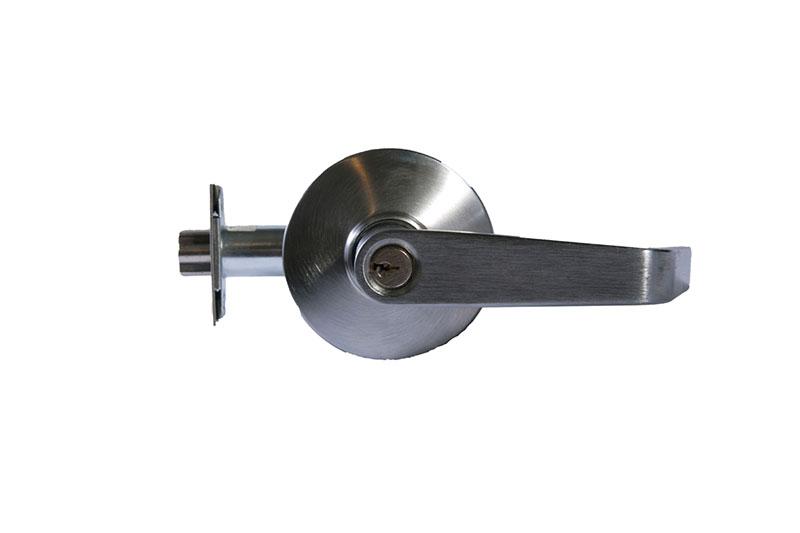

Arrow QL82 SB 26D Storeroom Lever Lock
Arrow QL82 SB 26D Storeroom Lever Lock
All ARROW Products

Arrow QL82-SR-26D Storeroom Lever Lock, Sierra Lever, Key in Lever Cylinder, A Keyway, Non-Handed, Satin Chrome

  • SKU: QL82SR26D
Dhs. 970.00/ea
In Stock
In Stock

The Arrow QL82-SR-26D is a Storeroom Lever Lock, with a Sierra Lever, a Key in Lever Cylinder, an A Keyway, a Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 1 and comes in Satin Chrome finish.

Storeroom or Closet - F86

  • Outside lever always rigid
  • Latchbolt operated by key in outside lever, or by turning inside lever


The Arrow QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation, and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.



Manufacturer Arrow
SKU QL82-SR-26D
Grade Grade 1
Installation Commercial
Origin South Korea
Unit of Measure Each
UL Listing Type UL 10C
ANSI Number A156.2, Series 4000, Grade 1
Restrictions None
BAA Qualified No
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver
Function 82 Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design Sierra Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-11/32" Rose Diameter
Cylinder Type Key in Lever Cylinder
Keyway A Keyway
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-Handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bore Hole Diameter 2-1/8"
Std. Strike Number 306
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Dust Box None
Screws Combination
Product Type Cylindrical Lock
