Description

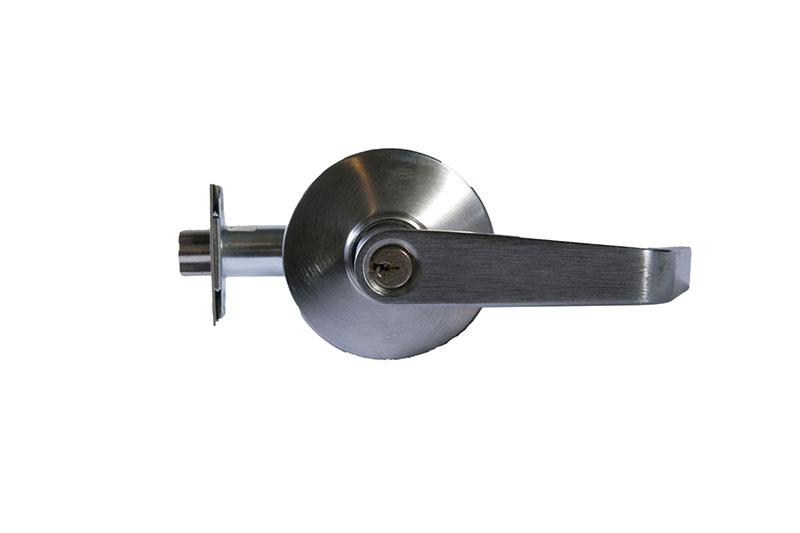

The Arrow QL82-SR-26D-CS is a Storeroom Lever Lock, with a Sierra Lever, a Key in Lever Cylinder, with a Schlage C Keyway, is Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 1, and comes in Satin Chrome finish.
Storeroom or Closet - F86
- Outside lever always rigid
- Latchbolt operated by key in outside lever, or by turning inside lever
The Arrow QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation, and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
Product Specs
| Manufacturer | Arrow |
| SKU | QL82-SR-26D-CS |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | South Korea |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2, Series 4000, Grade 1 |
| Restrictions | None |
| BAA Qualified | No |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Function | 82 Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | Sierra Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-11/32" Rose Diameter |
| Cylinder Type |
Key in Lever Cylinder |
| Keyway | Schlage C Keyway |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 306 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
