Arrow QL02-SR-26D Privacy Lever Lock, Sierra Lever, Non-Keyed, Non-Handed, Satin Chrome

  • SKU: QL02SR26D

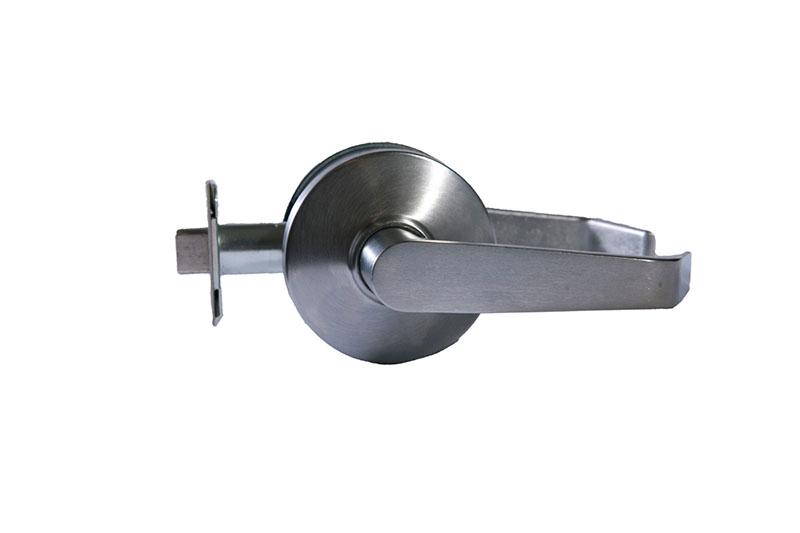

Arrow QL02 SB 26D Privacy Lever Lock
Arrow QL02 SB 26D Privacy Lever Lock
All ARROW Products

Arrow QL02-SR-26D Privacy Lever Lock, Sierra Lever, Non-Keyed, Non-Handed, Satin Chrome

  • SKU: QL02SR26D
Dhs. 899.00/ea
In Stock
In Stock

The Arrow QL02-SR-26D is a Privacy Lever Lock, with a Sierra Lever, is Non-Keyed, is  Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 1, and comes in Satin Chrome finish.

Privacy Bath/Bedroom - F76A

  • Rigid lever
  • Latch operated by lever either side except when outside lever is locked by pushing inside button
  • Outside lever unlocked by turning inside lever, using emergency key, or closing door
  • Inside lever always operates latch

The Arrow QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation, and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Manufacturer Arrow
SKU QL02-SR-26D
Grade Grade 1
Installation Commercial
Origin South Korea
Unit of Measure Each
UL Listing Type UL 10C
ANSI Number A156.2, Series 4000, Grade 1
Restrictions None
BAA Qualified No
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver
Function 02 Privacy
ANSI Function F76 - Privacy
Lever/Knob Design Sierra Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-11/32" Rose Diameter
Handing Non-Handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Type Spring Latch (Unguarded)
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bore Hole Diameter 2-1/8"
Std. Strike Number 306
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Dust Box None
Screws Combination
Product Type Cylindrical Lock
Product Cut Sheet
