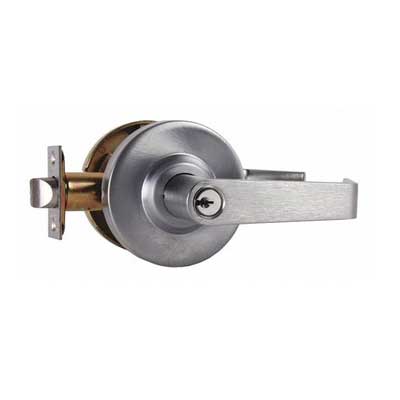

The Arrow MLX81-SR-26D-CS is an Entrance Office Lever Lock, with a Sierra Lever, has a Key in Lever Cylinder, a Schlage C Keyway, is Non-Handed, a 2 3/4" Backset, a 4 7/8" Strike, is Grade 2 and comes in Satin Chrome finish.
Entrance or Office - F109
- Latchbolt operated by lever either side except when outside lever is locked by turn-button inside
- When outside lever is locked, latchbolt operated by key outside or turning inside lever
- Inside button must be manually released
The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications. The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation, and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
Product Specs
Manufacturer |
Arrow |
SKU |
MLX81-SR-26D-CS |
Grade |
Grade 2 |
Installation |
Commercial |
Origin |
South Korea |
Unit of Measure |
Each |
UL Listing Type |
UL 10C |
ANSI Number |
A156.2, Series 4000, Grade 2 |
Restrictions |
None |
BAA Qualified |
No |
Limited Warranty |
10 Years |
Fire Rated |
3 Hours {A} |
Burglar Rated |
No |
ADA Compliance |
Yes |
Finish |
626/US26D
|
Finish Description |
Satin Chrome |
Finish Family |
Matte Silver |
