Arrow GL01-SR-26D Passage Lever Lock, Sierra Lever, Non-Keyed, Non-Handed, Satin Chrome Finish

  • SKU: GL01SR26D
Arrow GL01SR 26D Passage Lever Lock
All ARROW Products

Arrow GL01-SR-26D Passage Lever Lock, Sierra Lever, Non-Keyed, Non-Handed, Satin Chrome Finish

  • SKU: GL01SR26D
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 923.00/ea

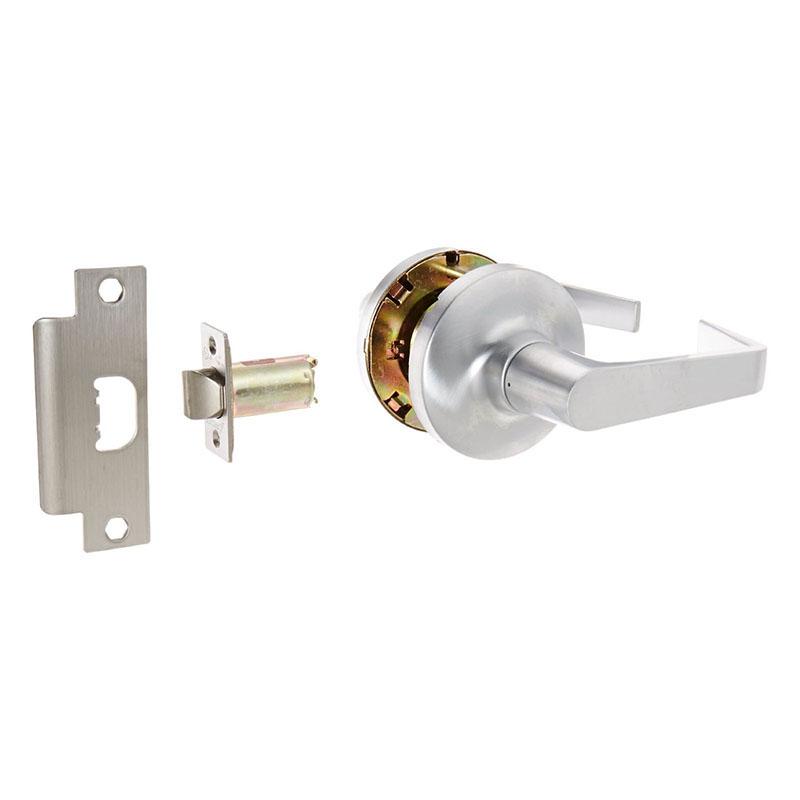

The Arrow GL01-SR-26D is a Passage function Lever Lock, that has a Sierra Lever, is Non-Keyed, is Non-Handed, has a 2 3/4" backset, a 4 7/8" standard strike, and comes in Satin Chrome Finish.

Passage, Closet - F75

  • Latchbolt operated by lever either side

Arrow GL Series Grade 1 heavy-duty levers offer an economically pleasing solution for ADA compliance. The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier-to-install system. Simply put, the GL Series will be your number-one choice when economy is your first priority.



Manufacturer Arrow
SKU GL01-SR-26D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type BHMA A156.2, Series 4000, Grade 1, UL Listed
ANSI Number F75
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver



Function 01 - Passage
Function Family Passage
ANSI Function F75 - Passage
Lever/Knob Design Sierra Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design \3-9/16" Rose Diameter
Rose/Escutcheon Dimensions 3-9/16"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number G73
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 306
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
