Description

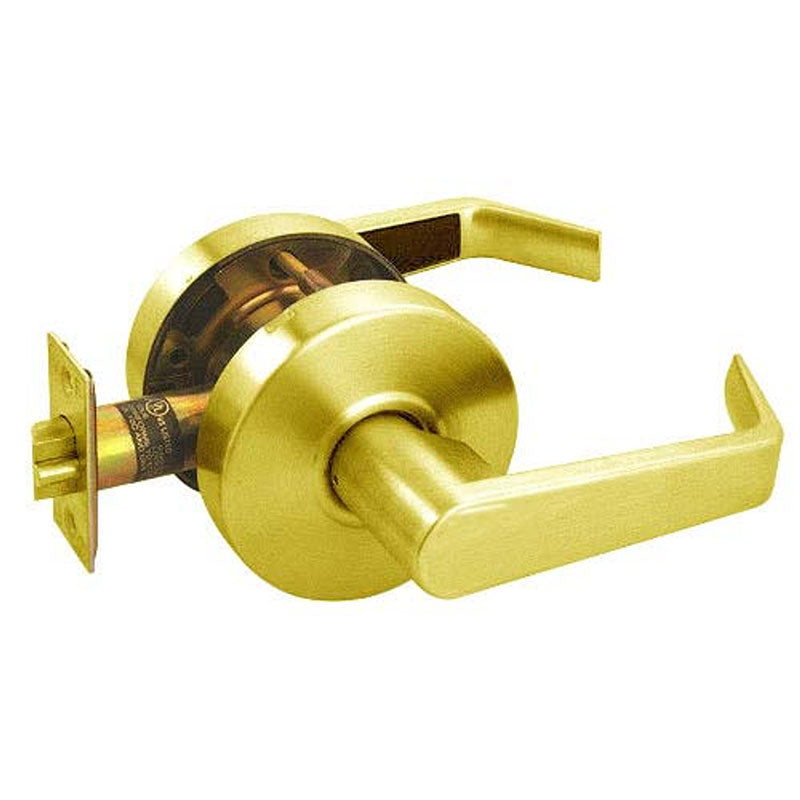

The Arrow GL01-SR-3 is a Passage function Lever Lock, that has a Sierra Lever, is Non-Keyed, is Non-Handed, has a 2 3/4" backset, a 4 7/8" standard strike, and comes in Bright Brass Finish.
Passage, Closet - F75
- Latchbolt operated by lever either side
The GL01-SR-3 Is an Arrow Cylindrical Lock The GL Series is a grade 1 heavy duty lever lock that is ADA compliant. Arrow GL Series Grade 1 heavy-duty levers offer an economically pleasing solution for ADA compliance. The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier-to-install system. Simply put, the GL Series will be your number one choice when economy is your first priority.
Product Specs
| Manufacturer | Arrow |
| SKU | GL01-SR-3 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | BHMA A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F75 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Bright Brass |
| Finish Family | Brass |
Technical Specs
| Function | 01 - Passage |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design | Sierra Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-9/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-9/16" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | G73 |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 306 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
