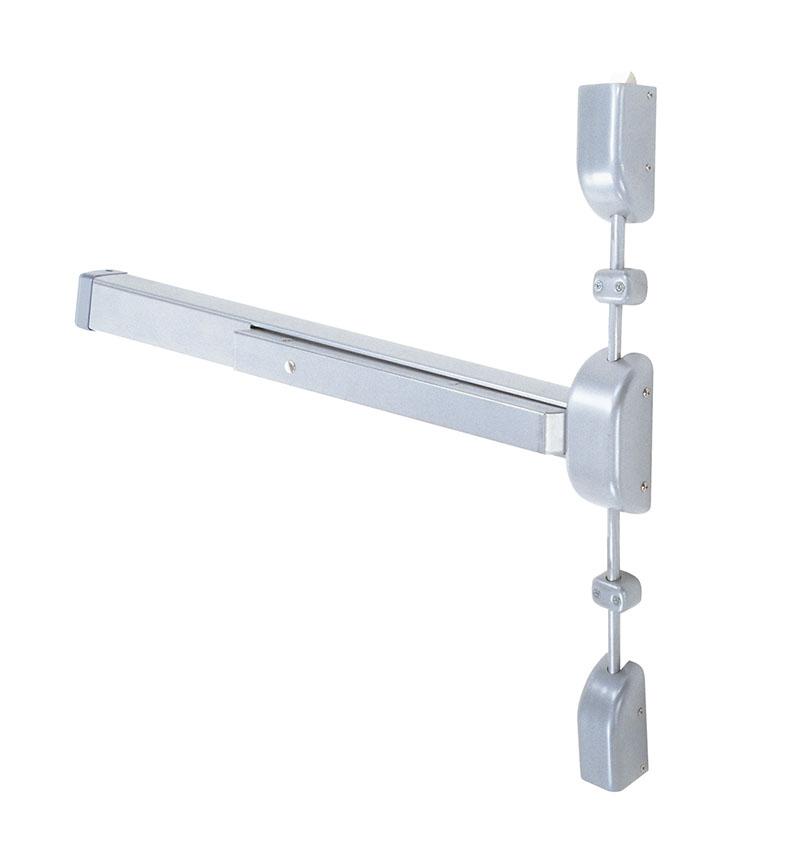

Arrow FS1150F AL Fire Rated Surface Vertical Rod Exit Device, 36"X 84", Exit Only, Wide Stile Pushpad, 1 3/4" Tk Door, Aluminum Painted, Non-Handed

Certification&Compliance:

•ANSI/BHMAA156.3, Grade1

•ANSI A117.1 Accessibility Code

•Underwriters Laboratories (UL and C UL ) listed for accident hazard (panic) standard.

• Fire Exit hardware for hollow metal doors, UL and C UL listed for 3hour, A label and lesser doors, Prefix“F” before part number.

• Fire Exit hardware for wood doors, listed up to1-1/2hour, B label doors.

• All exit devices comply with life safety code NFPA101.

• All fire-rated devices comply with fire door and window code NFPA80.

General Specifications:

S1150 S1250
Chassis & Cover Non-ferrous alloy Non-ferrous alloy
End caps Metal Metal
Doors 1-3/4" (44.45mm) thick wood or hollow metal 1-3/4" (44.45mm) thick wood or hollow metal
3-3/4" minimum stile for single doors 4-1/2" (114.3mm) minimum stile
3-1/2" (88.90mm) minimum stile for double doors 4-5/8" for fire-labeled devices
Handing Reversible Reversible
Less Dogging
Cylinder available.
Top/Bottom Bolts/ Brass 1/2" (12.7mm) throw top, 3/4" (19.05mm) throw, stainless steel
Latchbolt 3/4" (19.05mm) bottom
Through bolts Order Separately
Rail Assembly Steel Steel
Rail Size Furnished standard for doors up to 36", a standard for doors up to 36", can be cut down to accommodate 32" doors.
Alternate rail sizes are available for narrow or wide doors.
Rods 90"–extension kits available N/A
Finishes AL, BRZ, LBZ (sprayed finishes)
