All ARROW Products

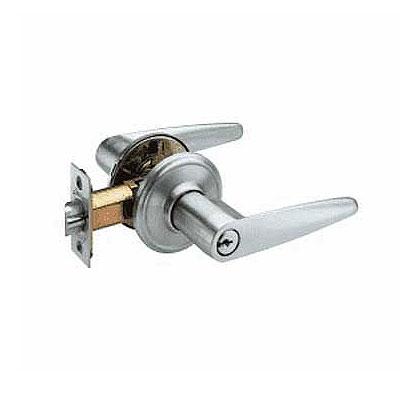

Arrow CL11SC 26D Entrance Lever Lock, SC Lever Trim Design, Conventional Core, Adjustable Backset 2 3/8" to 2 3/4", Full Lip Strike, Satin Chrome

  • SKU: CL11SC26D
Arrow CL11SC26D
Arrow CL11SC26D
All ARROW Products

Arrow CL11SC 26D Entrance Lever Lock, SC Lever Trim Design, Conventional Core, Adjustable Backset 2 3/8" to 2 3/4", Full Lip Strike, Satin Chrome

  • SKU: CL11SC26D
Dhs. 481.00/ea
In Stock
In Stock

Arrow CL11SC 26D Entrance Cylindrical Lever Lock, with SC Lever Trim Design, comes in a Satin Chrome finish. The Arrow CL11SC 26D comes with a Conventional Core, is Non-Handed, has an adjustable  2 3/8" to 2 3/4" backset, and comes with a Full Lip Strike. The CL Series is a grade 2 tubular lever lock that has exceptional value and quality.

Entrance or Office - F109

  • Rigid lever
  • Latchbolt operated by lever either side except when outside lever is locked by turn-button inside
  • When outside lever is locked, latchbolt operated by key outside or turning inside lever
  • Inside button must be manually released



Manufacturer Arrow
SKU CL11-SC-26D
Grade Grade 2
Installation Residential
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type BHMA A156.2, Series 4000, Grade 2
Limited Warranty 5 Year Warranty
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver



Function 11 Entrance
Function Family Entrance
Lever/Knob Design SC - Solar Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 2-1/2" Rose Diameter
Rose/Escutcheon Dimensions 2-1/2"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number 511
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/8" - 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 502
Std. Strike Type Full Lip Strike
Std. Strike Height 2-1/4"
Std. Strike Width 1-3/4"
Screws Wood/Machine Screws
Product Type Tubular Lock
Product Cut Sheet
