Description

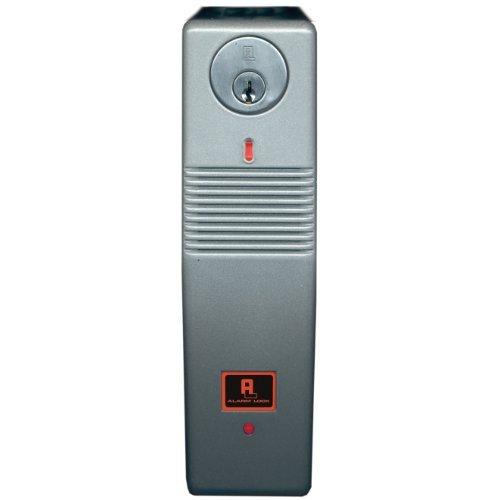

Alarm Lock PG21MS Metallic Silver Finish Narrowstile Door Alarm
The PG21MS Door Alarm includes advanced narrow-stile microprocessor-controlled door alarms for surface mounting on a door or door frame
Typical applications include emergency fire escape doors, nursing home stairwell doors, rear restaurant and theater doors
Features
- Two selectable arming modes:
- Always armed mode - when key is turned counter clockwise to the disarm position, the key cannot be removed. To remove key, turn back to arm mode, thus keeping unit armed always
- Standard arming mode - when key is inserted turning counter clockwise will disarm and key can be removed. Turning key clockwise will arm and key can be removed
- Continuous power with the addition of an external power supply
- Multiple door monitoring permitted with built-in external reed switches
- Status Indicator - The LED will indicate RED when armed
- Entry Delay Time Options - include 15 seconds, 1 minute 15 seconds & 3 minutes 15 seconds
- Sleek model design key-activated door alarm for use on standard size and narrow stile doors
- Unauthorized use of door causes alarm to sound and activates LED indicator
- Options include continuous alarm, minute shutdown with auto reset and exit/entry delay
- Uses standard mortise cylinder
- Tamper switch supervised
- For exterior key control, optional RIM cylinder may be used
- Metallic Silver finish
- CEM Mortise cylinder for interior arming/disarming
- CER Rim cylinder for exterior arming/disarming
Specifications
Dimensions: | 9" x 2 1/2" x 2 3/8" (22.8cm x 6.3cm x 6.8cm) (LxWxD) (Length 11" with Strobe) |
Power Requirements: | 9-Volt Alkaline Battery (supplied) |
Sound Device: | Piezo electronic sounder sweep siren, steady or pulsing, 110dB at 10 feet |
Relay Contacts: | (Form-C) rated at 24VAC/DC at 1A (noninductive) |
Warranty: | 2-Year Limited Warranty |
Certifications
ANSI/BHMA: | Grade 1 |
