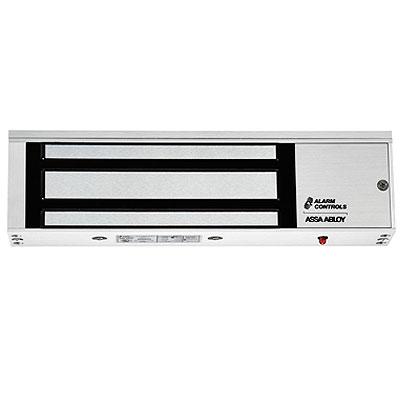

Alarm Controls 600LB Magnetic Lock 628 Aluminum Finish
The Alarm Controls 600LB Magnetic lock has a 600 lbs holding force and comes in US28 Clear anodized Aluminum finish, The Magnet size: 9-7/8" L x 1-11/16" H x 1" W with an Armature size: 7-1/4" L x 1-1/2" H x 1/2" W and Operates on 12 or 24 VDC, switch selectable with a Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC and Operating temperature: +14 to +131F [-10 to +55C] the Sensors have SPDT 3A relay contacts and has a UL 10C, UL 294 and ULC-S104 (Canada) listed
Product Features Alarm Controls 600LB Magnetic lock
- Bond sensor and door status sensor signal a powered and securely locked door
- Self-drilling TEC screws
- Built-in arc suppression
- Instant release, no hysteresis
- E-Z mount system, no special tools required
- Bi-colored status LED
- Limited lifetime warranty
